Fixaball Chemical Anchor Resin Studs Galvanised Steel JCP

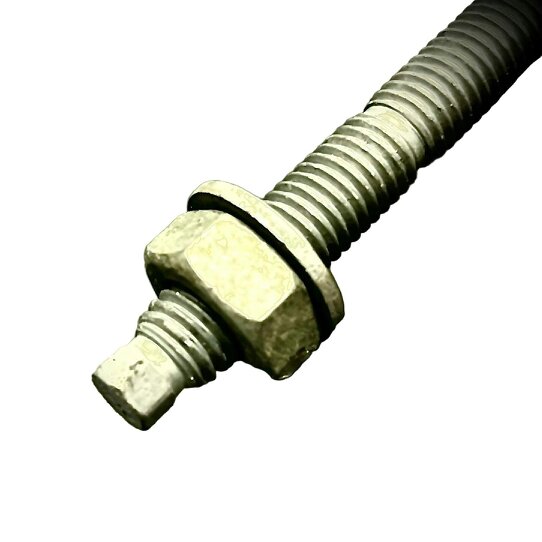

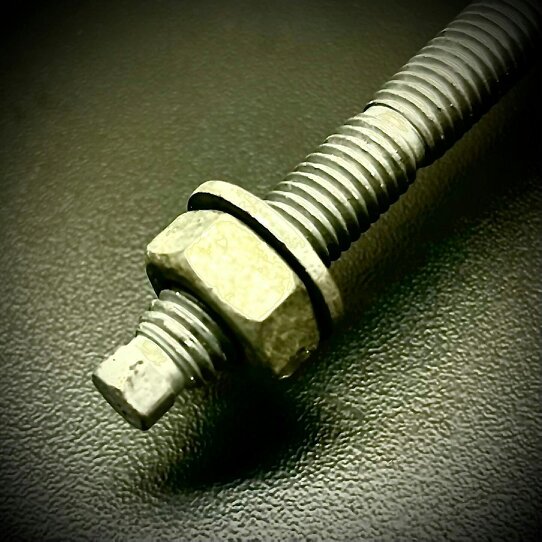

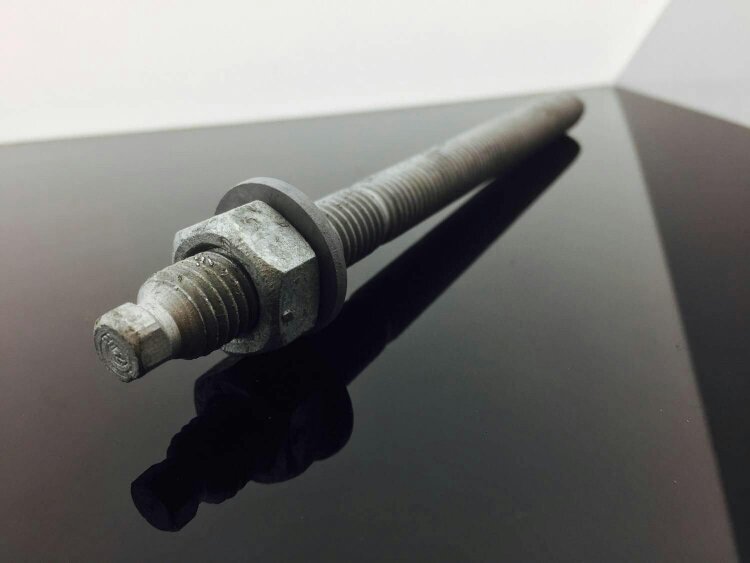

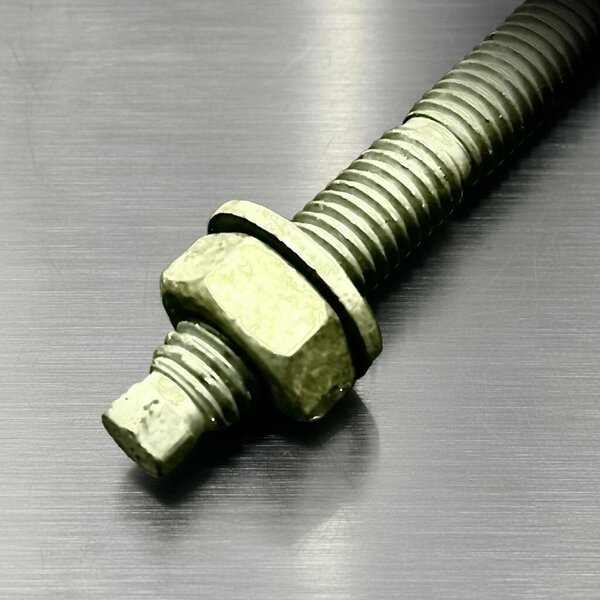

For resin and capsule fixing applications, these JCP J-Fix chemical anchor studs are manufactured from 5.8 grade galvanised steel and feature a chisel tip. The range covers M8, M10, M12, M16, M20 and M24 sizes, with ETA approval stated for the J-Fix studs.

Suitable for structural and industrial fixing work, they are approved for use with capsules and injection resin. Named applications include guard rails, silo installations, staircases, steel consoles, masts, skirting protection, anchoring heavy machines, façades and steelwork constructions.

Available options

• 8 x 110
• 10 x 130
• 12 x 160
• 16 x 190
• 20 x 260
• 24 x 300

Key features

• 5.8 grade galvanised steel

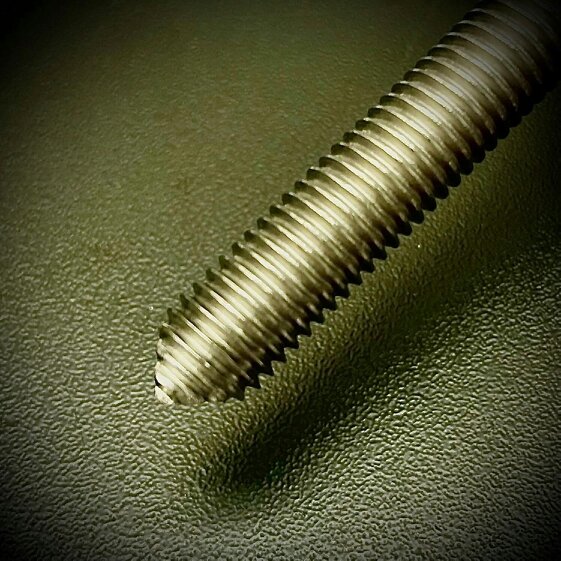

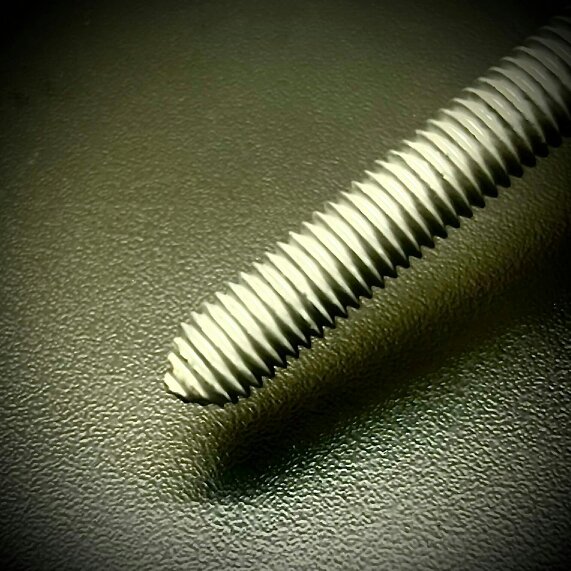

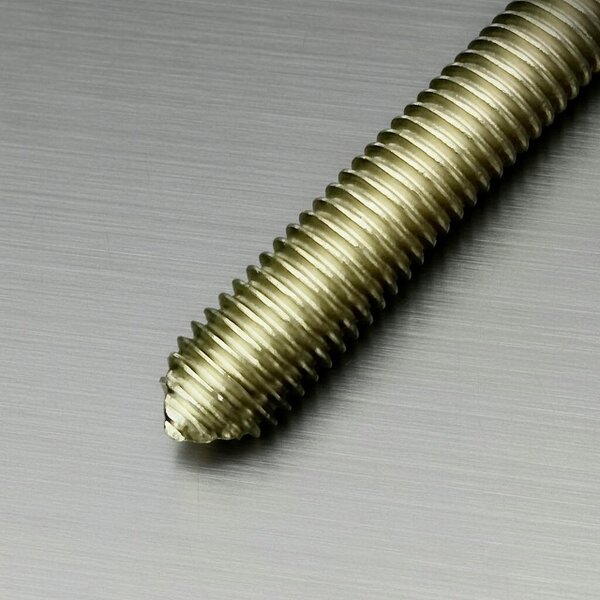

• Chisel tip
• Approved for use with capsules and injection resin
• ETA approved

Specifications

• M8: anchor hole diameter 10, maximum fixture thickness 18mm, anchor length 110mm
• M10: anchor hole diameter 12, maximum fixture thickness 25mm, anchor length 130mm
• M12: anchor hole diameter 14, maximum fixture thickness 34mm, anchor length 160mm
• M16: anchor hole diameter 18, maximum fixture thickness 45mm, anchor length 190mm
• M20: anchor hole diameter 25, maximum fixture thickness 55mm, anchor length 260mm
• M24: anchor hole diameter 28, maximum fixture thickness 67mm, anchor length 300mm

Sizing

• 8 x 110
• 10 x 130
• 12 x 160
• 16 x 190
• 20 x 260
• 24 x 300

Care and maintenance

• Clean the hole with the correct sized brush and blow out dust before installation.

Safety information

• Check that the substrate is stable before fixing.
• Use the chart to select the correct drill bit.
• Mark out the hole locations before drilling.
• Drill holes to a minimum depth of the anchor length - maximum fixture thickness + 10mm.
• Drill the hole square.
• Use a suitable chemical resin.
• Turn the stud gently as it is inserted, positioning it around 10mm from the bottom of the hole.
• Missing installation details will impair the performance of the stud, potentially making it unsafe.

Rackhams Reference : 53WTNUST76
