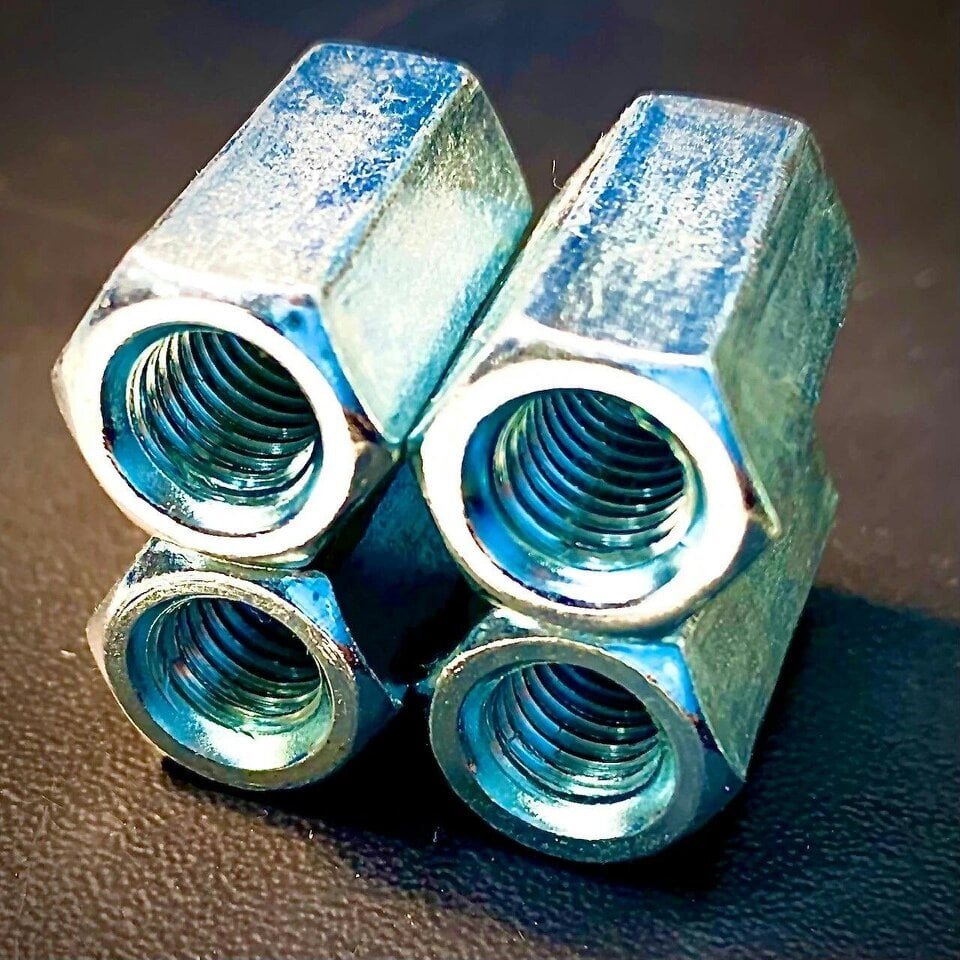

Fixaball Connector Long Hex Nut for Threaded Bar BZP

For joining threaded bar sections, Fixaball hexagon connector nuts provide a zinc plated BZP finish with standard metric coarse threads. This range is available in M6, M8, M10, M12, M16, M20 and M24 sizes, with matching lengths for each diameter.

Each connector nut couples two threaded bars by allowing one bar to be threaded into one end and the second bar into the other. Suitable for use with standard metric threaded bar, the hexagon outer profile allows tightening or release with an adjustable spanner or the correct sized spanner.

Available options

• M6 x 18mm
• M8 x 24mm
• M10 x 30mm
• M12 x 36mm
• M16 x 48mm
• M20 x 60mm
• M24 x 72mm

Key features

• Zinc plated BZP finish
• Hexagon connector nut for threaded bar and studding
• Standard metric coarse thread
• Compatible thread sizes: M6, M8, M10, M12, M16, M20, M24

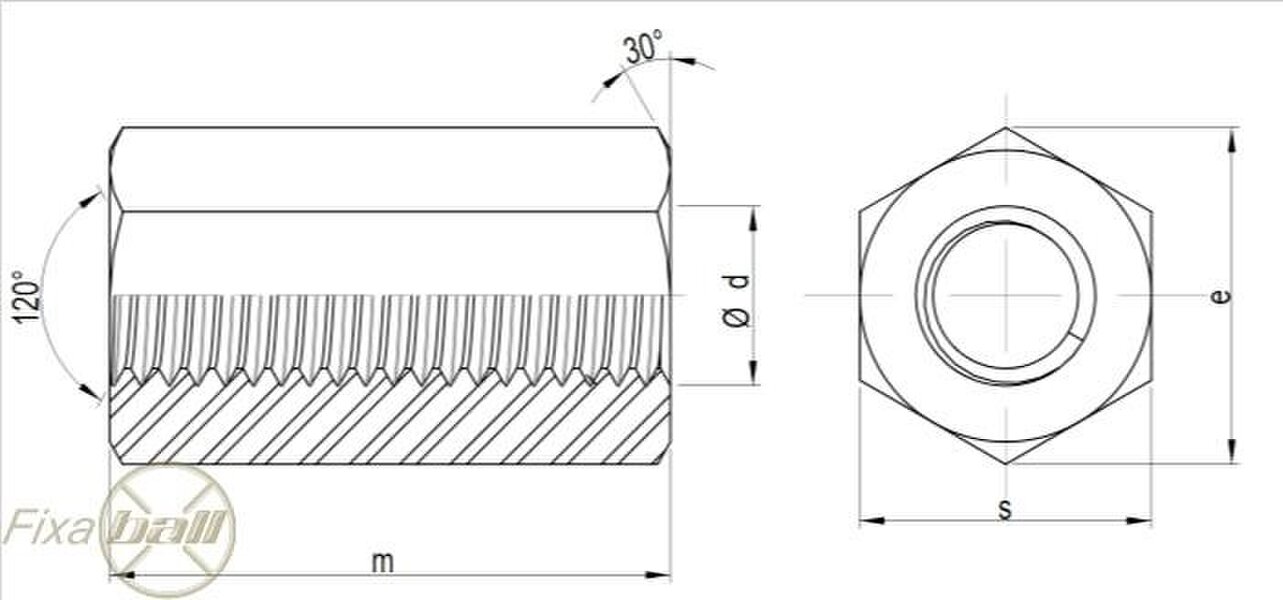

Specifications

• M6: standard coarse thread pitch 1mm, s 10, e 11. 1
• M8: standard coarse thread pitch 1. 25mm, s 13, e 15
• M10: standard coarse thread pitch 1. 5mm, s 17, e 19. 6
• M12: standard coarse thread pitch 1. 75mm, s 19, e 21. 9
• M16: standard coarse thread pitch 2mm, s 24, e 27. 7
• M20: standard coarse thread pitch 2. 5mm, s 30, e 34. 6
• M24: standard coarse thread pitch 3mm, s 36, e 41. 6
• M30: standard coarse thread pitch 3. 5mm, s 46, e 53. 1

Sizing

• M6 x 18mm
• M8 x 24mm
• M10 x 30mm
• M12 x 36mm
• M16 x 48mm
• M20 x 60mm
• M24 x 72mm

Rackhams Reference : ZDU21P7777
