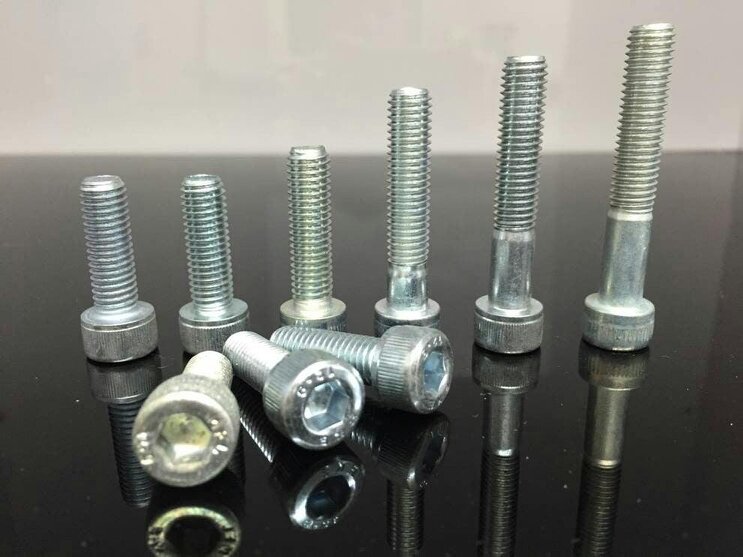

Fixaball M10 Socket Cap Allen Screw Bolt High Tensile 12.9 BZP

For applications requiring an M10 socket cap fixing, this Fixaball Allen socket cap head bolt/screw is manufactured from high tensile steel grade 12.9 with a bright zinc plated finish. It features a metric coarse M10 x 1.5mm pitch thread and is produced to DIN 912.

The cylindrical head has a 16mm diameter, 10mm height and takes an 8mm Allen key. Lengths are measured excluding the head, with fully threaded and partially threaded options available across the size range.

Key features

• M10 diameter
• High tensile steel grade 12.9
• Bright zinc plated finish
• Metric coarse thread: M10 x 1.5mm pitch
• Standard: DIN 912
• 8mm Allen key size

Specifications

• Head diameter: 16mm
• Head height: 10mm
• Bolt lengths do not include the head
• Threading varies by length: fully threaded (FT) or partially threaded (PT)

Available options

• 10mm (FT)
• 12mm (FT)
• 16mm (FT)
• 20mm (FT)
• 25mm (FT)
• 30mm (FT)
• 35mm (FT)
• 40mm (FT)
• 45mm (PT)
• 50mm (PT)
• 55mm (PT)
• 60mm (PT)
• 65mm (PT)
• 70mm (PT)
• 75mm (PT)
• 80mm (PT)
• 85mm (PT)
• 90mm (PT)
• 100mm (PT)
• 110mm (PT)
• 120mm (PT)
• 130mm (PT)
• 140mm (PT)
• 150mm (PT)
• 160mm (PT)
• 180mm (PT)

Sizing

• 10mm
• 12mm
• 16mm
• 20mm
• 25mm
• 30mm
• 35mm
• 40mm
• 45mm
• 50mm
• 55mm
• 60mm
• 65mm
• 70mm
• 75mm
• 80mm
• 85mm
• 90mm
• 100mm
• 110mm
• 120mm
• 130mm
• 140mm
• 150mm
• 160mm
• 180mm

Rackhams Reference : UTBHTMIFHJ
