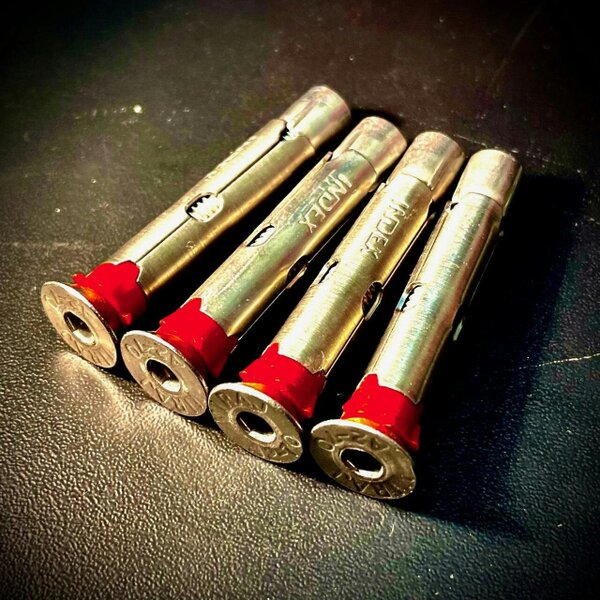

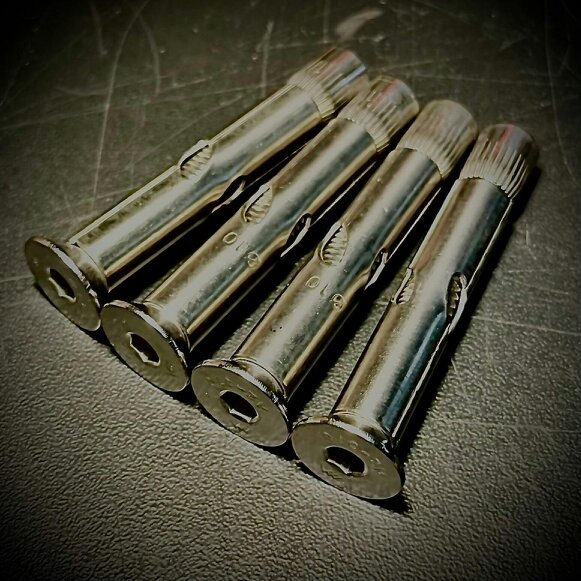

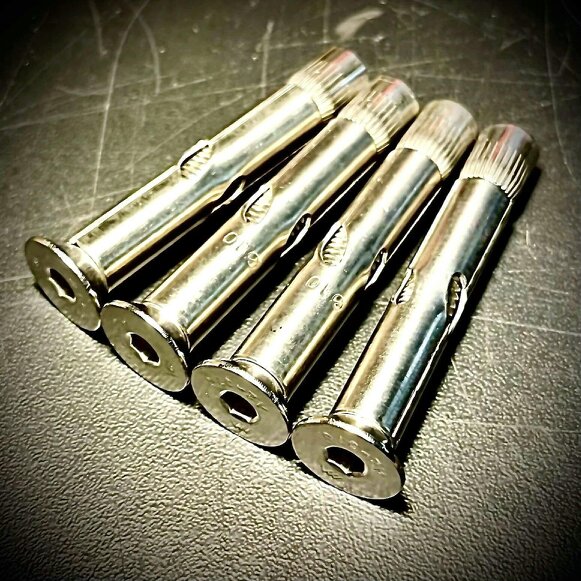

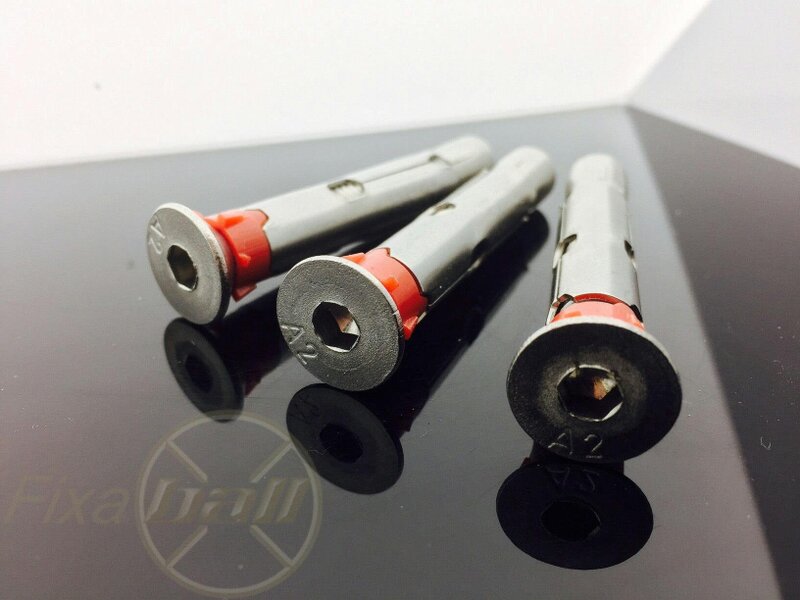

Fixaball Sleeve Anchors Countersunk A2 Stainless Steel 8mm 10mm 12mm

For masonry fixings that need a flush finish, these Fixaball countersunk sleeve anchors are made from A2/304 stainless steel and offered in 8mm, 10mm and 12mm diameters. They are suitable for use in brick, block, concrete and dense stone, with additional suitability stated for perforated bricks and dense concrete blocks.

The thin-walled expansion anchor is supplied pre-assembled and uses torque controlled expansion. A plastic collar helps pull down small gaps and applies a positive clamping force through the fixture. The countersunk head sits flush in a countersunk hole, making it suitable for visible surfaces.

Key features

• Diameter options: 8mm, 10mm, 12mm
• Material: A2/304 stainless steel
• Countersunk head
• Suitable for brick, block, concrete and dense stone
• Also suitable for stone, brickwork, perforated bricks and dense concrete blocks
• Torque controlled expansion
• Supplied pre-assembled for rapid installation

Sizing

• 8mm x 45mm
• 8mm x 60mm
• 10mm x 60mm
• 10mm x 70mm
• 12mm x 70mm
• 12mm x 100mm

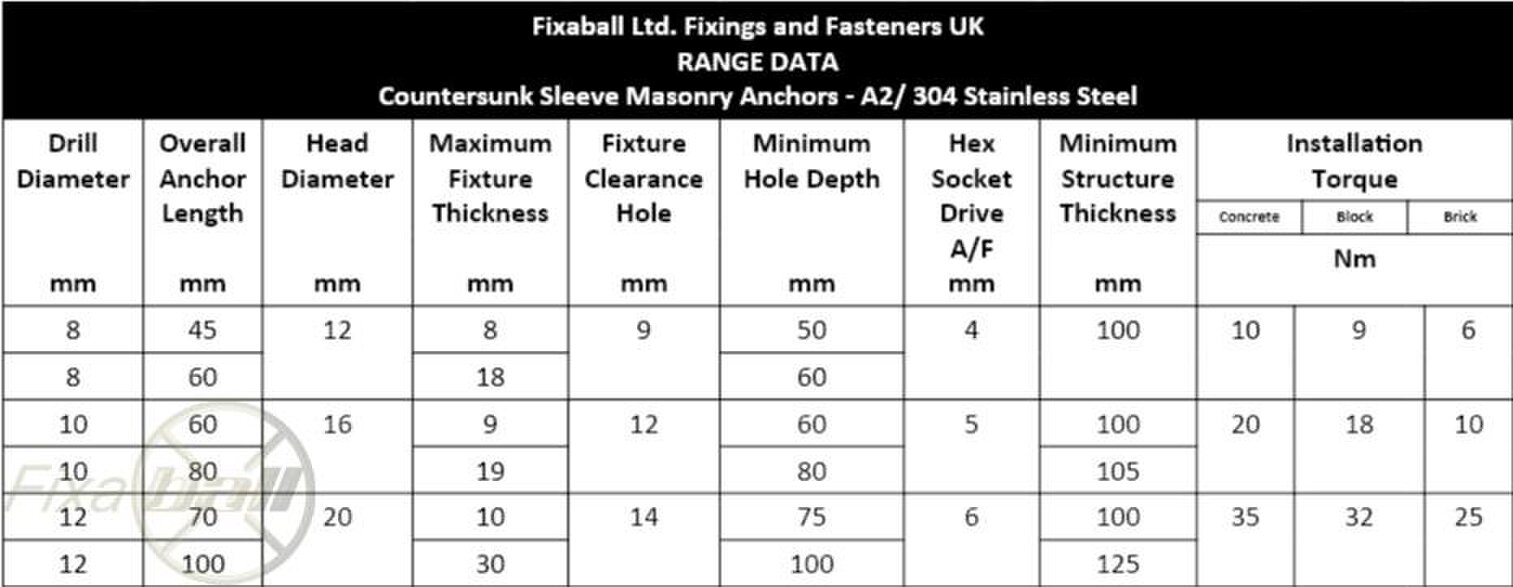

Specifications

• Hex key drive A/F 4: 8mm x 45mm, 8mm x 60mm
• Hex key drive A/F 5: 10mm x 60mm, 10mm x 70mm
• Hex key drive A/F 6: 12mm x 70mm, 12mm x 100mm
• Through fixing for light to medium duty loads
• Collapse feature allows a positive clamping force

Care and maintenance

Clear and clean the drilled hole before installation.

Rackhams Reference : 6AXJK7JAQ1
