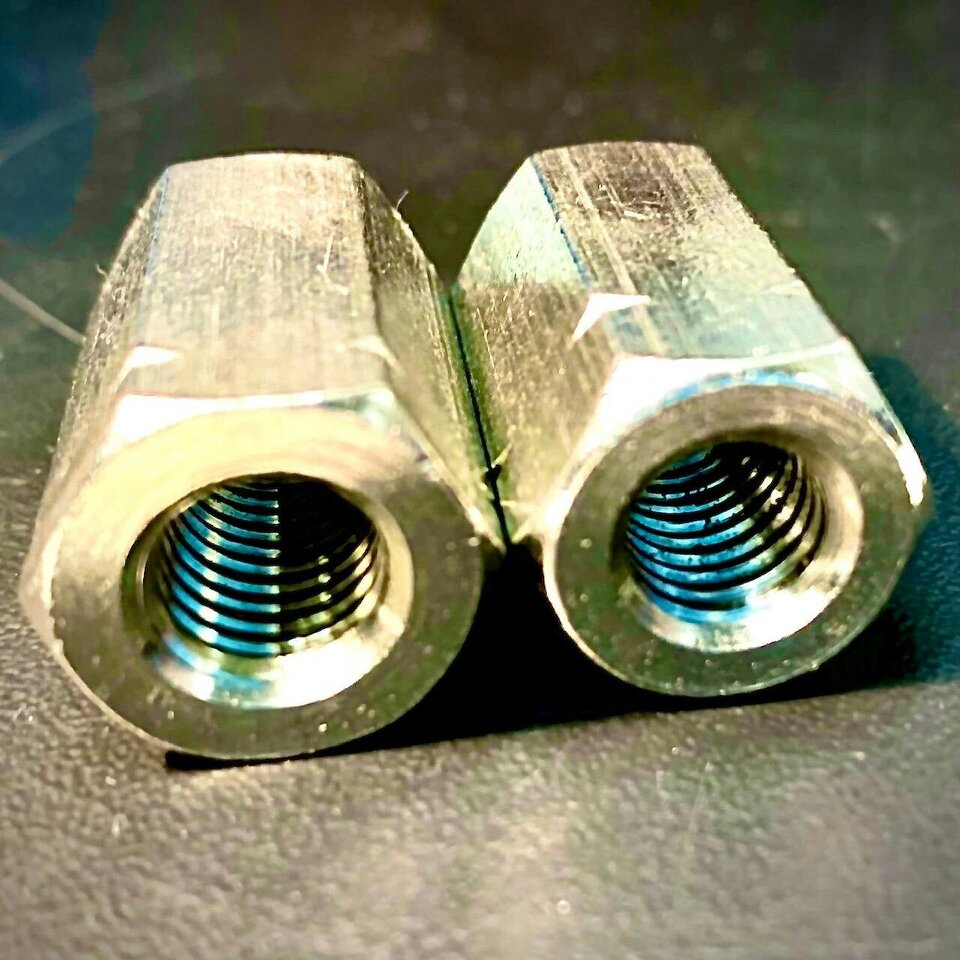

Fixaball Connector Long Hex Nut for Threaded Bar A2 Stainless Steel

For joining metric threaded bars, this Fixaball hex all thread connector nut is made from A2 / 304 stainless steel and produced with a standard coarse thread. The hexagon form allows tightening with an adjustable spanner or the correct size spanner, making it suitable for connecting two threaded bars securely within the matching metric thread size.

Available in a range of diameters, each nut is matched to its corresponding coarse thread pitch. Size options include M6, M8, M10, M12, M16, M20 and M24.

Available options

• M6 x 30 hexagon connector nut (10mm A/F) A2 stainless steel
• M8 x 24 hexagon connector nut (13mm A/F) A2 stainless steel
• M10 x 30 hexagon connector nut (17mm A/F) A2 stainless steel
• M12 x 36 hexagon connector nut (19mm A/F) A2 stainless steel
• M16 x 48 hexagon connector nut (24mm A/F) A2 stainless steel
• M20 x 60 hexagon connector nut (30mm A/F) A2 stainless steel

Key features

• Material: A2 / 304 stainless steel
• Standard coarse thread
• Suitable for metric threaded bars
• Diameter options: M6, M8, M10, M12, M16, M20 and M24
• Hexagon pattern for spanner tightening

Specifications

• M6: 1mm standard coarse thread pitch, s 10, e 11.1
• M8: 1.25mm standard coarse thread pitch, s 13, e 15
• M10: 1.5mm standard coarse thread pitch, s 17, e 19.6
• M12: 1.75mm standard coarse thread pitch, s 19, e 21.9
• M16: 2mm standard coarse thread pitch, s 24, e 27.7
• M20: 2.5mm standard coarse thread pitch, s 30, e 34.6
• M24: 3mm standard coarse thread pitch, s 36, e 41.6
• M30: 3.5mm standard coarse thread pitch, s 46, e 53.1

Sizing

• M6 x 30
• M8 x 24
• M10 x 30
• M12 x 36
• M16 x 48
• M20 x 60

Care and maintenance

Use an adjustable spanner or the correct sized spanner to tighten or release the threaded bar connection.

Rackhams Reference : XJ2B7KERMX
