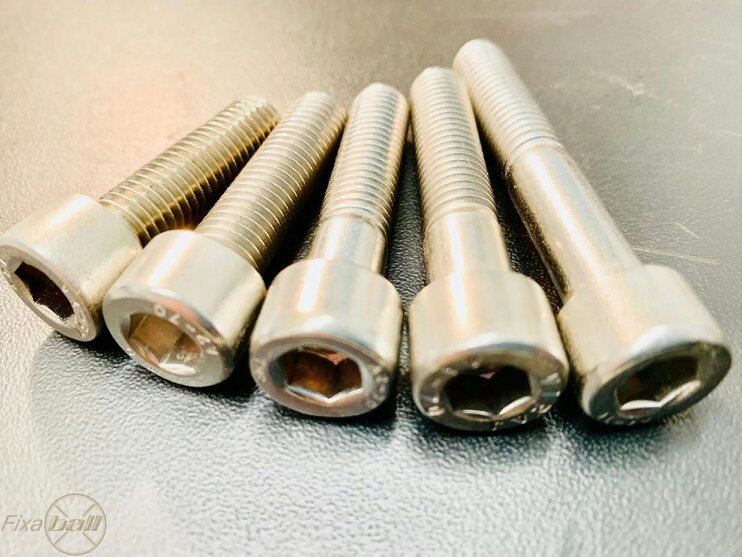

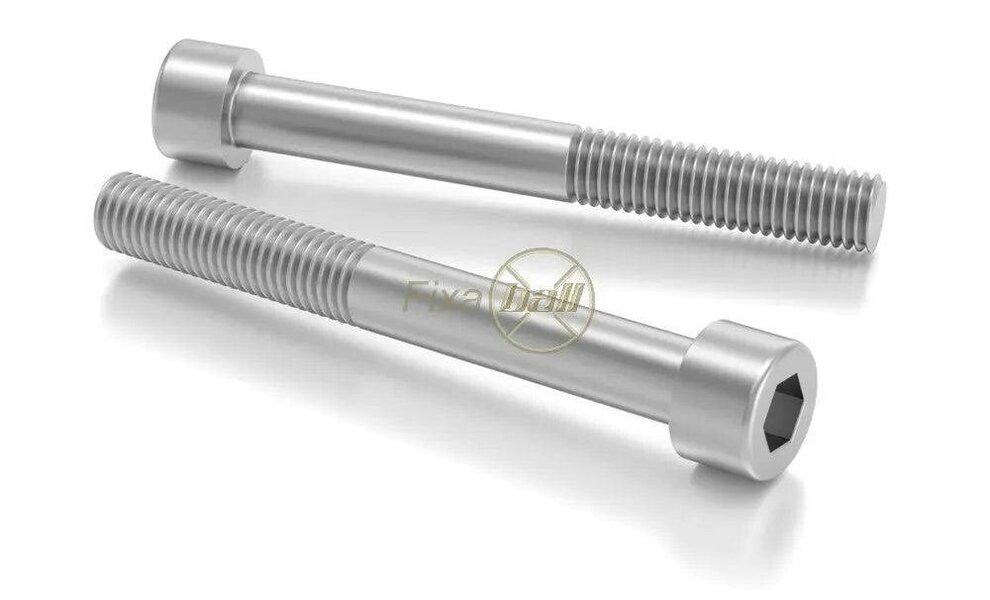

Fixaball M16 Socket Cap Allen Screw Bolt A2/304 Stainless Steel DIN 912

For fastening applications that require an internal hex drive, the Fixaball M16 socket cap screw is manufactured from A2/304 stainless steel and produced to DIN 912. It features a standard coarse M16 x 2.0mm pitch thread, a cylindrical cap head, and an uncoated finish.

Head diameter is 24mm, head height is 16mm, and the required Allen key size is 14mm. Bolt lengths do not include the head. This product is available in a range of lengths, making it suitable where the specified M16 coarse thread and DIN 912 standard are required.

Available options

• M16 x 30
• M16 x 35
• M16 x 40
• M16 x 45
• M16 x 50
• M16 x 55
• M16 x 60
• M16 x 65
• M16 x 70
• M16 x 75
• M16 x 80
• M16 x 85
• M16 x 90
• M16 x 95
• M16 x 100
• M16 x 110
• M16 x 120

Key features

• Material: A2/304 stainless steel
• Finish: none

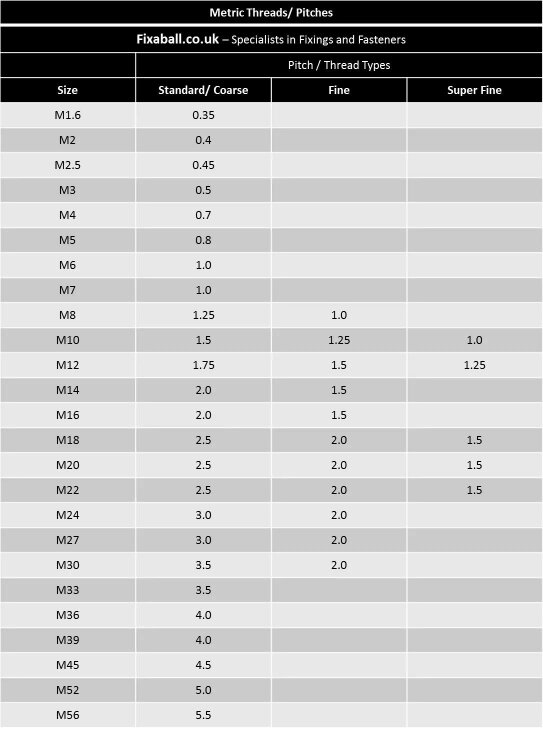

• Thread: M16 x 2.0mm pitch standard coarse thread
• Standard: DIN 912

Sizing

• Head diameter: 24mm
• Head height: 16mm

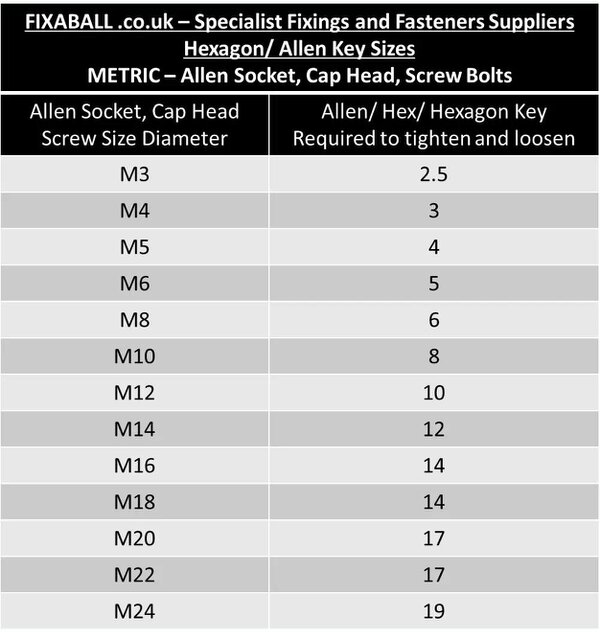

• Allen key size: 14mm
• Bolt lengths do not include the head

Rackhams Reference : 9B3RLT5VZE
