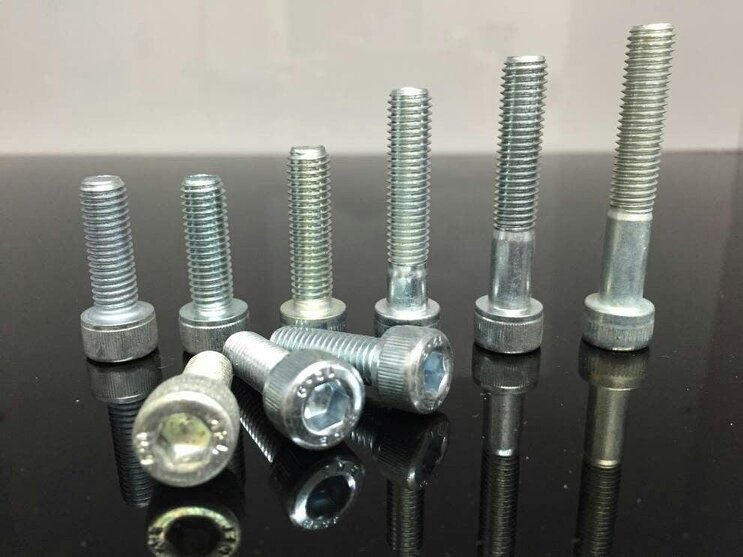

Fixaball M20 Socket Cap Allen Screw Bolt High Tensile 12.9 BZP

For high-tensile fastening applications, this Fixaball M20 socket cap screw bolt features a metric coarse M20 x 2.5mm thread and a bright zinc plated finish. Manufactured from Grade 12.9 high tensile steel, it is produced to DIN 912 and suits use where an Allen or hex key drive is required.

The cylindrical cap head has a 30mm diameter and 20mm height, with a 17mm Allen key size. Bolt lengths are measured excluding the head. Available lengths include both fully threaded and partially threaded options.

Key features

• High tensile steel Grade 12.9
• Bright zinc plated finish
• Metric coarse thread: M20 x 2.5mm pitch
• Allen key size: 17mm
• Standard: DIN 912

Available options

• 35mm length, fully threaded
• 40mm length, fully threaded
• 50mm length, fully threaded
• 60mm length, fully threaded
• 65mm length, fully threaded
• 70mm length, fully threaded
• 80mm length, partially threaded
• 90mm length, partially threaded
• 100mm length, partially threaded
• 110mm length, partially threaded
• 120mm length, partially threaded
• 150mm length, partially threaded
• 180mm length, partially threaded

Sizing

• Head diameter: 30mm
• Head height: 20mm
• Thread size: M20 x 2.5mm pitch
• Available lengths: 35mm, 40mm, 50mm, 60mm, 65mm, 70mm, 80mm, 90mm, 100mm, 110mm, 120mm, 150mm, 180mm

Bolt lengths do not include the head.

Rackhams Reference : TH77C1CRTW
