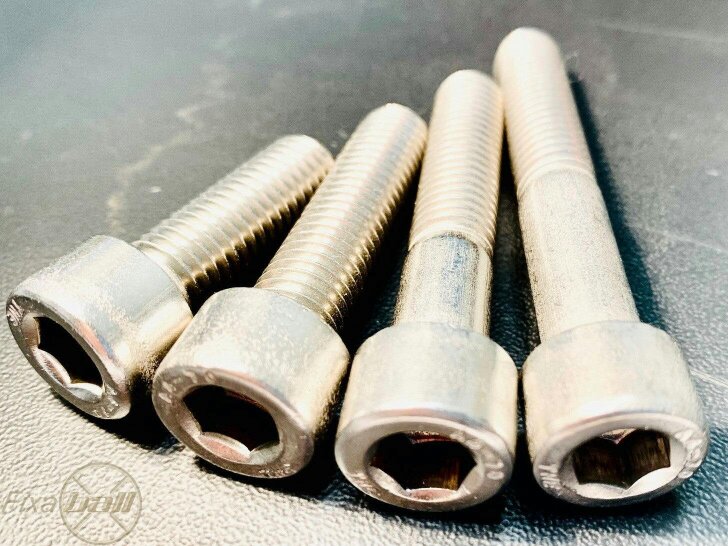

Fixaball M5 Socket Cap Allen Screw Bolt A4/316 Stainless Steel DIN 912

For corrosion-resistant fastening in exposed environments, this Fixaball M5 socket cap screw is made from A4/316 stainless steel with a standard coarse M5 x 0.8mm metric thread. It has a cap head with a hex socket drive and conforms to DIN 912 and ISO 4762.

Suitable where a 4mm Allen key fitting is required, this fastener has an 8.7mm head diameter and a 5mm head height. Bolt length excludes the head, and a range of lengths is available to suit different fixing requirements.

Available options

• M5 x 10 socket cap screw DIN 912 / ISO 4762 A4-70 stainless steel
• M5 x 12 socket cap screw DIN 912 / ISO 4762 A4-70 stainless steel
• M5 x 14 socket cap screw DIN 912 / ISO 4762 A4-70 stainless steel
• M5 x 16 socket cap screw DIN 912 / ISO 4762 A4-70 stainless steel
• M5 x 18 socket cap screw DIN 912 / ISO 4762 A4-70 stainless steel
• M5 x 20 socket cap screw DIN 912 / ISO 4762 A4-70 stainless steel
• M5 x 25 socket cap screw DIN 912 / ISO 4762 A4-70 stainless steel
• M5 x 30 socket cap screw DIN 912 / ISO 4762 A4-70 stainless steel
• M5 x 35 socket cap screw DIN 912 / ISO 4762 A4-70 stainless steel
• M5 x 40 socket cap screw DIN 912 / ISO 4762 A4-70 stainless steel
• M5 x 50 socket cap screw DIN 912 / ISO 4762 A4-70 stainless steel

Key features

• M5 diameter
• A4/316 stainless steel
• No coating or finish
• Metric coarse thread: M5 x 0.8mm pitch
• Cap head with hex socket drive
• Standards: DIN 912, ISO 4762

Specifications

• Head diameter: 8.7mm
• Head height: 5mm
• Allen key size: 4mm

Sizing

• Bolt lengths available: 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm
• Bolt length excludes the head

Rackhams Reference : SDSHWZFY9X
