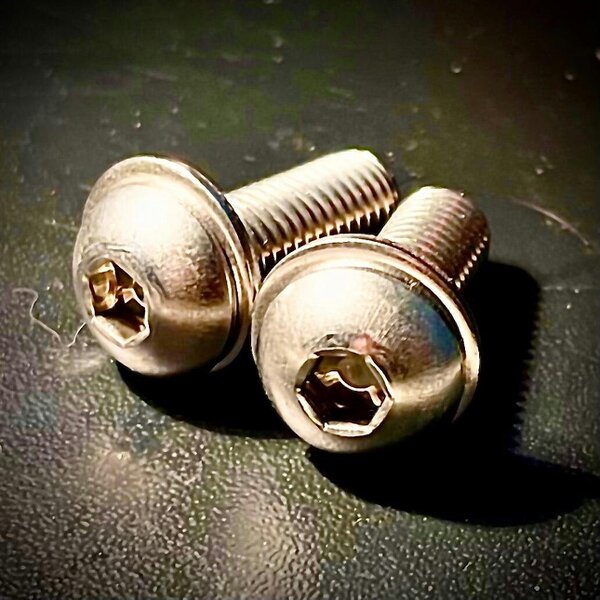

Fixaball M8 Socket Screw Button Round Washer A2 304 Stainless DIN 9427

For a neat, low-profile fastening finish, this Fixaball M8 socket screw button head bolt is supplied in A2 / 304 stainless steel with a Form A washer. The rounded button head uses an Allen drive and suits applications where a smoother head profile is preferred, with no sharp edges.

Made to metric coarse thread, it conforms to DIN 9427, ISO 7380, BS 4168 and ASME B18. 3. 4M. A2 / 304 stainless steel offers corrosion resistance for external use, including intermittent weathering and hygiene-focused settings.

Key features

• M8 thread size
• A2 / 304 stainless steel
• Button head socket screw with Allen drive
• Supplied with Form A washer
• Metric coarse thread
• Standards: DIN 9427, ISO 7380, BS 4168, ASME B18. 3. 4M

Available options

• M8 x 12
• M8 x 16
• M8 x 20
• M8 x 25
• M8 x 30
• M8 x 35
• M8 x 40
• M8 x 45
• M8 x 50
• M8 x 55
• M8 x 60
• M8 x 65
• M8 x 70
• M8 x 75
• M8 x 80

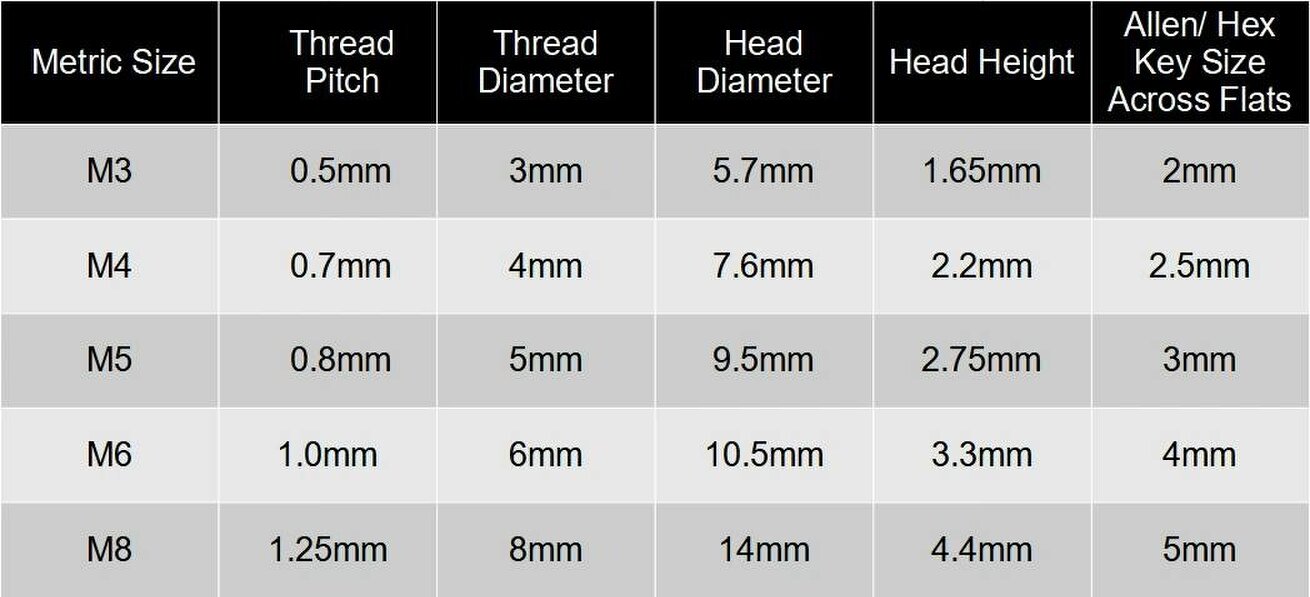

Specifications

• Thread diameter: 8mm
• Pitch: 1. 25mm
• Head diameter: 14mm
• Head height: 4. 4mm
• Allen / hex key size: 5

Sizing

• M8 x 12
• M8 x 16
• M8 x 20
• M8 x 25
• M8 x 30
• M8 x 35
• M8 x 40
• M8 x 45
• M8 x 50
• M8 x 55
• M8 x 60
• M8 x 65
• M8 x 70
• M8 x 75
• M8 x 80

Rackhams Reference : ADJEJMGK5B
