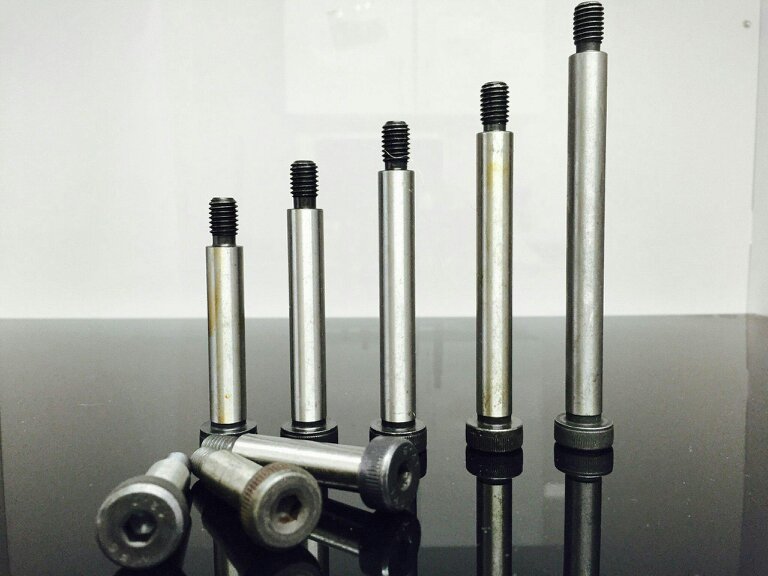

Fixaball Socket Shoulder Cap Screw M10 Thread 12mm Shoulder DIN9841

For mechanical assemblies that require a precision shoulder and an internal hex drive, this Fixaball socket shoulder cap screw combines an M10 metric coarse thread with a 12mm shoulder. Made from blackened alloy steel in high tensile grade 12.9, it is suited to moving parts and applications where the unthreaded cylindrical shoulder allows component rotation.

This shoulder screw conforms to DIN 9841, BS 4168 and ISO 7379. The shoulder diameter is M12, with a maximum shoulder diameter of 11.98mm. Temperature range is -50C to +300C, and the stated tightening torque for M10 is 60 Nm.

Available options

• Shoulder length: 16mm
• Shoulder length: 20mm
• Shoulder length: 25mm
• Shoulder length: 30mm
• Shoulder length: 35mm
• Shoulder length: 40mm
• Shoulder length: 45mm
• Shoulder length: 50mm
• Shoulder length: 60mm
• Shoulder length: 70mm
• Shoulder length: 75mm
• Shoulder length: 80mm
• Shoulder length: 90mm
• Shoulder length: 100mm
• Shoulder length: 110mm
• Shoulder length: 120mm

Key features

• M10 metric coarse thread
• 12mm shoulder
• Blackened alloy steel
• High tensile grade 12.9
• Internal hex / Allen key drive
• Standards: DIN 9841, BS 4168, ISO 7379

Specifications

• Hardness: 38 HRC
• Tensile strength: 1200 N/mm²
• Temperature range: -50C to +300C
• Torque to: M10 = 60 Nm
• Thread length (Max): 16.4
• Socket head diameter: 18
• Hex / Allen key size: 6

Sizing

• Shoulder diameter: M12
• Diameter of shoulder (Max): 11.98
• Length of shoulder options: 16, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100, 110, 120

Rackhams Reference : 2PIMTK2CS1
