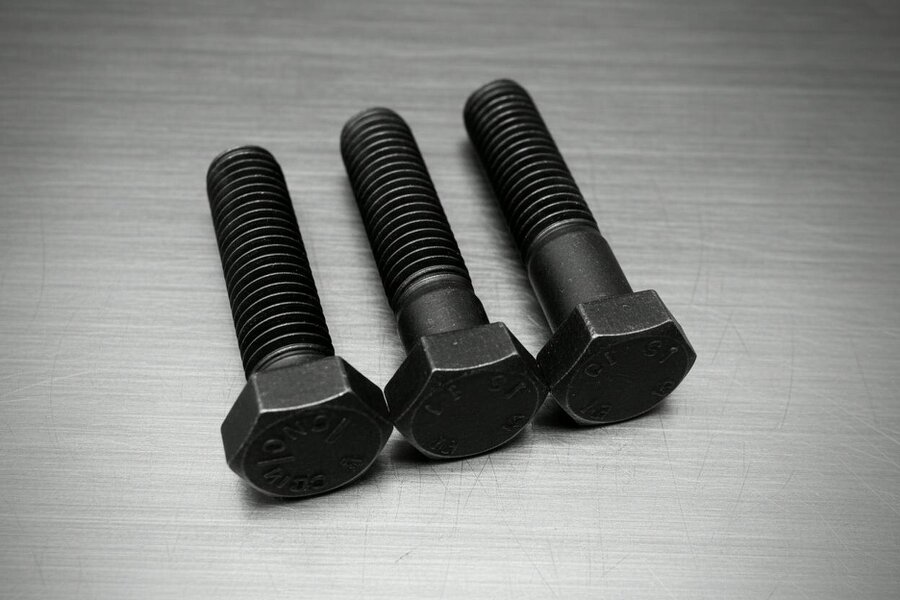

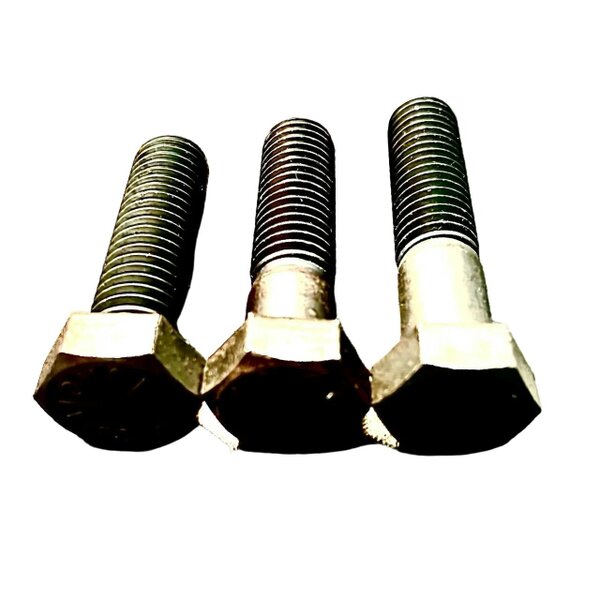

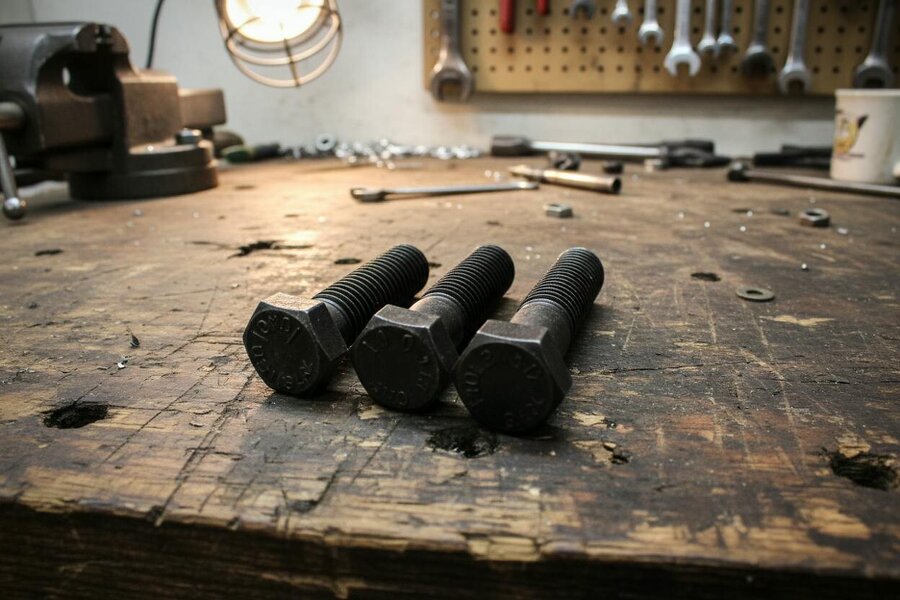

Fixaball UNC 3/4" Hex Bolt Set Screw High Tensile 8.8 Self Colour Over 8"

For inch-threaded fastening applications, Fixaball UNC 3/4" hex sets and hex bolts are available in high tensile steel with a self-colour black finish. This range covers UNC 3/4" fasteners with 10 T.P.I, including fully threaded hex sets and partially threaded hex bolts.

Fully threaded versions are supplied as hex sets, while lengths from 2.3/4" upwards are listed as partially threaded hex bolts. These fasteners are intended for use with a nut and washer where a hexagon head fixing is required.

Available options

• 1" - Hex Set (FT)
• 1. 1/4" - Hex Set (FT)
• 1. 1/2" - Hex Set (FT)
• 1. 3/4" - Hex Set (FT)
• 2. 1/4" - Hex Set (FT)
• 2. 1/2" - Hex Set (FT)
• 2. 3/4" - Hex Bolt (PT)
• 3" - Hex Bolt (PT)
• 3. 1/4" - Hex Bolt (PT)
• 3. 1/2" - Hex Bolt (PT)
• 3. 3/4" - Hex Bolt (PT)
• 4" - Hex Bolt (PT)
• 4. 1/4" - Hex Bolt (PT)
• 4. 1/2" - Hex Bolt (PT)
• 5" - Hex Bolt (PT)
• 5. 1/2" - Hex Bolt (PT)
• 6" - Hex Bolt (PT)
• 7" - Hex Bolt (PT)
• 7. 1/2" - Hex Bolt (PT)
• 8" - Hex Bolt (PT)
• 8. 1/2" - Hex Bolt (PT)
• 9" - Hex Bolt (PT)
• 9. 1/2" - Hex Bolt (PT)
• 10" - Hex Bolt (PT)
• 11" - Hex Bolt (PT)

Key features

• Thread size: UNC 3/4"
• Threads per inch: 10 T.P.I
• High tensile standard marked with a "5"
• Comparable with metric high tensile 8.8
• Self-colour black finish
• Available as fully threaded hex sets (FT) and partially threaded hex bolts (PT)

Specifications

• Unified National Coarse (UNC) thread form
• 60 degree flank angle rounded roots and flat crests
• Unified thread based on inch sizes
• Thread standards agreed upon by standard bodies of Canada, the United Kingdom, and the United States

Sizing

• 1"
• 1. 1/4"
• 1. 1/2"
• 1. 3/4"
• 2. 1/4"
• 2. 1/2"
• 2. 3/4"
• 3"
• 3. 1/4"
• 3. 1/2"
• 3. 3/4"
• 4"
• 4. 1/4"
• 4. 1/2"
• 5"
• 5. 1/2"
• 6"
• 7"
• 7. 1/2"
• 8"
• 8. 1/2"
• 9"
• 9. 1/2"
• 10"
• 11"

Rackhams Reference : ZD4PE9SJQE
