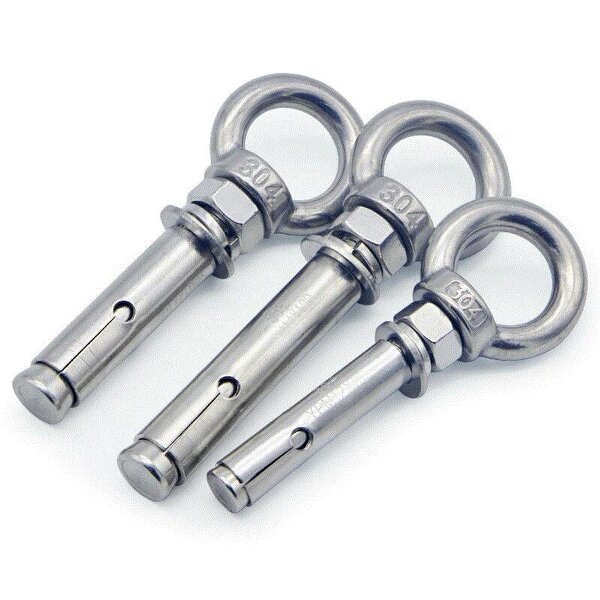

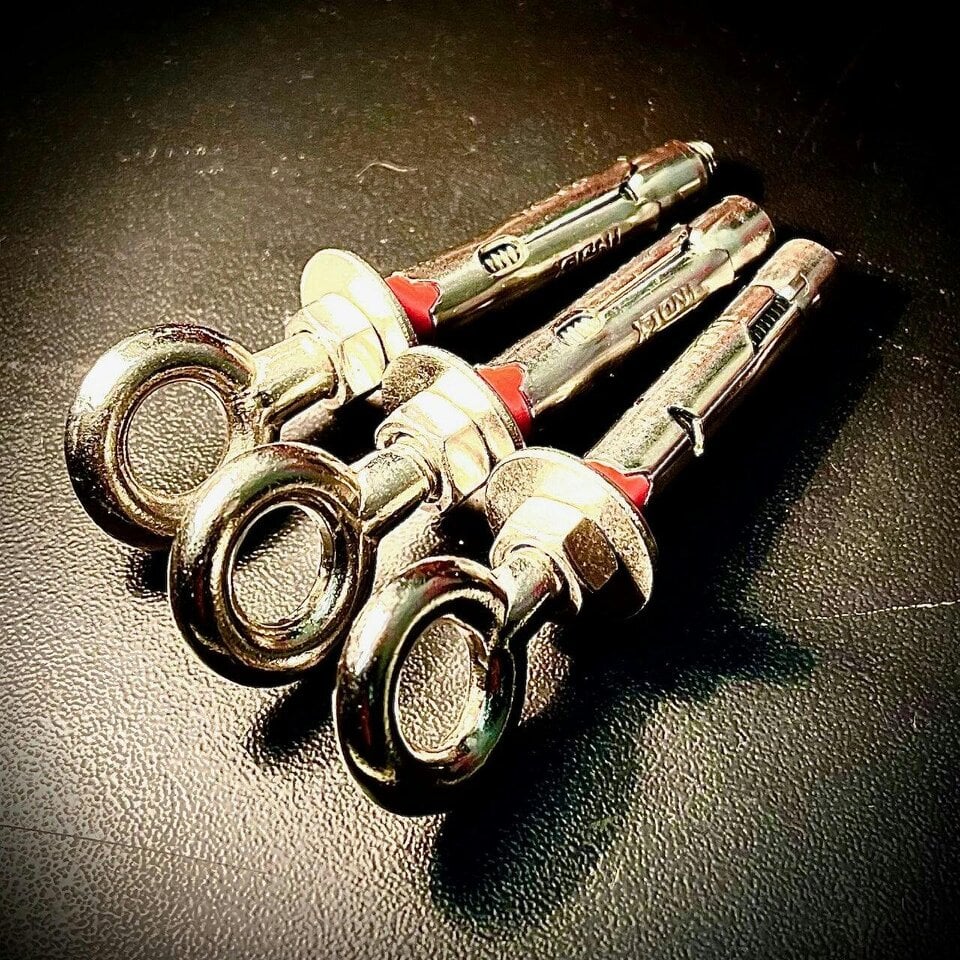

Fixaball Eye Bolt Sleeve Masonry Concrete Anchor A2 Stainless Steel 8mm 10mm

For masonry fixings in brick, block, concrete and dense stone, the Fixaball eye-bolt sleeve masonry anchor is made from A2/304 stainless steel for indoor or outdoor use. This expansion anchor has a thin-walled sleeve and suits concrete, stone, brickwork, perforated bricks and dense concrete blocks.

The diagonal slot allows the small gaps to be pulled down so a positive clamping force is applied through the fixture. Available in M8 and M10 sizes, it is suited to installations where weathering and corrosion resistance are required.

Key features

• Diameter: M8 (8mm) or M10 (10mm)
• Material: A2/304 stainless steel
• Eye-bolt sleeve anchor
• Suitable for brick, block, concrete, stone, perforated bricks and dense concrete blocks
• Indoor or outdoor use

Available options

• M8 (8mm) x 50mm long thread/shank
• M10 (10mm) x 65mm long thread/shank

Sizing

• M8 (8mm): 50mm long thread/shank
• M10 (10mm): 65mm long thread/shank
• Anchor hole size 8mm: minimum hole depth 50mm
• Anchor hole size 10mm: minimum hole depth 65mm

Care and maintenance

Clear and clean the drilled hole before placing the anchor, then set it by tightening the nut.

Rackhams Reference : W618FIPCLA
