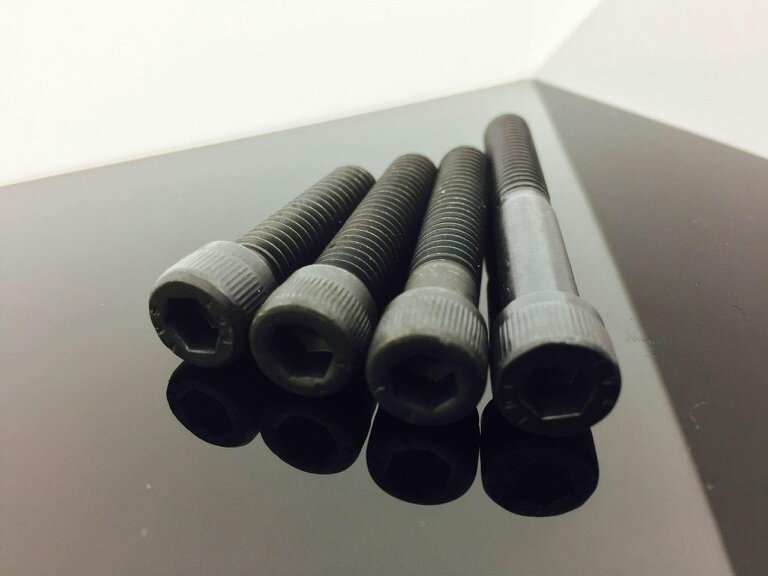

Fixaball UNF 1/2" Socket Cap Screw High Tensile 12.9 Self Colour DIN912

For fine thread fastening applications, the Fixaball UNF 1/2" socket cap screw is produced in high tensile steel with a self-colour black finish. This Allen hex socket cap head fastener has a 1/2" UNF thread with 20 TPI and conforms to DIN 912, ISO 4762 and BS 2470, Series 1960.

Available in a range of lengths, it includes fully threaded and partially threaded options. The cylindrical cap head is tightened with a 3/8" hex key. The self-colour finish offers low corrosion resistance without further surface treatment and is suited to conditions with no exposure to moisture, often greased or oiled.

Key features

• Diameter: 1/2"
• Thread: UNF 20 TPI
• Grade: high tensile 12.9
• Material and finish: high tensile steel, self-colour black
• Standards: DIN 912, ISO 4762, BS 2470, Series 1960
• Hex key size: 3/8"

Specifications

• Conforming to ASME/ ANSI B18. 3 1960 Series
• Head diameter max: 0. 75
• Shank diameter max: 0. 50
• Head height max: 0. 50
• Diameter: ½
• UNC pitch TPI: 13
• UNF pitch TPI: 20
• Hex key size nominal: 3/8

Available options

• 1/2"-20 x 1/2", fully threaded
• 1/2"-20 x 3/4", fully threaded
• 1/2"-20 x 1", fully threaded
• 1/2"-20 x 1 1/4", fully threaded
• 1/2"-20 x 1 1/2", fully threaded
• 1/2"-20 x 1 3/4", fully threaded
• 1/2"-20 x 2", fully threaded
• 1/2"-20 x 2 1/4", partially threaded
• 1/2"-20 x 2 1/2", partially threaded
• 1/2"-20 x 2 3/4", partially threaded
• 1/2"-20 x 3", partially threaded
• 1/2"-20 x 3 1/4", partially threaded
• 1/2"-20 x 3 1/2", partially threaded
• 1/2"-20 x 3 3/4", partially threaded
• 1/2"-20 x 4", partially threaded
• 1/2"-20 x 5", partially threaded
• 1/2"-20 x 6", partially threaded
• 1/2"-20 x 6 1/2", partially threaded
• 1/2"-20 x 7", partially threaded
• 1/2"-20 x 8", partially threaded

Safety information

Low corrosion resistance without further surface treatment.
