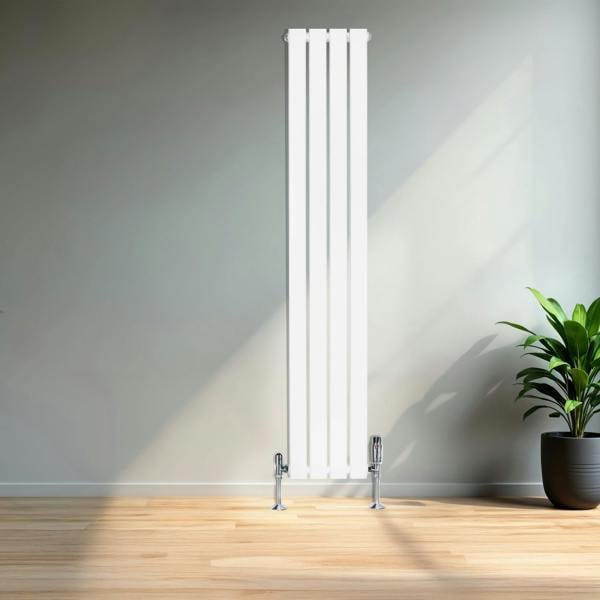

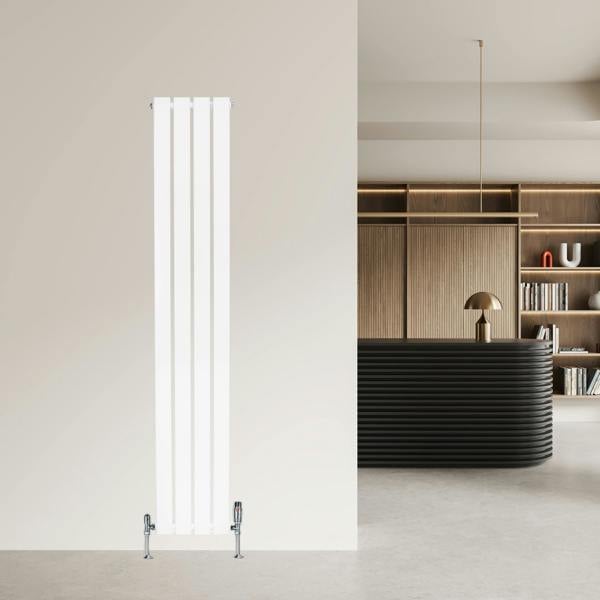

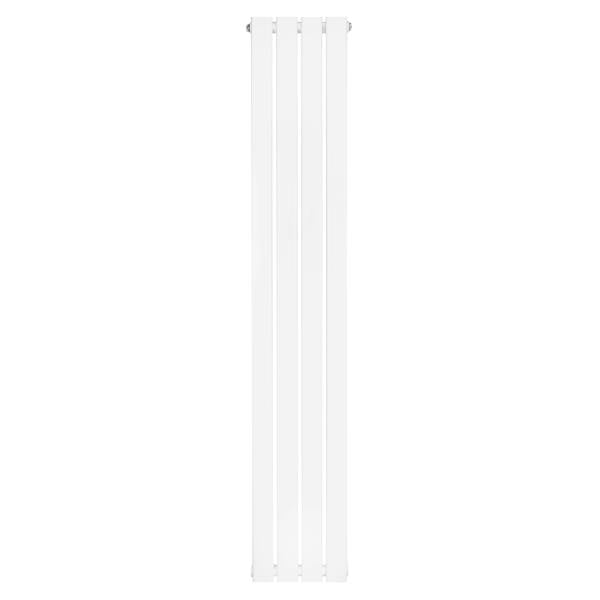

Monstershop Flat Single Column Radiator - 1600 x 280mm - White

Bring a crisp, contemporary look to your heating with the Monstershop Flat Single Column Radiator, a white steel radiator sized at 1600 x 280mm. Made from 1.5mm carbon steel and finished with triple layered powder coating, it pairs a clean-lined profile with a durable surface suited to everyday home environments.

With 4 columns and individual flat tubes measuring 60mm x 15mm, it delivers a BTU rating @ 60 of 2141 (1686 @ 50), alongside a watt rating @ 60 of 627 (494 @ 50). The radiator depth is 46mm, extending to 73mm with the bracket, and it uses standard 0.5" BSP bore inlets/outlets for straightforward valve compatibility. CE and UKCA certification is included, with testing to BS EN 442 and ISO9001:2015 standards, plus a 15-year guarantee.

Key features

• 4-column flat single column radiator
• Triple layered powder coating finish
• BTU rating @ 60: 2141
• Standard 0.5" BSP bore inlets/outlets
• Secure brackets and fixing kit included
• Flexible cleaning brush included
• CE and UKCA certified
• 15-year guarantee

Specifications

• Colour: White
• Material: 1.5mm carbon steel
• Weight: 11.2kg
• Height: 1600mm / 160cm / 63”
• Width: 280mm / 28cm / 11”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 4
• BTU rating @ 50: 1686
• BTU rating @ 60: 2141
• Watt rating @ 50: 494
• Watt rating @ 60: 627
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 6m²
• Inlets/Outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards

In the box

• 1 x Flat Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : APFG74P4N7
