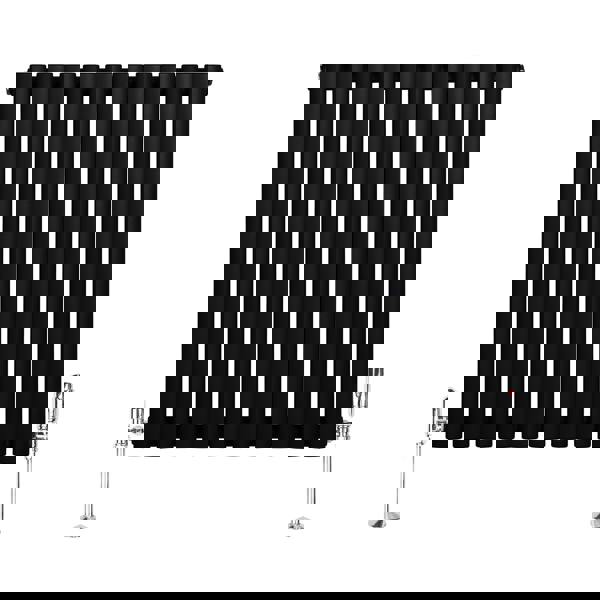

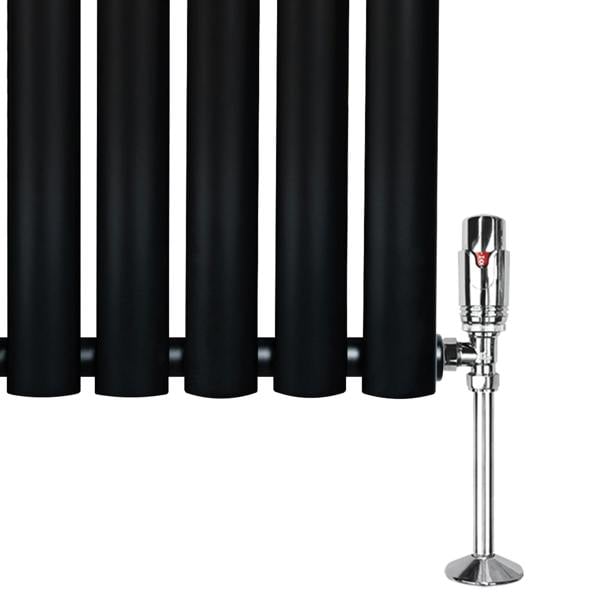

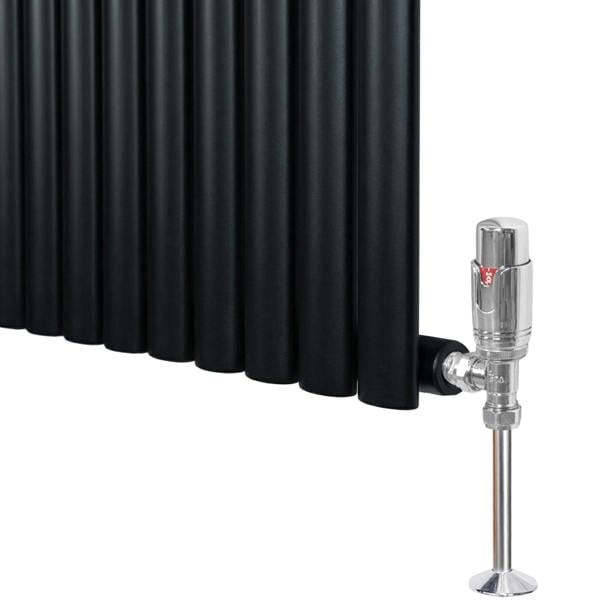

Monstershop Oval Single Column Radiator & Valves – 600mm x 600mm – Black

A bold, architectural update for modern interiors, the Monstershop Oval Single Column Radiator & Valves pairs a black oval-tube radiator with a polished chrome thermostatic valve set. Measuring 600mm x 600mm, it brings a compact footprint with a distinctive single column profile, finished in triple layered powder coating for a clean, durable look.

Made from 1.5mm carbon steel and supplied with secure brackets and a fixing kit, it’s built for straightforward wall mounting. Heat output is rated at 1950 BTU at 60 (571W) and 1546 BTU at 50 (453W), with a recommended application area of 6m². Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems, while the included angled thermostatic valves offer rotary control with a 6–28 degrees temperature range and an integrated lock shield valve for water flow regulation.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• 600mm x 600mm radiator size
• Black finish with triple layered powder coating
• 10-column design with 50mm x 25mm oval tubes
• Heat output: 1950 BTU at 60 (571W); 1546 BTU at 50 (453W)
• Standard 0.5" BSP bore inlets/outlets
• Angled brass thermostatic valves with polished chrome finish
• Includes brackets, fixing kit and flexible cleaning brush

Specifications

Radiator

• Material: 1.5mm carbon steel
• Colour: Black
• Weight: 10.5kg
• Height: 600mm / 60cm / 23.6”
• Width: 600mm / 60cm / 23.6”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 10
• BTU rating @ 50: 1546
• BTU rating @ 60: 1950
• Watt rating @ 50: 453
• Watt rating @ 60: 571
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 6m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 554mm / 55.4cm / 21.8”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

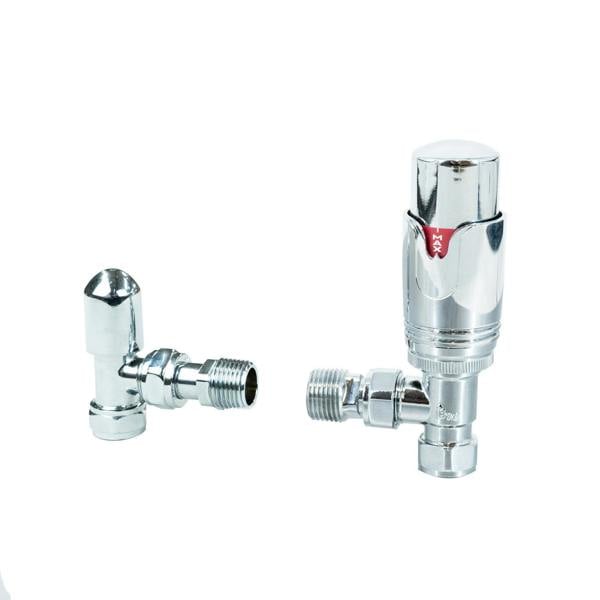

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Support & warranty

• Radiator guarantee length: 15 years
• Valve guarantee length: 10 years
