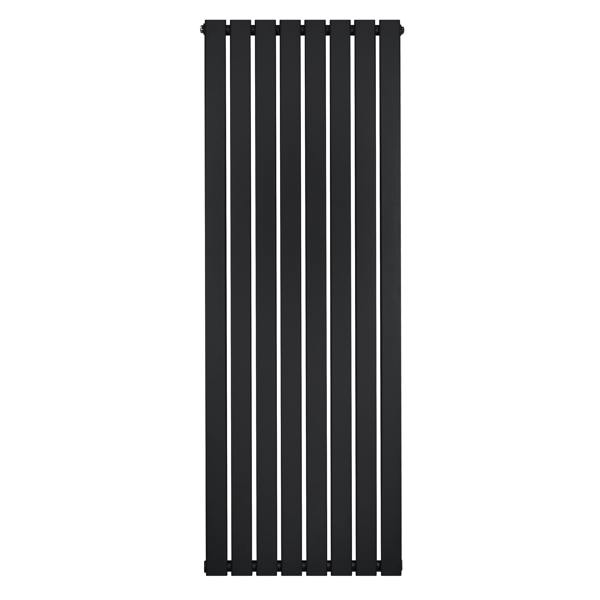

Monstershop Flat Single Column Radiator - 1600 x 560mm - Black

Bring a clean, architectural look to your heating with the Monstershop Flat Single Column Radiator in black. Measuring 1600mm high by 560mm wide, its slim 46mm depth and flat tube profile create a strong vertical statement that suits a wide range of interiors.

Made from 1.5mm carbon steel and finished with triple layered powder coating, it combines a durable build with a crisp, modern finish. Heat output is rated at 4195 BTU at 60 (1229 watts) and 3304 BTU at 50 (968 watts), with 8 columns formed from 60mm x 15mm steel tubes and a 10mm gap between tubes. Standard 0.5" BSP inlets/outlets support valve choice, while CE and UKCA certification and testing to BS EN 442 and ISO9001:2015 standards complete the specification.

Key features

• Flat single column radiator
• Size: 1600mm x 560mm
• 8 columns with 60mm x 15mm flat tubes
• Heat output: 4195 BTU at 60 (1229W); 3304 BTU at 50 (968W)
• 1.5mm carbon steel construction
• Triple layered powder coating finish
• Standard 0.5" BSP bore inlets/outlets
• 15-year guarantee

Specifications

• Colour: Black
• Weight: 22.5kg
• Height: 1600mm / 160cm / 63”
• Width: 560mm / 56cm / 22”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Number of columns: 8
• BTU rating @ 50: 3304
• BTU rating @ 60: 4195
• Watt rating @ 50: 968
• Watt rating @ 60: 1229
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 12m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
