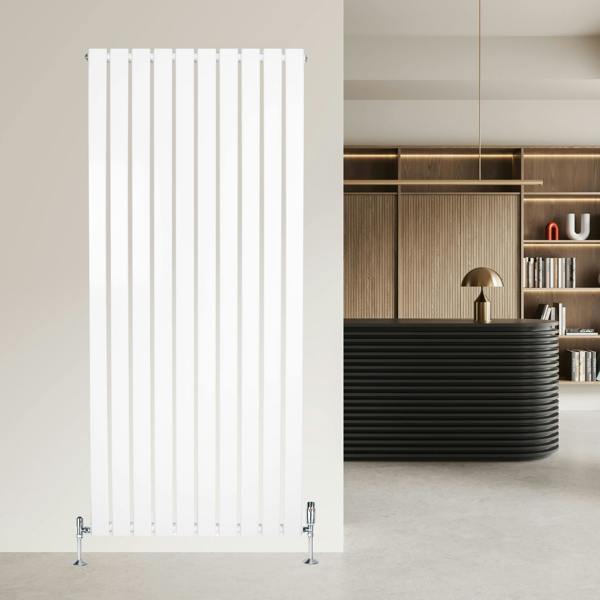

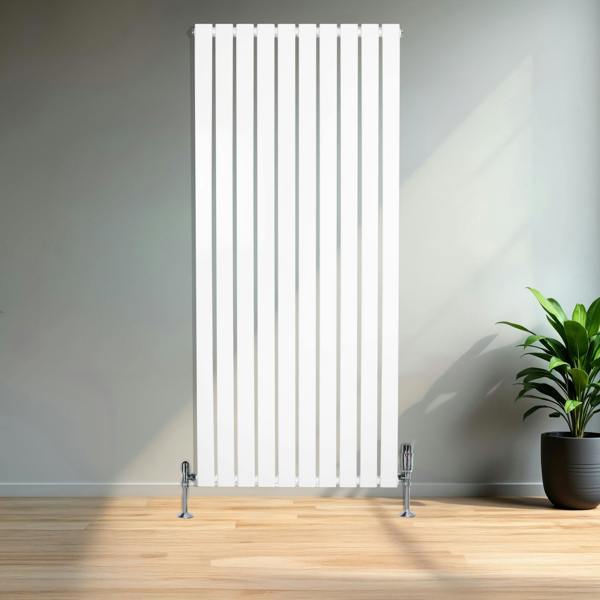

Monstershop Flat Single Column Radiator - 1600 x 700mm - White

Bring a clean, architectural look to your heating with the Monstershop Flat Single Column Radiator, a white single column radiator sized at 1600 x 700mm. Made from 1.5mm carbon steel and finished with triple layered powder coating, it offers a crisp, contemporary presence that suits a wide range of interiors.

With 10 columns and individual flat tubes measuring 60mm x 15mm, it delivers a BTU rating @ 60 of 5352 (1568 watts) and a BTU rating @ 50 of 4215 (1235 watts). Built for demanding everyday use, it supports a max working temperature of 95°C, max working pressure of 5 bar, and a test pressure of 6.5 bar. Standard 0.5" BSP bore inlets/outlets make it straightforward to pair with compatible valves, while the included brackets, fixing kit and flexible cleaning brush help keep installation and upkeep simple.

Key features

• Single column radiator with 10 columns
• Heat output: 5352 BTU @ 60 (1568 watts)
• Made from 1.5mm carbon steel
• Triple layered powder coating finish
• Standard 0.5" BSP bore inlets/outlets
• CE & UKCA certified
• 15-year guarantee

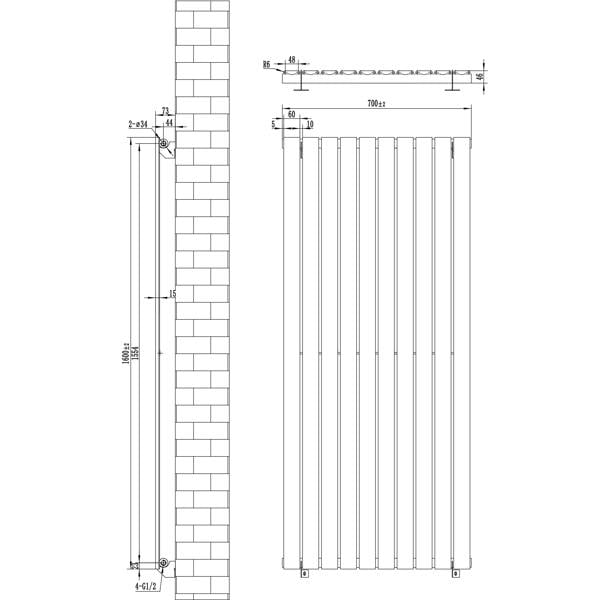

Specifications

• Colour: White
• Weight: 28.1kg
• Height: 1600mm / 160cm / 63”
• Width: 700mm / 70cm / 27.6”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• BTU rating @ 50: 4215
• BTU rating @ 60: 5352
• Watt rating @ 50: 1235
• Watt rating @ 60: 1568
• Max working temperature: 95°C
• Max working pressure: 5 bar
• Test pressure: 6.5 bar
• Recommended application area: 16m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
