Monstershop Flat Single Column Radiator & Valves – 1800mm x 420mm – Black

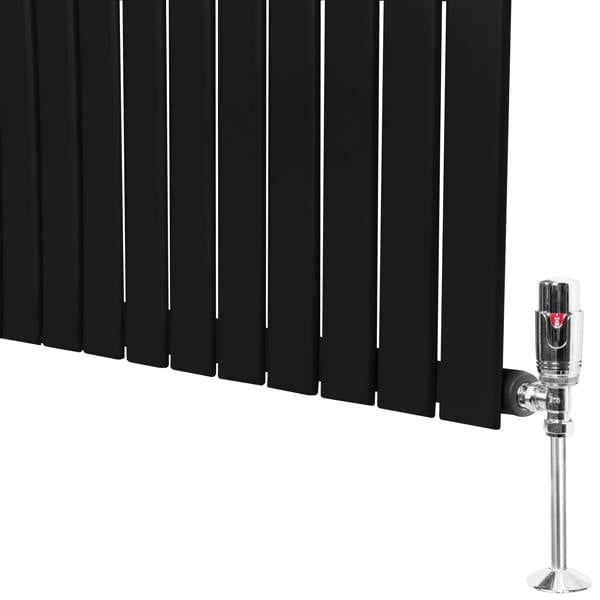

Bring a bold, architectural look to your heating with the MonsterShop Flat Single Column Radiator & Valves set. Finished in black with a triple layered powder coating, it creates a strong visual statement while offering a compact depth that suits a wide range of interiors. Measuring 1800mm high and 420mm wide, it’s supplied with a chrome-finished thermostatic valve set for a coordinated, practical installation.

Made from 1.5mm carbon steel, the 6-column design uses individual flat tubes sized 60mm x 15mm, with a 10mm gap between tubes. Heat output is rated at 2843 BTU @ 50 and 3614 BTU @ 60 (833W @ 50 and 1059W @ 60), with a recommended application area of 11m². Standard 0.5" BSP inlets/outlets support straightforward compatibility, while CE and UKCA certification and BS EN 442 testing complete the specification.

Key features

• MonsterShop flat single column radiator with thermostatic valve set
• Size: 1800mm x 420mm
• Colour: black
• 6-column construction with 60mm x 15mm flat tubes
• Triple layered powder coating finish
• Heat output: 3614 BTU @ 60 (1059W @ 60)
• Standard 0.5" BSP bore inlets/outlets
• Includes secure brackets, fixing kit and flexible cleaning brush
• Radiator guarantee length: 15 years
• Valve guarantee length: 10 years

Specifications

Radiator

• Material: 1.5mm carbon steel
• Weight: 19.2kg
• Height: 1800mm / 180cm / 70.9”
• Width: 420mm / 42cm / 16.5”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• BTU rating @ 50: 2843
• BTU rating @ 60: 3614
• Watt rating @ 50: 833
• Watt rating @ 60: 1059
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 11m²
• Inlets/outlets size: standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: all UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Type: thermostatic
• Style: angled
• Control style: rotary knob
• Material: brass
• Finish: polished chrome
• Weight: 0.9kg
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Flat Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
