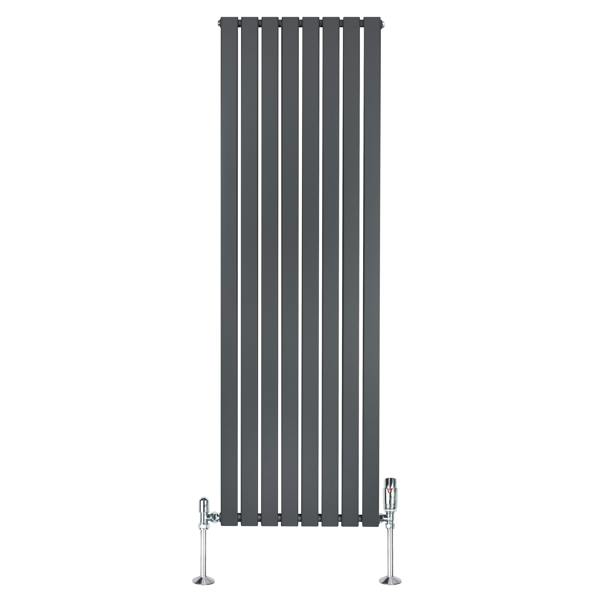

Monstershop Flat Single Column Radiator & Valves – 1800mm x 560mm – Anthracite Grey

Bring a crisp, architectural look to your heating with the Monstershop Flat Single Column Radiator & Valves set. Finished in anthracite grey and supplied with a polished chrome thermostatic valve set, it pairs a slim, vertical profile with practical control for modern interiors.

Made from 1.5mm carbon steel with a triple layered powder coating, the radiator measures 1800mm high and 560mm wide, with 8 columns formed from 60mm x 15mm flat tubes. Heat output is rated at 4820 BTU at 60 (1412 watts) and 3792 BTU at 50 (1111 watts), with a recommended application area of 14m². Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems, while included brackets and a fixing kit keep installation straightforward. The angled thermostatic valves use a rotary knob with a 6–28 degrees temperature range and include an integrated lock shield valve for water flow regulation.

Key features

• Flat single column radiator with 8 columns
• Anthracite grey finish with triple layered powder coating
• Includes chrome thermostatic angled valve set
• Standard 0.5" BSP bore inlets/outlets
• Supplied with 4 secure brackets and fixing kit
• Flexible cleaning brush included
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Material: 1.5mm carbon steel
• Weight: 25.6kg
• Dimensions: 1800mm (H) x 560mm (W)
• Radiator depth: 46mm; depth with bracket: 73mm
• Gap between tubes: 10mm
• Individual flat tube size: 60mm x 15mm
• BTU rating @ 50: 3792; BTU rating @ 60: 4820
• Watt rating @ 50: 1111; watt rating @ 60: 1412
• Max working temperature: 95°C
• Max working pressure: 5 Bar; test pressure: 6.5 Bar
• Distance from wall to centre of inlet: 44mm
• Valve-to-valve height: 1754mm
• Recommended application area: 14m²
• Compatibility: all UK & EU heating systems

Valves

• Material: brass
• Finish: polished chrome
• Weight: 0.9kg
• Type: thermostatic; control style: rotary knob
• Style: angled
• Temperature range: 6–28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
