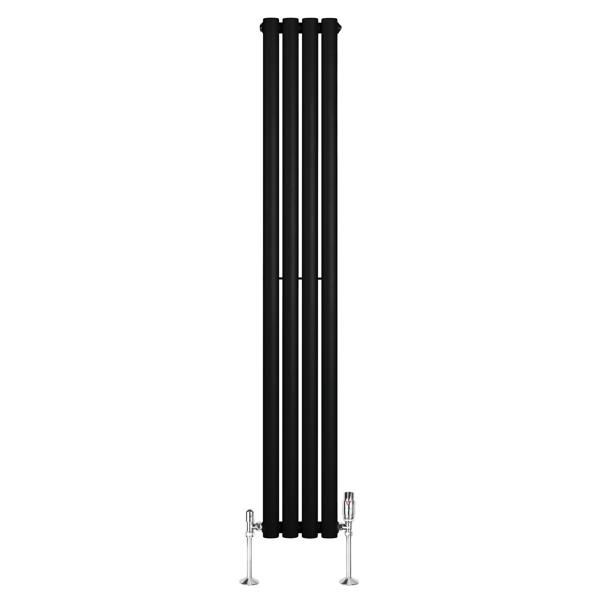

Monstershop Oval Single Column Radiator & Valves – 1600mm x 240mm – Black

A bold, architectural update for modern interiors, the Monstershop Oval Single Column Radiator & Valves combines a tall black radiator with a polished chrome thermostatic valve set. Measuring 1600mm x 240mm, it brings a strong vertical presence to hallways, bedrooms and living spaces while keeping the overall depth compact.

Made from 1.5mm carbon steel and finished in a triple layered powder coating, the radiator is built for long-term use and everyday durability. Heat output is rated at 1512 BTU at 50 and 1919 BTU at 60 (443W at 50 and 562W at 60), with a recommended application area of 6m². Standard 0.5" BSP inlets/outlets support straightforward compatibility, and the included flexible cleaning brush helps keep the oval tubes looking their best.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• Radiator size: 1600mm x 240mm
• Black finish with triple layered powder coating
• Heat output: 1919 BTU at 60 (562W at 60)
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valves with rotary knob control
• Temperature range: 6–28 degrees
• 15-year guarantee on the radiator

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Weight: 9.6kg
• Finish: Triple layered powder coating
• Height: 1600mm / 160cm / 63”
• Width: 240mm / 24cm / 9.4”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 4
• BTU rating at 50: 1512
• BTU rating at 60: 1919
• Watt rating at 50: 443
• Watt rating at 60: 562
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 6m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6–28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Rackhams Reference : 4AKJQ2E751
