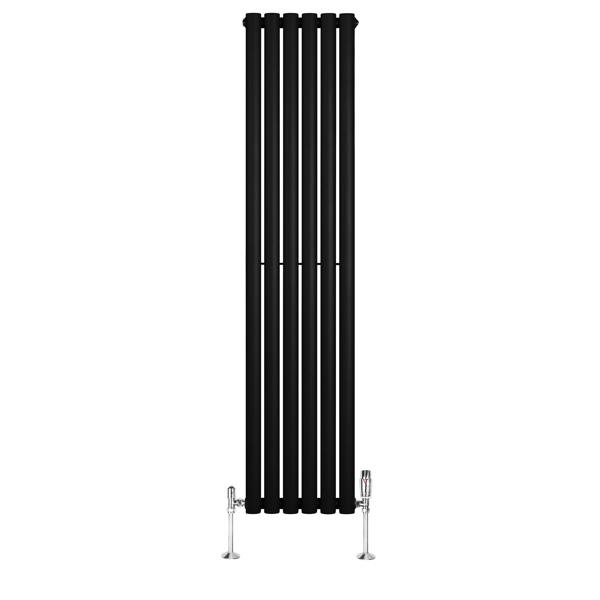

Monstershop Oval Single Column Radiator & Valves – 1600mm x 360mm – Black

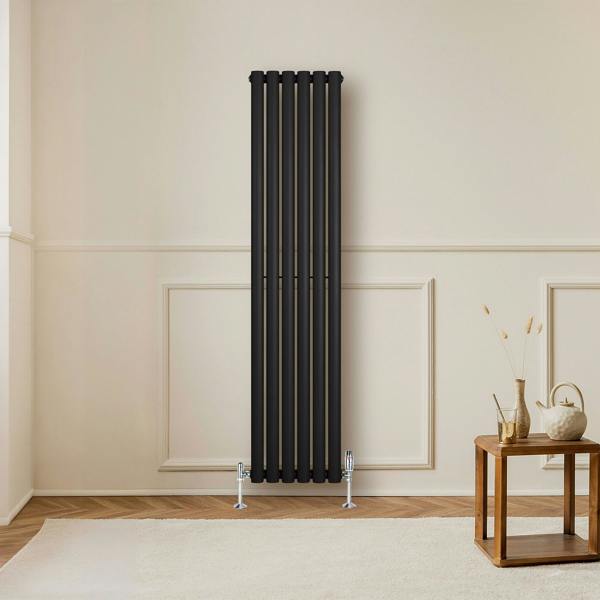

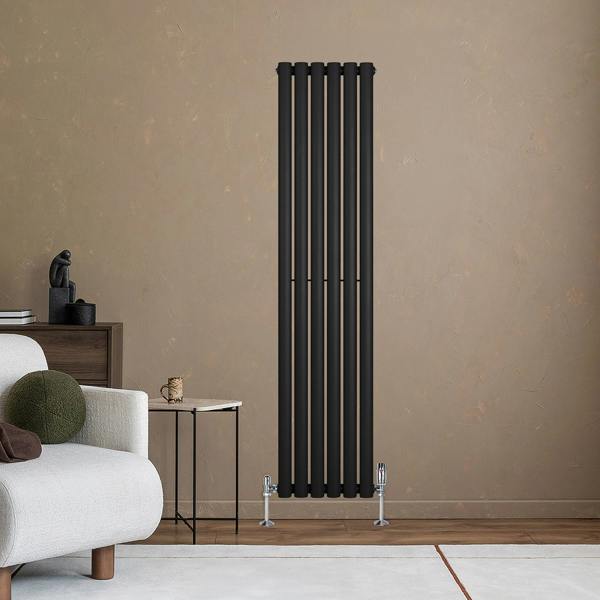

A bold, architectural update for modern interiors, the Monstershop Oval Single Column Radiator & Valves set pairs a black, triple-layer powder-coated radiator with a polished chrome thermostatic valve set. Measuring 1600mm x 360mm, it brings a tall, space-conscious profile that suits a wide range of rooms while keeping the look clean and considered.

Made from 1.5mm carbon steel, the 6-column design uses individual oval tubes sized 50mm x 25mm, with a 10mm gap between tubes. Heat output is rated at 2881 BTU at 60 (844W) and 2270 BTU at 50 (665W). Standard 0.5" BSP inlets/outlets support straightforward integration, with compatibility across UK & EU heating systems. CE and UKCA certification is included, alongside testing to BS EN 442 and ISO9001:2015 standards, and a 15-year guarantee.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• 1600mm x 360mm radiator size
• 6-column radiator construction
• Triple layered powder coating in black
• Heat output: 2881 BTU at 60 (844W) and 2270 BTU at 50 (665W)
• Standard 0.5" BSP bore inlets/outlets
• Thermostatic angled valves with rotary knob control and 6–28 degrees temperature range
• 15-year radiator guarantee and 10-year valve guarantee

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 14.9kg
• Height: 1600mm / 160cm / 63”
• Width: 360mm / 36cm / 14.2”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• BTU rating @ 50: 2270
• BTU rating @ 60: 2881
• Watt rating @ 50: 665
• Watt rating @ 60: 844
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 8m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Type: Thermostatic
• Style: Angled
• Control style: Rotary knob
• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Temperature range: 6–28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
