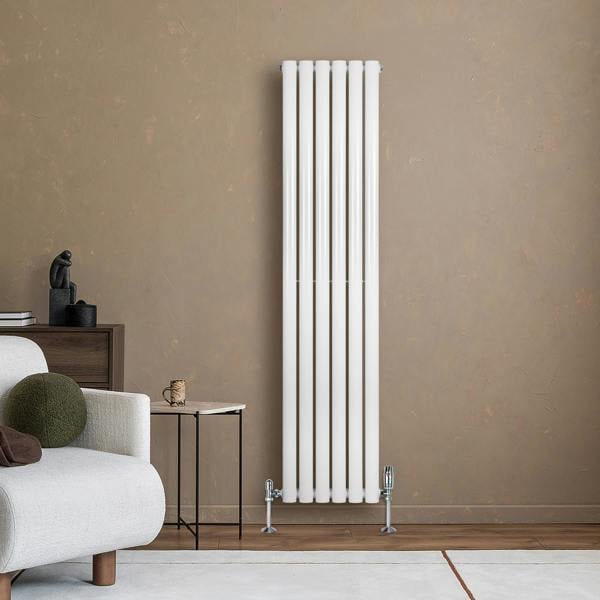

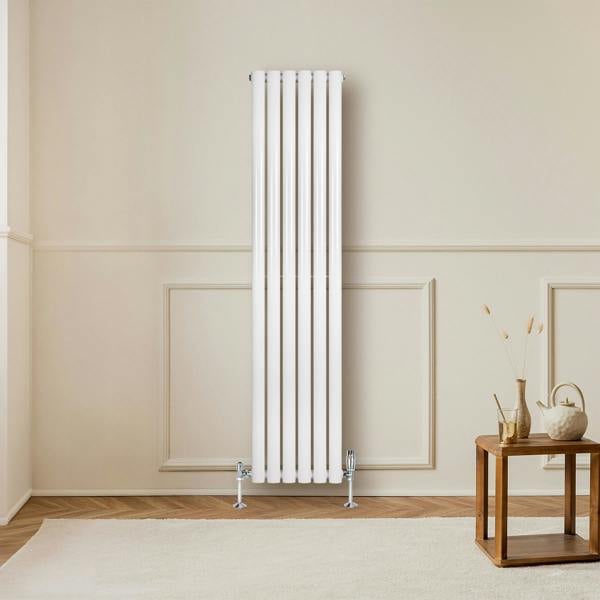

Monstershop Oval Single Column Radiator & Valves – 1600mm x 360mm – White

A clean, architectural look meets practical heating control with the Monstershop Oval Single Column Radiator & Valves set. Finished in white with a triple layered powder coating, this 1600mm x 360mm radiator brings a crisp, contemporary presence to a range of interiors, while the included polished chrome thermostatic valve set adds a refined contrast.

Built from 1.5mm carbon steel and formed with oval tubes sized 50mm x 25mm across 6 columns, it delivers a BTU rating @ 60 of 2881 (844W @ 60). The angled thermostatic valves use a rotary knob for adjustment across a 6–28 degrees range, with an integrated lock shield valve to regulate water flow. Supplied with brackets, a fixing kit and a flexible cleaning brush, it’s supported by CE & UKCA certification and tested to BS EN 442 and ISO9001:2015 standards.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• 1600mm x 360mm radiator size
• White finish with triple layered powder coating
• 6-column design with 50mm x 25mm oval tubes
• BTU rating @ 60: 2881; watt rating @ 60: 844
• Standard 0.5" BSP bore inlets/outlets
• Angled, polished chrome thermostatic valves with rotary knob control
• Radiator guarantee length: 15 years; valve guarantee length: 10 years

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 14.9kg
• Height: 1600mm / 160cm / 63”
• Width: 360mm / 36cm / 14.2”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 6
• BTU rating @ 50: 2270
• BTU rating @ 60: 2881
• Watt rating @ 50: 665
• Watt rating @ 60: 844
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 8m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
