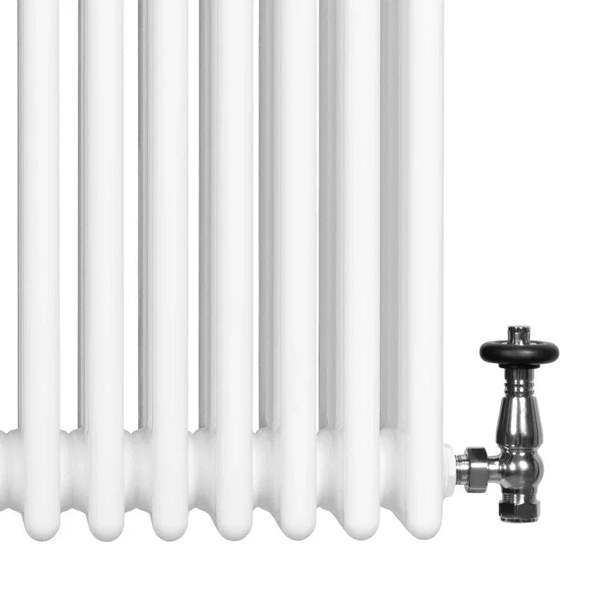

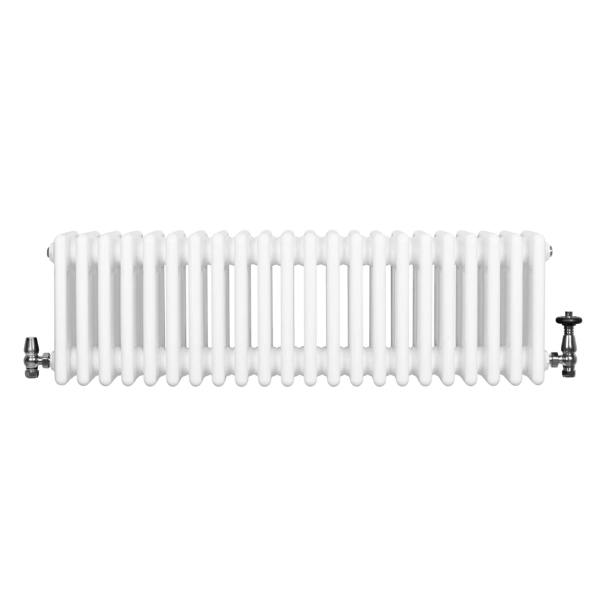

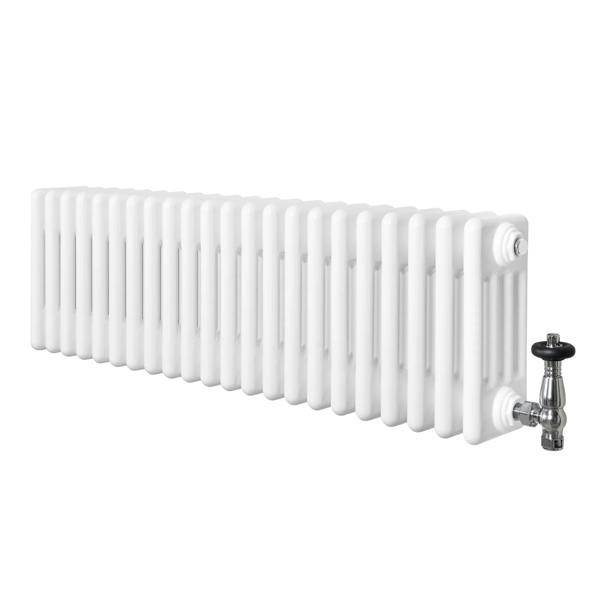

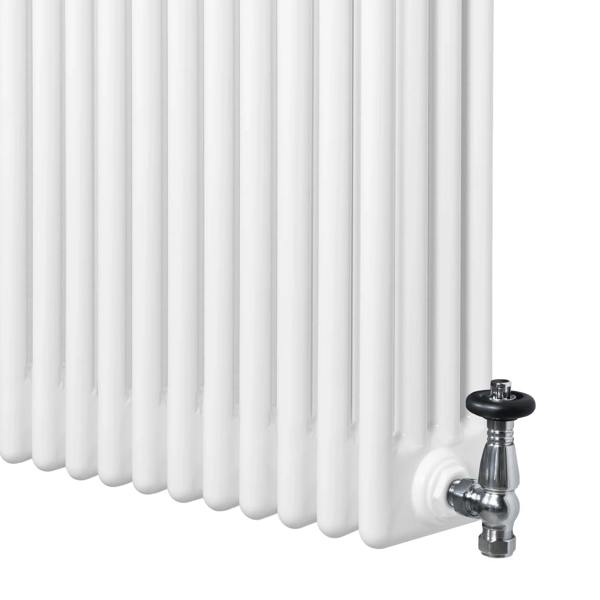

Monstershop Traditional 4 Column Radiator & Valves - 300 x 1010mm - White

Bring a classic look to modern heating with the Monstershop Traditional 4 Column Radiator & Valves, a horizontal radiator finished in white. Made from 1.5mm carbon steel and coated with a triple layered powder finish, it pairs a traditional column profile with a clean, architectural presence suited to a wide range of interiors.

Measuring 300mm high and 1010mm wide, this 22-column radiator is supplied with a chrome thermostatic valve set in an angled style. Temperature control is handled via a rotary knob with a 6–28°C range, while the integrated lockshield valve supports water flow regulation. CE and UKCA certified and tested to BS EN 442 and ISO9001:2015 standards, it’s supplied with fixtures and fittings for straightforward fitting, plus a flexible cleaning brush for easy upkeep.

Key features

• Traditional 4 column horizontal radiator
• 22-column design
• Heat output: 3802 BTU @ 60 (1114W @ 60)
• White finish with triple layered powder coating
• Standard 0.5" BSP inlet/outlet size
• Supplied with angled chrome thermostatic valve set
• Radiator guarantee length: 15 years
• Valve guarantee length: 10 years

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Weight: 26.9kg
• Height: 300mm / 30cm / 11.8”
• Width: 1010mm / 101cm / 39.8”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 22
• BTU rating @ 50: 2990
• BTU rating @ 60: 3802
• Watt rating @ 50: 876
• Watt rating @ 60: 1114
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 11m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 220mm / 22cm / 8.7”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

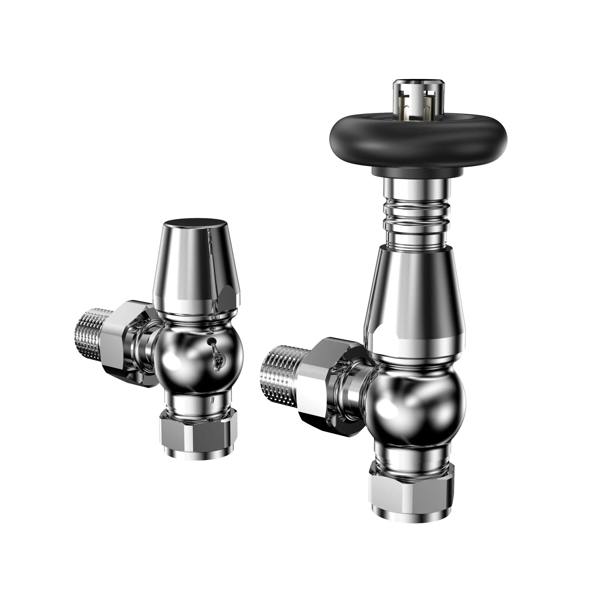

Valves

• Colour: Silver chrome
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
