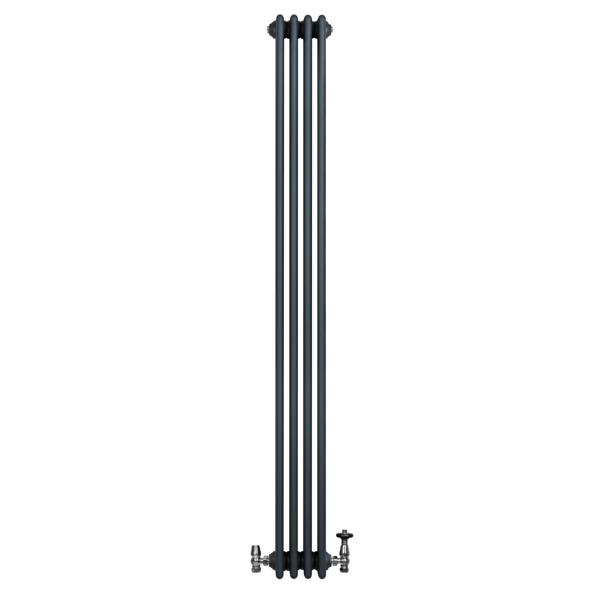

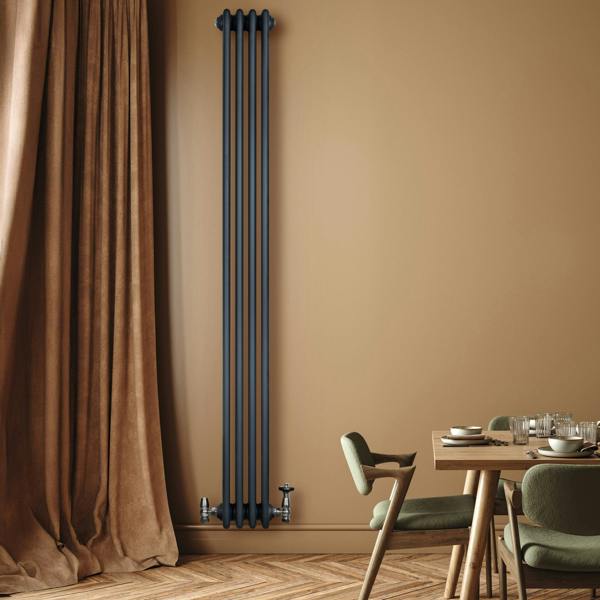

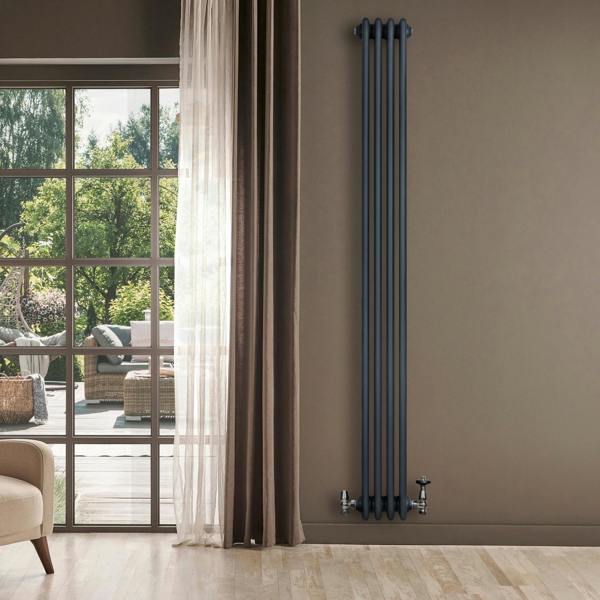

Monstershop Traditional 4 Column Radiator & Valves - 1800 x 200mm - Anthracite Grey

Bring a refined, architectural look to your heating with the MonsterShop Traditional 4 Column Radiator & Valves in anthracite grey. This vertical radiator measures 1800 x 200mm and is made from premium 1.5mm carbon steel, finished with a triple layered powder coating for a clean, contemporary appearance.

With 4 columns and 25mm steel tubes, it delivers a heat output of 3931 BTU at 60 (3085 BTU at 50), making it a strong option for spaces up to 12m². Supplied with a chrome thermostatic valve set in an angled style, temperature control is handled via a rotary knob with a 6–28 degrees range, while the included lockshield valve helps regulate water flow. Standard 0.5" BSP inlets/outlets support straightforward integration with UK and EU heating systems, and fixtures, fittings and a flexible cleaning brush are included.

Key features

• Traditional style 4 column vertical radiator
• Size: 1800 x 200mm
• Heat output: 3931 BTU at 60
• Anthracite grey finish with triple layered powder coating
• Standard 0.5" BSP inlet/outlet size
• Supplied with angled chrome thermostatic valve set
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: Anthracite Grey
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Weight: 25.9kg
• Height: 1800mm / 180cm / 70.9”
• Width: 200mm / 20cm / 7.9”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 4
• BTU rating @ 50: 3085
• BTU rating @ 60: 3931
• Watt rating @ 50: 904
• Watt rating @ 60: 1152
• Max working temperature: 95°C
• Max working pressure: 12 Bar
• Test pressure: 15.6 Bar
• Recommended application area: 12m²
• Inlets/outlets size: Standard 0.5" BSP Bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 1720mm / 172cm / 67.7”
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO9001:2015 Standards
• CE certificate: CE & UKCA

Valves

• Colour: Silver Chrome
• Material: Powder Coated Brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary Knob
• Type: Thermostatic
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 Years

In the box

• 1 x Traditional 4 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
