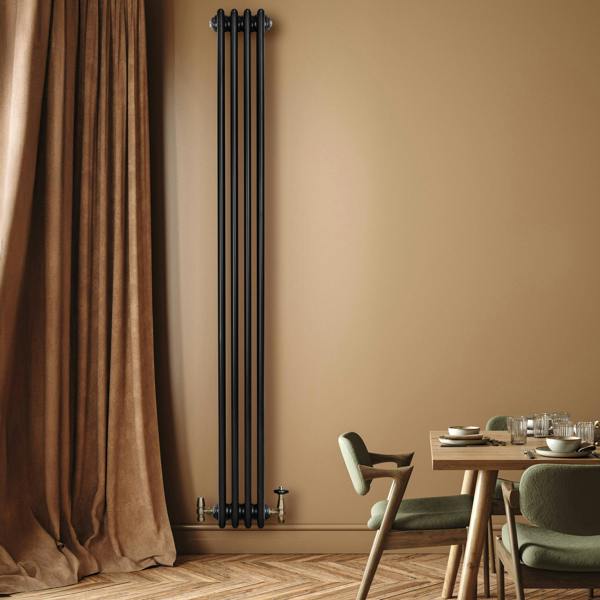

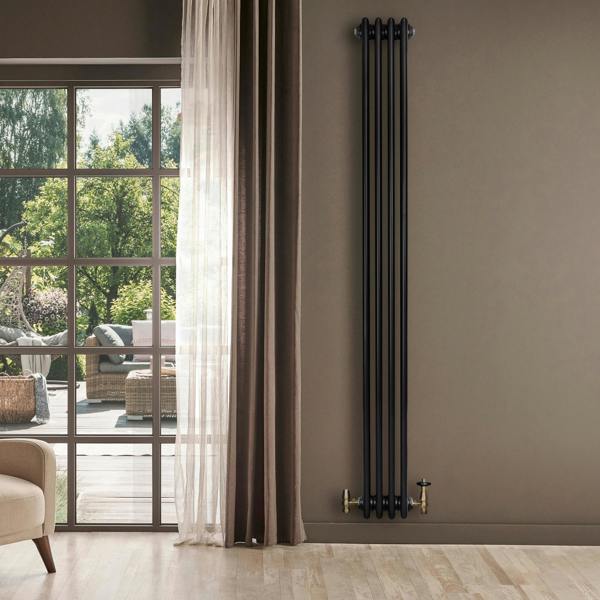

Monstershop Traditional 4 Column Radiator & Valves - 1800 x 200mm - Black

A bold, vertical statement piece for modern and traditional interiors alike, the Monstershop Traditional 4 Column Radiator & Valves brings classic column styling in a sleek black finish. Made from 1.5mm carbon steel and standing 1800mm high by 200mm wide, it suits spaces where wall height is available and a slim footprint is preferred.

Heat output is rated at 3931 BTU @ 60 (1152W @ 60), with 4 columns formed from 25mm steel tubes and a 20mm gap between tubes. A triple layered powder coating supports long-term durability, while the included flexible cleaning brush helps keep the finish looking its best. Supplied with a satin brass thermostatic valve set in an angled style, temperature control is handled via a rotary knob with a 6–28 degrees range, alongside an integrated lockshield valve for regulating water flow. CE & UKCA certification, BS EN 442 testing, and a 15-year guarantee complete the specification.

Key features

• Traditional style 4 column vertical radiator
• Size: 1800mm (H) x 200mm (W)
• Heat output: 3931 BTU @ 60; 1152W @ 60
• Triple layered powder coating in black
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled brass thermostatic valve set (rotary control)
• Includes brackets, fixing kit and flexible cleaning brush
• CE & UKCA certified; tested to BS EN 442
• 15-year guarantee (radiator); 10-year guarantee (valves)

Specifications

Radiator

• Material: 1.5mm carbon steel
• Colour: Black
• Weight: 25.9kg
• Finish: Triple layered powder coating
• Height: 1800mm / 180cm / 70.9”
• Width: 200mm / 20cm / 7.9”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Number of columns: 4
• Individual tube size: 25mm / 2.5cm / 1”
• Gap between tubes: 20mm / 2cm / 0.8”
• BTU rating @ 50: 3085
• BTU rating @ 60: 3931
• Watt rating @ 50: 904
• Watt rating @ 60: 1152
• Max working temperature: 95°C
• Max working pressure: 12 Bar
• Test pressure: 15.6 Bar
• Recommended application area: 12m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 1720mm / 172cm / 67.7”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Type: Thermostatic
• Style: Angled
• Control style: Rotary knob
• Colour: Brass
• Material: Powder coated brass
• Weight: 0.9kg
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Guarantee length: 10 Years

In the box

• 1 x Traditional 4 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set
