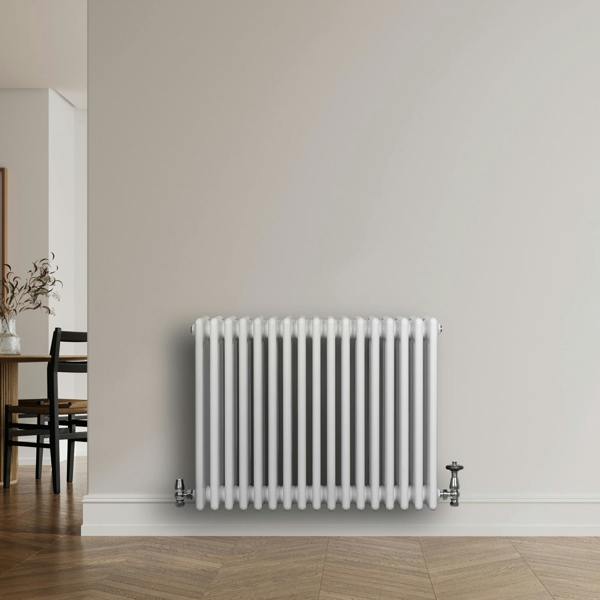

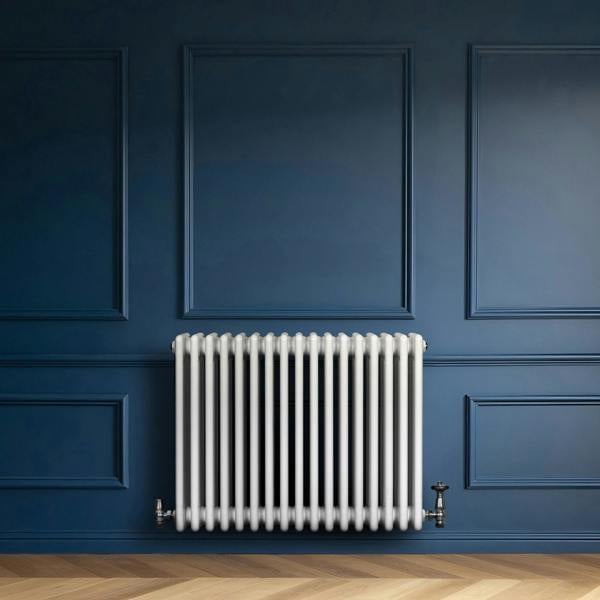

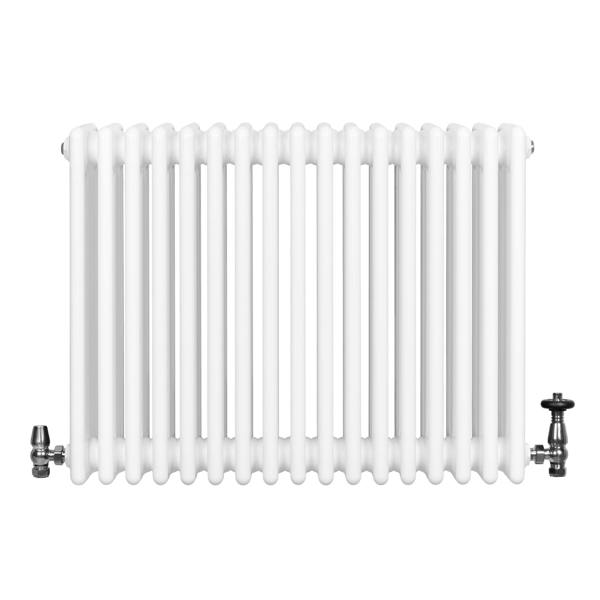

Monstershop Traditional 4 Column Radiator & Valves - 600 x 785mm - White

Bring a classic look to your heating with the Monstershop Traditional 4 Column Radiator & Valves, a horizontal radiator finished in white. Made from 1.5mm carbon steel and coated with a triple layered powder finish, it pairs a traditional column profile with a clean, contemporary colour choice for a wide range of interiors.

Measuring 600mm high and 785mm wide, this 17-column radiator delivers a BTU rating of 3373 at 60 (756 watts) and 2655 at 50 (595 watts). It supports a maximum working temperature of 95°C and a maximum working pressure of 12 bar, with a 15.6 bar test pressure. Standard 0.5" BSP inlets/outlets and a supplied chrome thermostatic valve set complete the installation, with angled valves, rotary control and a 6–28°C temperature range.

Key features

• Traditional style horizontal radiator with 17 columns
• White finish with triple layered powder coating
• Made from 1.5mm carbon steel
• BTU rating @ 60: 3373; watt rating @ 60: 756
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled chrome thermostatic valve set (6–28°C)
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Weight: 38.6kg
• Finish: Triple layered powder coating

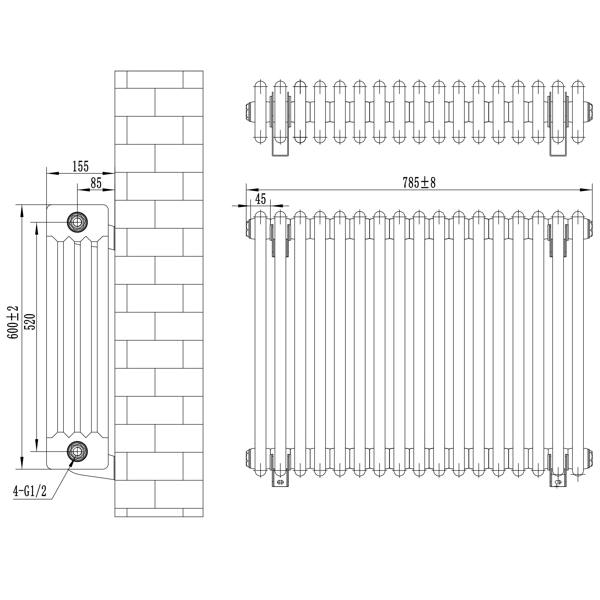

• Height: 600mm / 60cm / 23.6”
• Width: 785mm / 78.5cm / 30.9”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 17
• BTU rating @ 50: 2655
• BTU rating @ 60: 3373
• Watt rating @ 50: 595
• Watt rating @ 60: 756
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 10m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 520mm / 52cm / 20.5”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Colour: Silver chrome
• Material: Powder coated brass
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6-28 degrees
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
