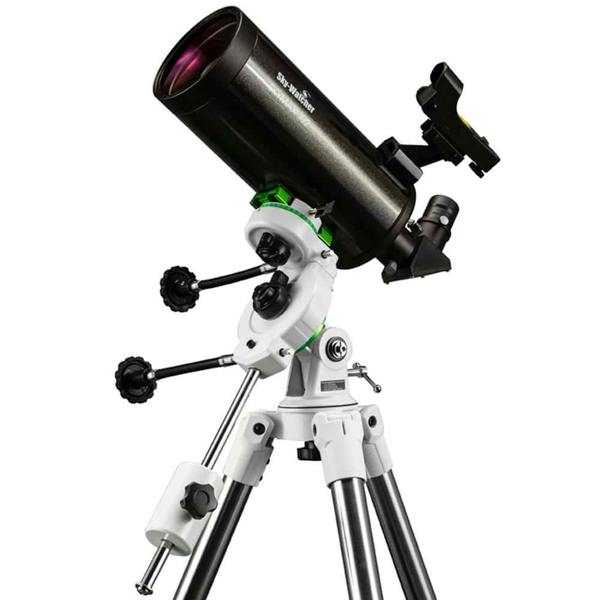

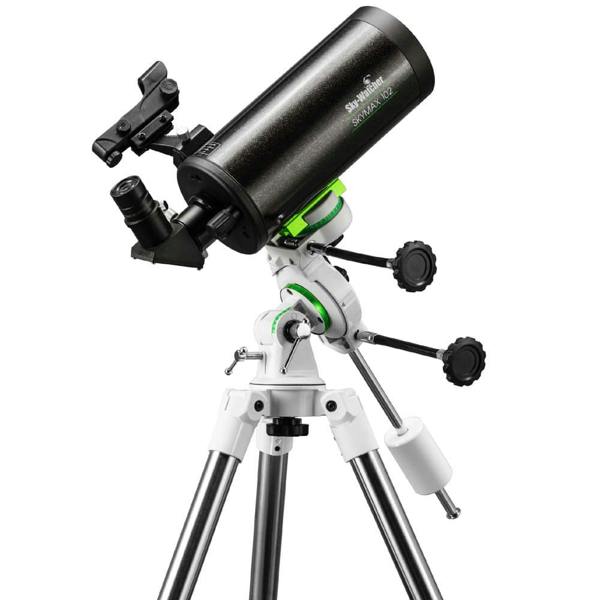

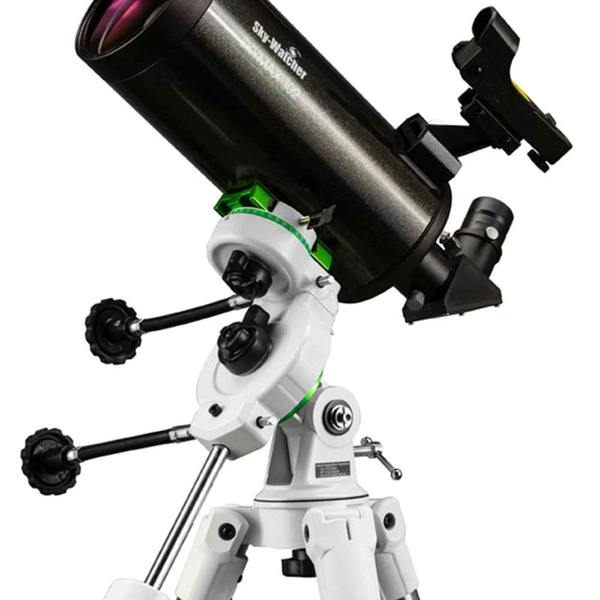

Sky Watcher Starquest DX102 MAK Astronomy Telescope with DX Deluxe EQ Mount

Compact in form yet long in focal length, the Sky-Watcher Starquest DX102 MAK is a 102mm Maksutov-Cassegrain telescope supplied as a complete kit with the Starquest DX Deluxe German equatorial mount. Its 1300mm focal length and f/12. 7 optical system suit detailed lunar and planetary observing, while the equatorial mount brings controlled manual tracking through slow-motion cables on both axes.

This package combines Sky-Watcher optics with a fully adjustable stainless steel tripod, accessory tray, 10mm and 20mm eyepieces, a red dot finder, a 90 star diagonal and a universal smartphone adaptor. The mount includes setting circles, clutches on both right ascension and declination axes, a 45mm dovetail saddle and a 1kg counterweight, with optional RA motor drive compatibility for auto-tracking.

Key features

• 102mm Maksutov-Cassegrain optical design
• 1300mm focal length with f/12. 7 focal ratio
• Starquest DX Deluxe German equatorial mount
• Magnifications with supplied eyepieces: x65 and x130
• Highest practical power: x204
• Primary and secondary mirrors with Radiant Aluminium Quartz coating providing up to 94% reflectivity

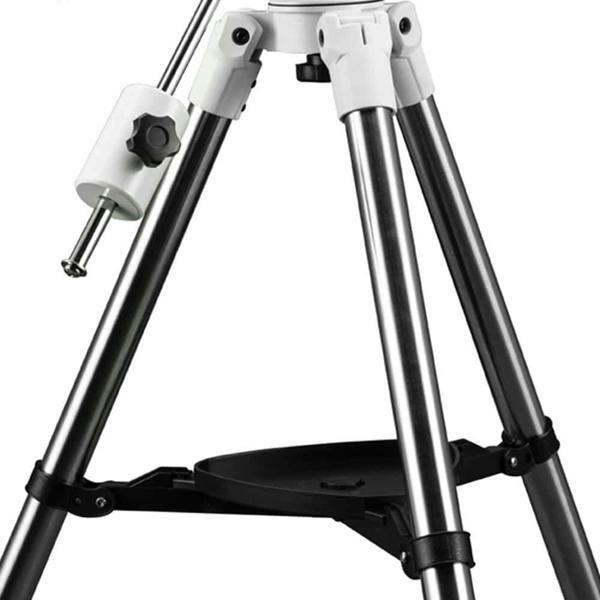

• Fully adjustable stainless steel tripod with accessory tray
• Universal smartphone adaptor fits smartphones 54-90mm wide
• 1-year warranty
• Model number: 10287

Specifications

Optics

• Optical design: Maksutov-Cassegrain
• Aperture: 102mm
• Focal length: 1300mm
• Focal ratio: f/12. 7
• Highest practical power: x204
• Magnifications with supplied eyepieces: x65 and x130
• Eyepieces supplied: 10mm and 20mm
• Star diagonal size: 1. 25-inch
• Finder: red dot finder
• Primary and secondary mirrors with Radiant Aluminium Quartz coating providing up to 94% reflectivity

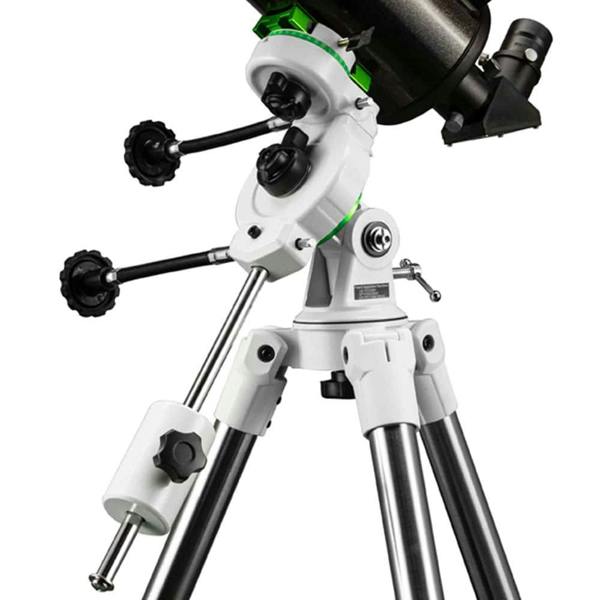

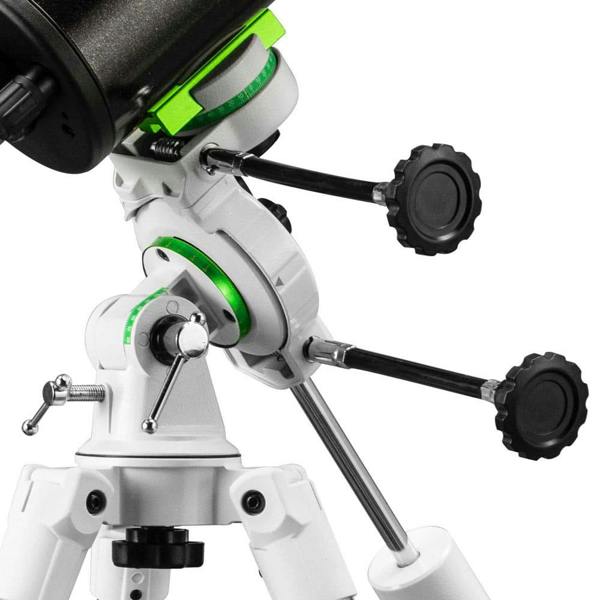

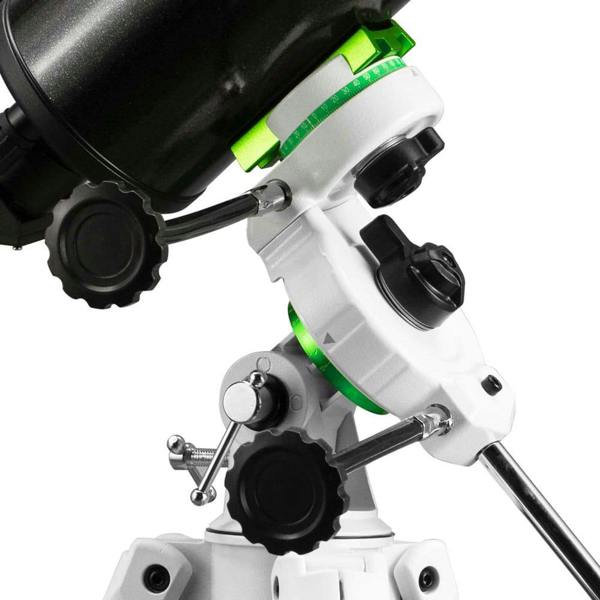

Mount

• Mount type: Starquest DX Deluxe German equatorial
• Mount payload capacity: 5kg
• 360 gearing on right ascension and declination axes
• Smooth slow-motion cable controls to both RA and DEC axes
• Worm and helical gear drive
• RA gear diameter: 95mm with 93 teeth
• DEC gear diameter: 62mm with 60 teeth
• Clutches provided on both RA and DEC axes
• Setting circles provided on both axes
• Dovetail saddle: 45mm
• Counterweight: 1kg
• Optional RA motor drive available: 20940
• Mount head weight: 1. 4kg
• Tripod weight: 2. 4kg
• Product weight: 11. 00kg

Sizing

Tripod extendable from 680mm to 1160mm.

In the box

• 10mm eyepiece
• 20mm eyepiece
• Red dot finder
• 90 star diagonal
• Universal smartphone adaptor
• Starquest DX Deluxe equatorial mount
• Fully adjustable stainless steel tripod
• Accessory tray
• Counterweight bar with 1kg counterweight

Support & warranty

1-year warranty.
