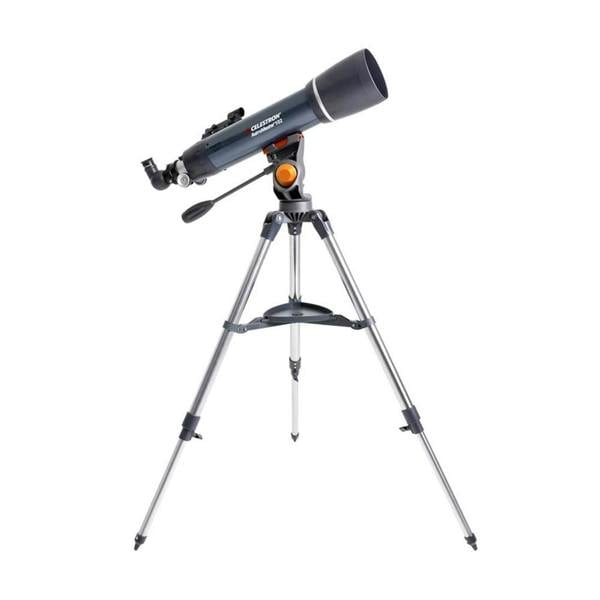

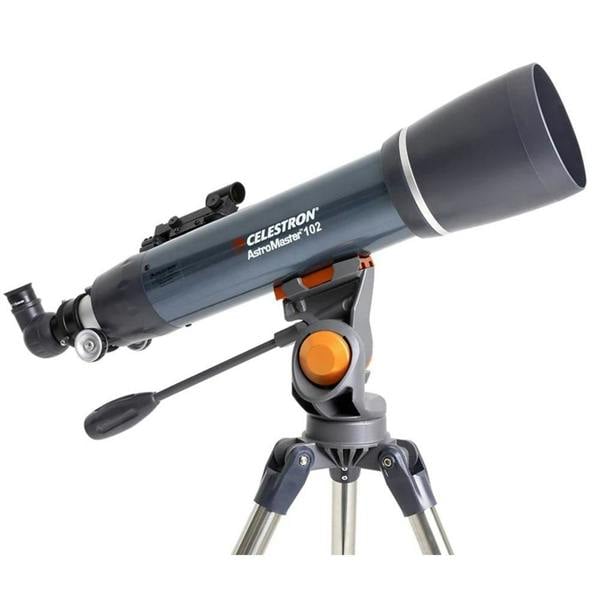

Celestron Astromaster 102AZ Refractor Telescope

Equally at home on the horizon and under the night sky, the Celestron AstroMaster 102AZ is a refractor telescope with a 102mm aperture, 660mm focal length and f/6. 5 focal ratio on a manual alt-azimuth mount. Its upright-image 90 diagonal supports terrestrial viewing, while the fully coated all-glass optics and supplied 20mm and 10mm eyepieces provide 33x and 66x magnification for lunar, planetary and wider sky observation.

This beginner-friendly model pairs straightforward handling with a practical, no-tool setup. A pan handle control allows smooth manual pointing, and the adjustable steel tripod includes an accessory tray. The optical tube is aluminium, with a built-in red dot finder and a CG-5 dovetail bar. Celestron Starry Night Basic Edition software and the SkyPortal app are also included.

Key features

• 102mm refractor telescope with 660mm focal length
• Manual alt-azimuth mount with pan handle control
• Fully coated all-glass optics
• Supplied 20mm and 10mm eyepieces providing 33x and 66x magnification
• 90 erect image diagonal with 1. 25-inch fitting
• Built-in red dot finder
• Adjustable steel tripod with accessory tray
• Includes Celestron Starry Night Basic Edition software and SkyPortal app
• Model number: 22065-CGL

Specifications

Optics

• Optical design: Refractor
• Aperture: 102mm (4")
• Focal length: 660mm (26")
• Focal ratio: f/6. 5
• Highest useful magnification: 241x
• Lowest useful magnification: 15x
• Limiting stellar magnitude: 12. 5
• Resolution (Rayleigh): 1. 37 arc seconds
• Resolution (Dawes): 1. 14 arc seconds
• Optical coatings: Fully coated
• Optical tube: Aluminium
• Optical tube weight: 2. 08kg

Eyepieces and finder

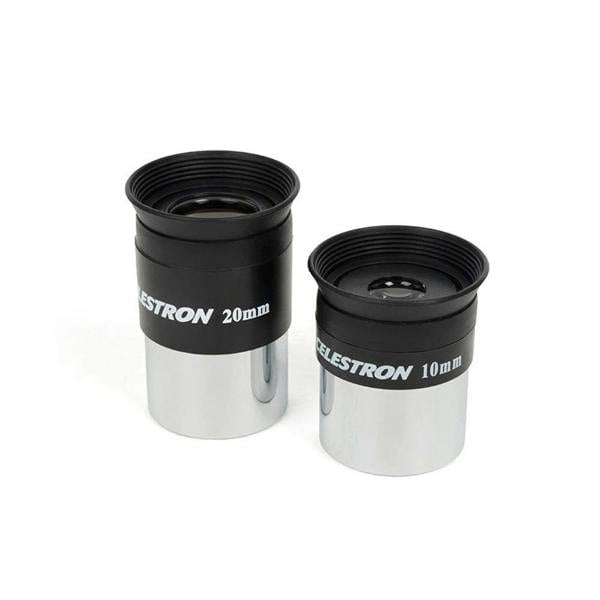

• Eyepiece 1 focal length: 20mm (0. 78")
• Eyepiece 1 magnification: 33x
• Eyepiece 2 focal length: 10mm (0. 4")
• Eyepiece 2 magnification: 66x
• Finderscope: Built-in red dot finder
• Star diagonal: Erect image, 90 (1. 25")
• Barlow lens: Not included

Mount

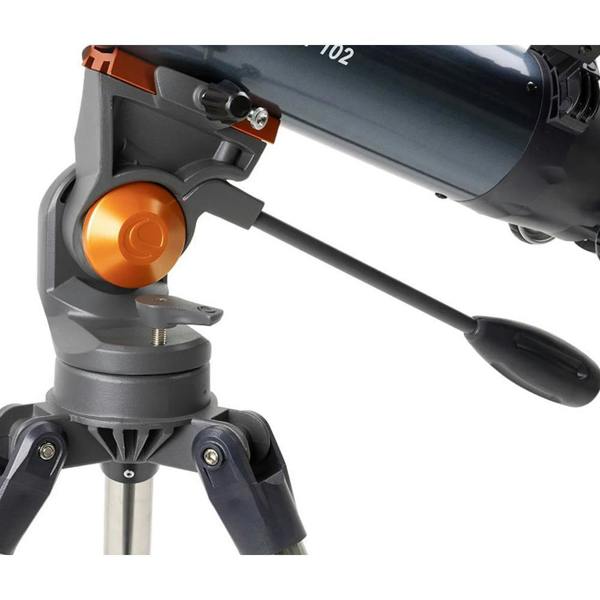

• Mount type: Manual alt-azimuth
• Slew speeds: Manual
• Tripod leg diameter: 31. 75mm (1. 25") steel
• Accessory tray: Yes
• Dovetail: CG-5 dovetail bar
• Dovetail compatibility: CG-5 saddle plate
• Tripod weight: 3. 44kg
• Total telescope kit weight: 5. 53kg

Sizing

Optical tube length: 711mm (28")

• Height adjustment range (includes mount and tripod): 812. 8mm - 1295. 4mm (32" - 51")

In the box

• Optical tube
• Tripod and mount (preassembled)
• 20mm eyepiece
• 10mm eyepiece
• Red-dot finderscope
• Erect image 90 diagonal
• Celestron Starry Night Basic Edition software

Support & warranty

• 2-year warranty

Safety information

• Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
• Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
• Never leave your optic unsupervised.
• Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
