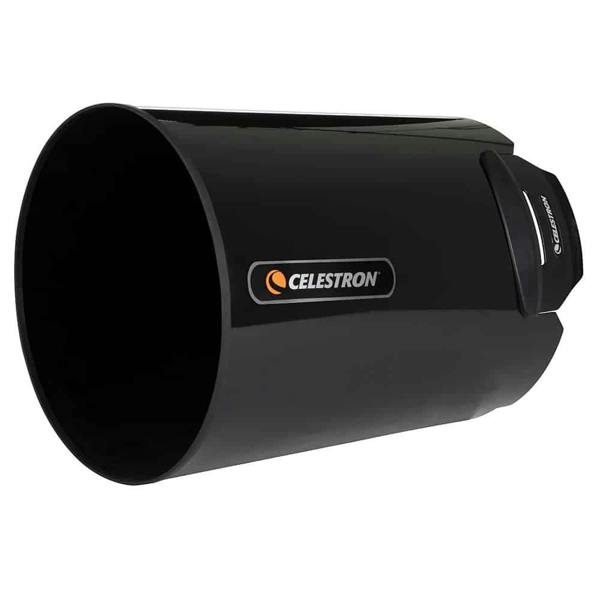

Celestron Aluminum Dew Shield with Cover Cap 14"

For larger Celestron optical tubes, this aluminium dew shield with cover cap adds a precise, rigid fit and practical protection in the field. Made for 14-inch EdgeHD, 36cm RASA and Schmidt-Cassegrain telescope tubes produced after 2006, it helps reduce dew formation on the Schmidt corrector lens while also limiting stray light entering the optical system.

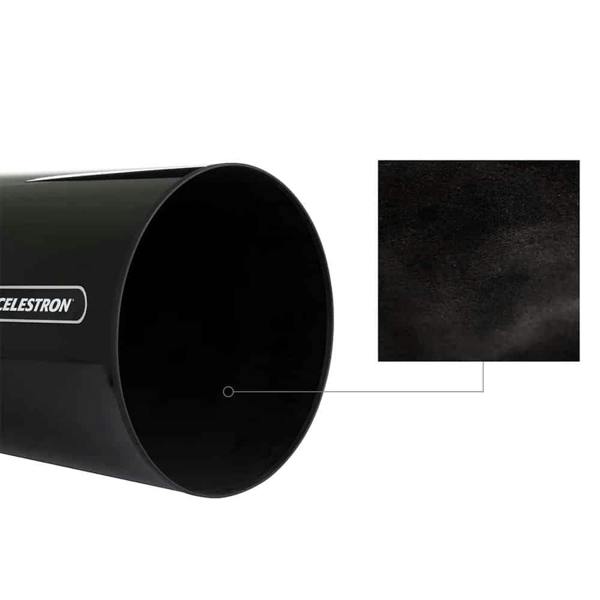

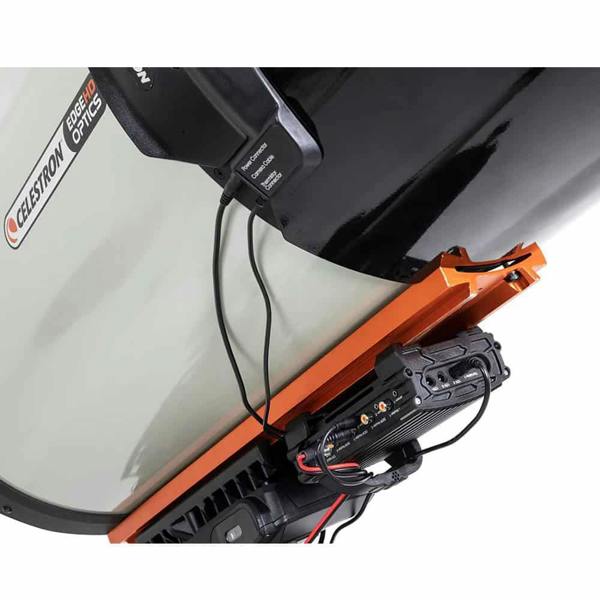

The metal outer body resists folding, flexing and distortion, while the velvet-lined interior absorbs excess stray light and moisture to support improved contrast for viewing and astroimaging. Two adjustable clips secure the shield to the telescope tube for straightforward fitting and removal. A built-in cable management slot at the base keeps essential cables neatly routed when using Fastar/Hyperstar configurations or Celestron Dew Heater Rings, and openings at the top and bottom accommodate dovetail rails. The included aluminium cover cap helps keep dust away from the corrector when the telescope is not in use and also allows dark frames to be captured for imaging.

Key features

• Fits 14-inch Schmidt-Cassegrain, EdgeHD and 36cm RASA telescope tubes produced after 2006
• Helps prevent dew formation on the Schmidt corrector lens
• Rigid aluminium body with velvet-lined interior to reduce stray light
• Two adjustable clips for installation and removal
• Built-in cable management slot at the base of the shield
• Openings for top and bottom dovetail rails

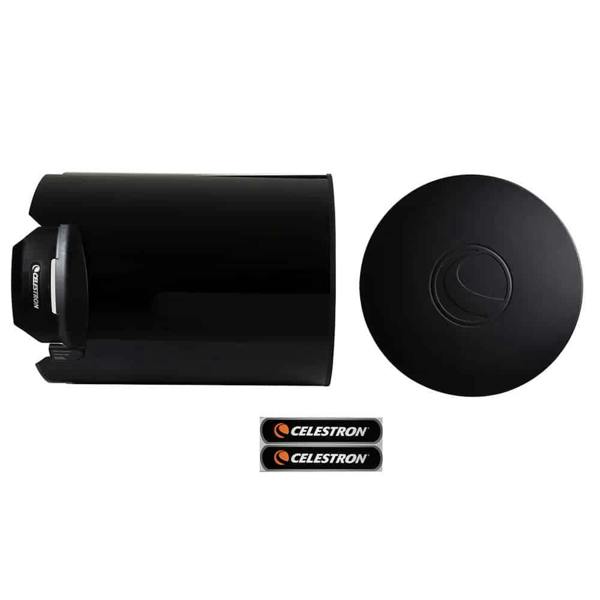

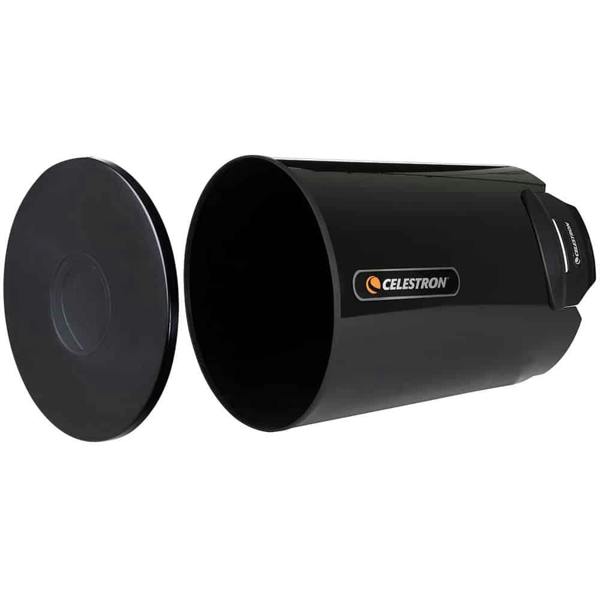

• Aluminium cover cap included
• 2-year warranty
• Model number: 94024-CGL

Specifications

• Material: Aluminium with plastic attachment clips, interior velvet lined
• Cover cap material: Aluminium
• Weight: 5. 4 lbs (1. 18 kg)
• Cover cap weight: 22. 4 oz (635. 02 g)

Sizing

• Shield dimensions: 16. 3-inch (414. 02mm) diameter x 20. 5-inch (520. 7mm) long
• Cable slot dimensions: 1. 5-inch (38. 1mm) wide x 2-inch (50. 8mm) long

In the box

Aluminium cover cap

Support & warranty

2-year warranty.

Rackhams Reference : UGMED6QGB1
