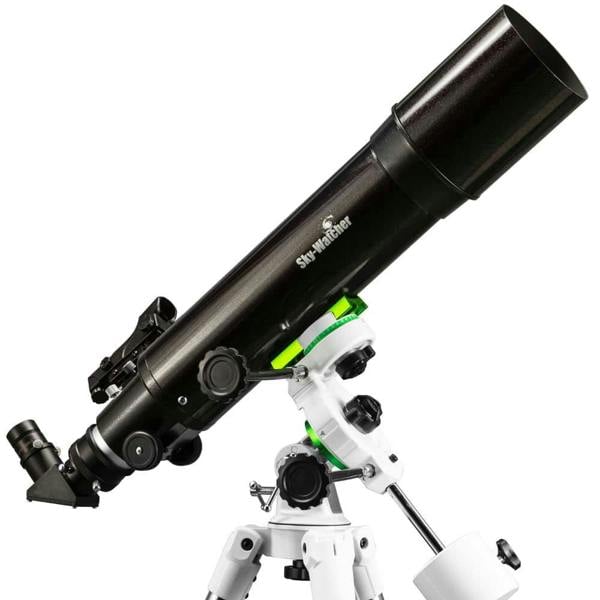

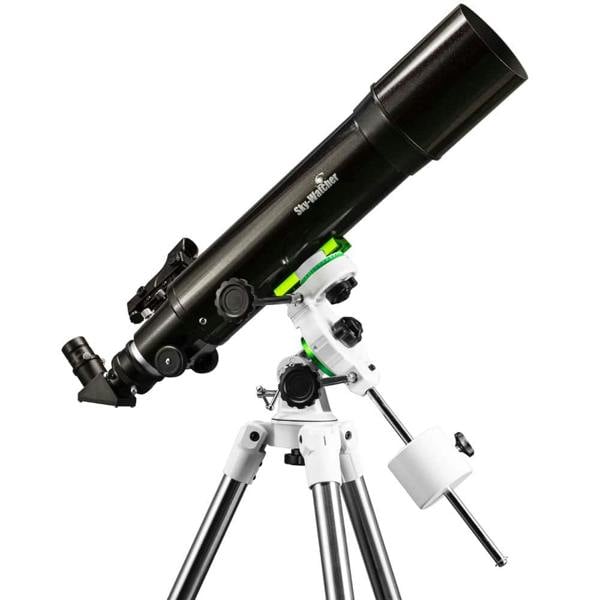

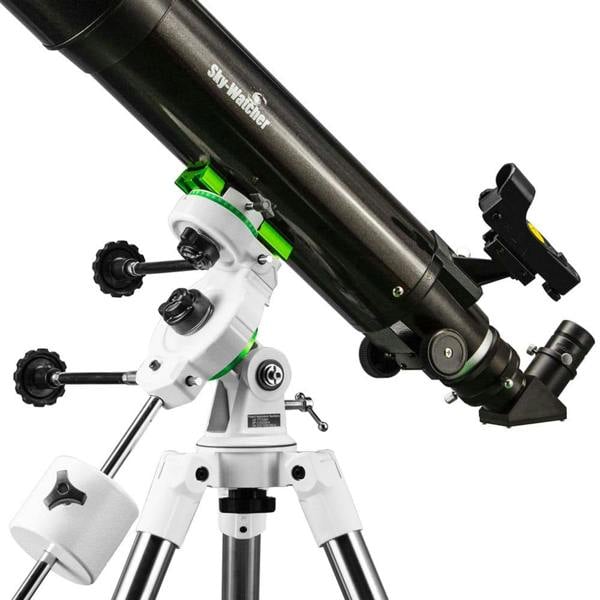

Sky Watcher Starquest DX1026R Refractor Astronomy Telescope with DX Deluxe EQ Mount

For wide-field lunar, planetary and deep-sky observing, the Sky-Watcher Starquest DX1026R brings together a 102mm achromatic refractor with a 600mm focal length and a Starquest DX Deluxe German equatorial mount. This full telescope kit pairs a fast f/5. 9 optical system with a manually controlled equatorial mount, giving a balanced introduction to more precise tracking while remaining straightforward to handle.

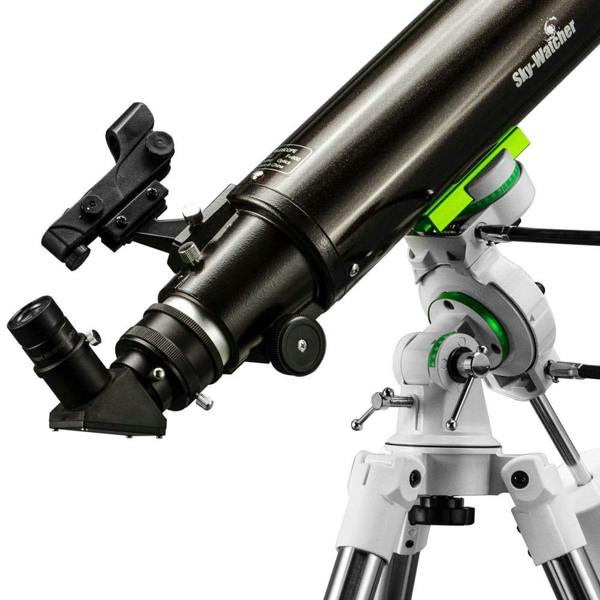

The two-element, air-spaced objective is fully multi-coated, and the telescope is supplied with 10mm and 20mm eyepieces for x60 and x30 magnification. A 1. 25-inch rack and pinion focuser, 90 star diagonal, red dot finder and universal smartphone adaptor are all included. The mount uses slow-motion cable controls on both RA and DEC axes, with 360 gearing on both axes, and sits on a fully adjustable stainless steel tripod with accessory tray.

Key features

• 102mm two-element, air-spaced achromatic refractor
• 600mm focal length with f/5. 9 focal ratio
• Starquest DX Deluxe German equatorial mount
• Fully multi-coated objective lens
• 1. 25-inch rack and pinion focuser

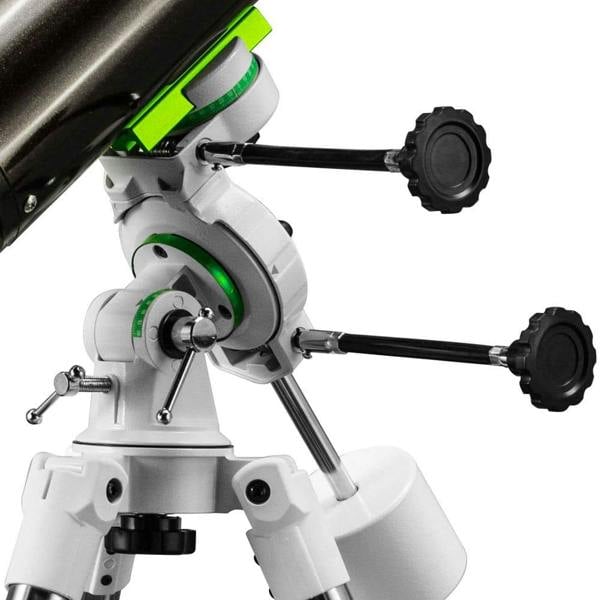

• Slow-motion cable controls on both RA and DEC axes
• Universal smartphone adaptor for phones 54-90mm wide
• Mount payload capacity: 5kg
• 1-year warranty
• Model number: 10288

Specifications

Optics

• Optical design: Refractor
• Aperture: 102mm
• Focal length: 600mm
• Focal ratio: f/5. 9
• Highest practical power: x204
• Magnifications with supplied eyepieces: x30 and x60
• Eyepieces supplied: 10mm and 20mm
• Finder: Red dot finder
• Star diagonal: 90
• Focuser: 1. 25-inch rack and pinion

Mount

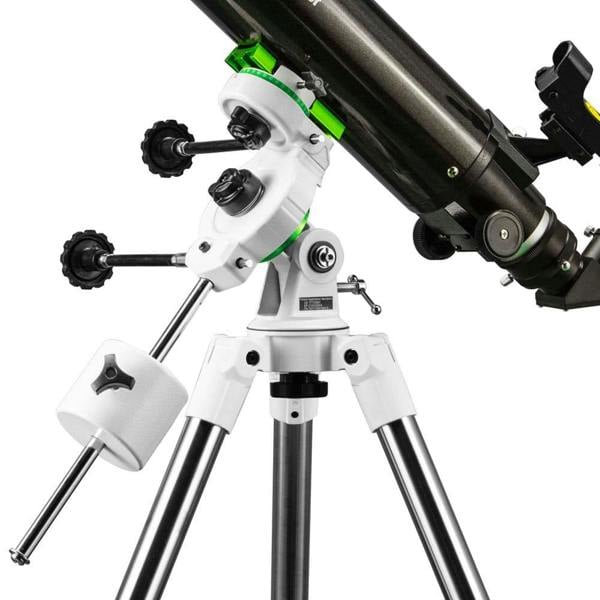

• Mount type: Starquest DX Deluxe German equatorial
• 360 gearing on right ascension and declination axes
• Worm and helical gear drive
• R. A. gear diameter: 95mm with 93 teeth
• DEC gear diameter: 62mm with 60 teeth
• Clutches on both R. A. and DEC axes
• Setting circles on both axes
• Dovetail saddle: 45mm
• Counterweight: 2. 5kg
• Mount payload capacity: 5kg
• Optional RA motor drive: Code 20940
• Mount head weight: 1. 4kg
• Tripod weight: 2. 4kg
• Product weight: 13. 60kg

Sizing

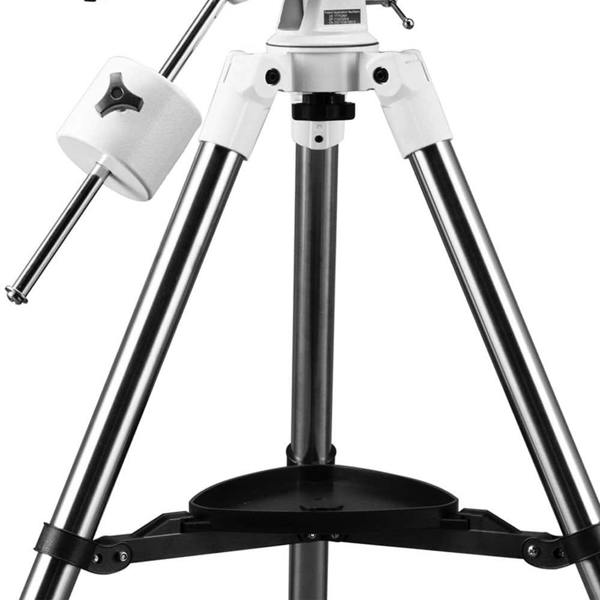

Tripod extendable from 680mm to 1160mm.

In the box

• 10mm eyepiece
• 20mm eyepiece
• Red dot finder
• 90 star diagonal
• Universal smartphone adaptor
• Starquest DX Deluxe equatorial mount
• Fully adjustable stainless steel tripod
• Accessory tray
• Counterweight bar
• 2. 5kg counterweight

Support & warranty

1-year warranty.

Rackhams Reference : NKQ69QD8YE
