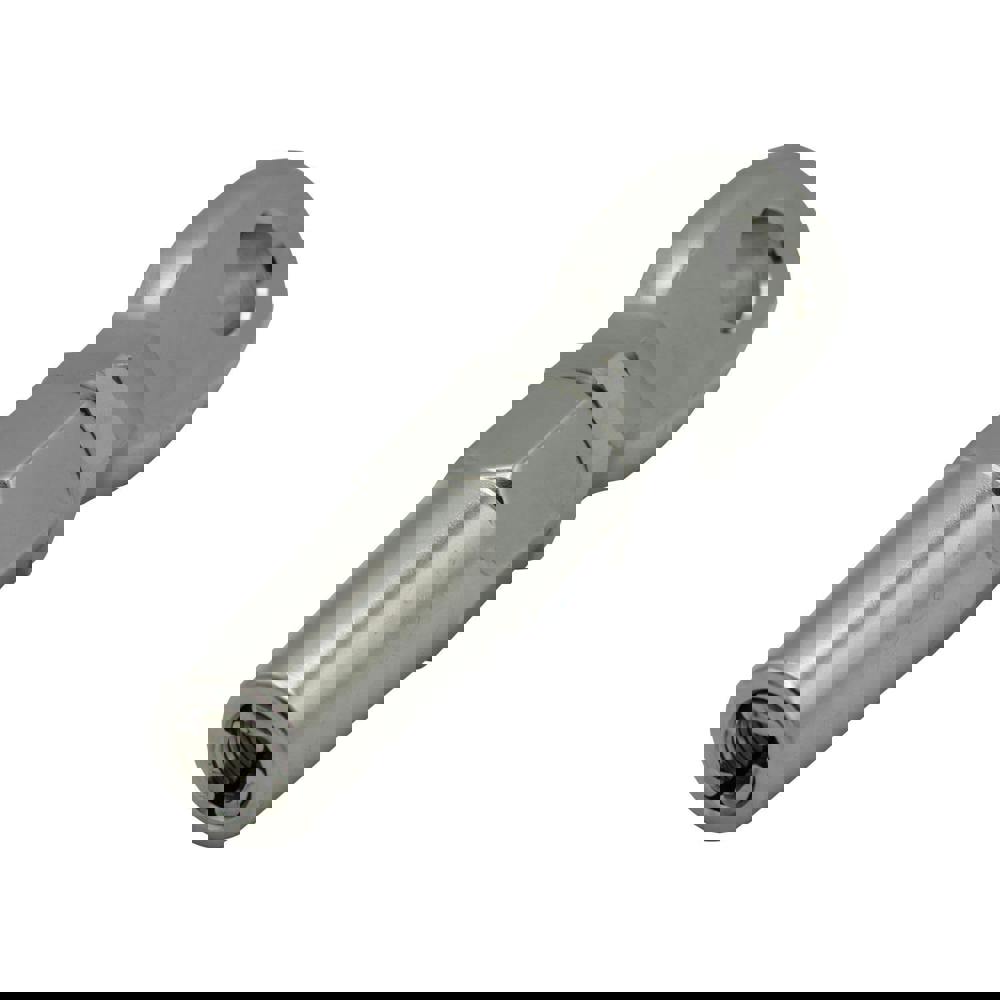

Swageless Eye Terminal Stainless Steel 8MM (Wire Cable Rope Rigging Fitting)

Designed for clean, reliable wire rope finishing, the Swageless Rigging Terminal 8mm is a stainless steel swageless eye terminal for terminating wire rope in marine and architectural applications. Made from 316 grade stainless steel, it offers rust resistance and a neat appearance suited to public-facing installations.

Unlike swaged terminals, this swageless design does not require additional tools, making it a practical choice for onsite work whenever and wherever wire needs to be terminated. It is suitable for 8mm wire diameter and is compatible with stainless steel wire rope constructions 1x19, 7x7 and 7x19.

Key features

• Swageless eye terminal for terminating wire rope
• Suitable for 8mm wire diameter
• Material: 316 grade stainless steel
• Designed for marine and architectural industry use
• No additional tools required compared with swaged terminals
• Compatible with 1x19, 7x7 and 7x19 stainless steel wire rope constructions
• Product code: SFSSSET08

Sizing

• A: 122.5mm
• B: 32mm
• C: 14mm
• D: 8mm
• E: 55mm

Safety information

• Install using a competent person
• Use marine grade sealant to help avoid water intrusion in the terminal
