T-mech Hydraulic Shop Press with Gauge – 20 Tonne

Designed for demanding workshop tasks, the T-mech Hydraulic Shop Press with Gauge – 20 Tonne brings controlled, high-pressure force to pressing, fitting and shaping jobs. With an impressive 20 tonne capacity, it’s suited to applications such as installing or removing pressure-fitted components, as well as bending and shaping metal parts in a garage, workshop or factory setting.

A hydraulic pump system delivers the pressure, supported by a 2-speed hand pump for faster, more controlled operation. The integrated pressure gauge allows you to monitor pressure accurately for confident, precise working. For flexibility across different workpieces, the multi-position bed adjusts the vertical working space between 0-1015mm, with 9 layers set at 12cm increments.

Supplied with 8 interchangeable steel mandrels and an adaptor to help ensure a secure fit on the ram, it also features a storage tray within the frame to keep accessories close to hand. Wide feet support the free-standing, compact floor-mounted design, while the open frame improves access when working on larger parts. The pressure gauge and hand pump are detachable for more compact storage when space is at a premium.

Key features

• Model number: T-mech Hydraulic Shop Press with Gauge – 20 Tonne
• 20 tonne / 20,000KG capacity

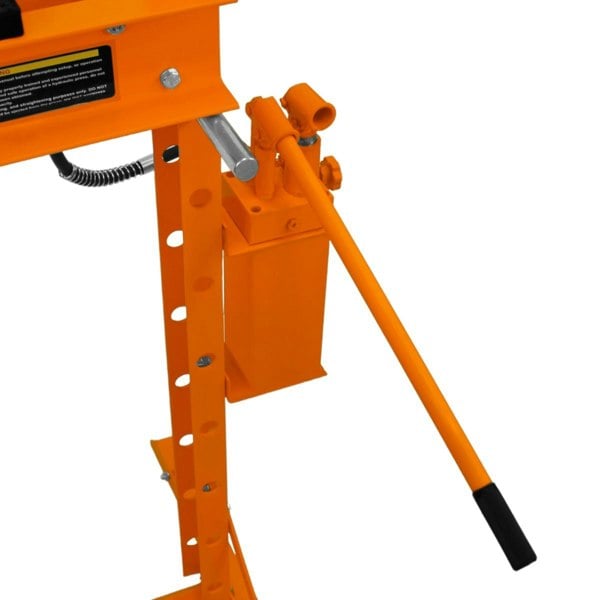

• Hydraulic pump system with 2-speed hand pump
• Pressure gauge for monitoring pressure
• Multi-position bed with 9 layers at 12cm increments
• Vertical working space adjustable between 0-1015mm

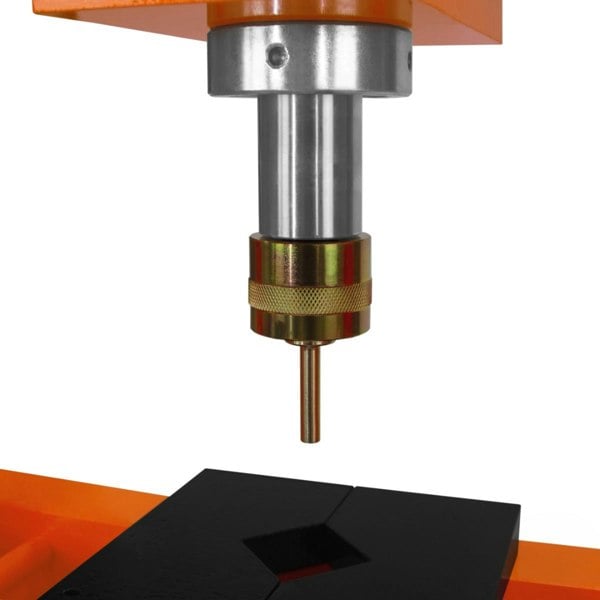

• Includes 8 interchangeable steel mandrels and an adaptor
• Powder-coated steel frame with wide feet and open frame design

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Specifications:

• Colour: Orange
• Material: Powder Coated Steel
• Weight: 93kg

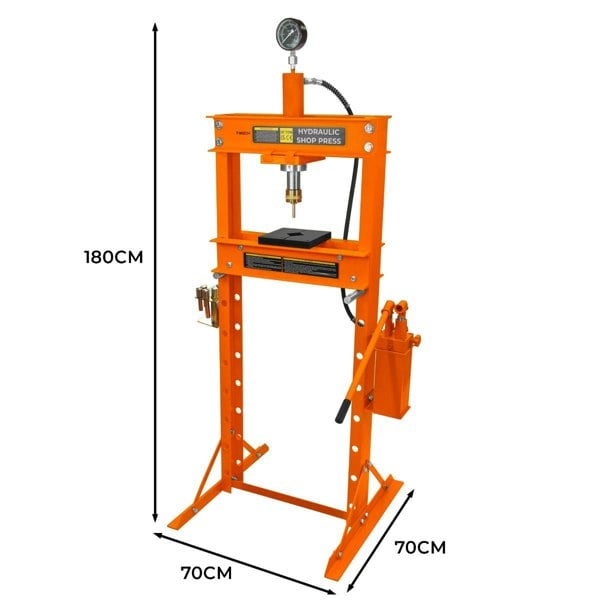

• Height: 180cm / 1. 8m / 70. 9”
• Width: 70cm / 0. 7m / 27. 6”
• Depth: 70cm / 0. 7m / 27. 6”
• Capacity: 20 Tonne / 20,000kg
• Working Area: 0-1015mm
• Lateral Ram Movement: 270mm
• Working Height Increments: 9 x 12cm Levels
• Mandrel Diameter: 10, 12, 16, 18, 20, 22, 25, 30
• Mandrel Length: 50, 60, 60, 85, 85, 85, 110, 110
• Certification: CE & UKCA

Box Contents:

• 1 x Robust 20 Tonne Hydraulic Shop Press
• 8 x Versatile Steel Mandrels
• 1 x Practical Mandrel Adaptor
