Traditional 2 Column Radiator & Valves - 600 x 1190mm - Raw Metal

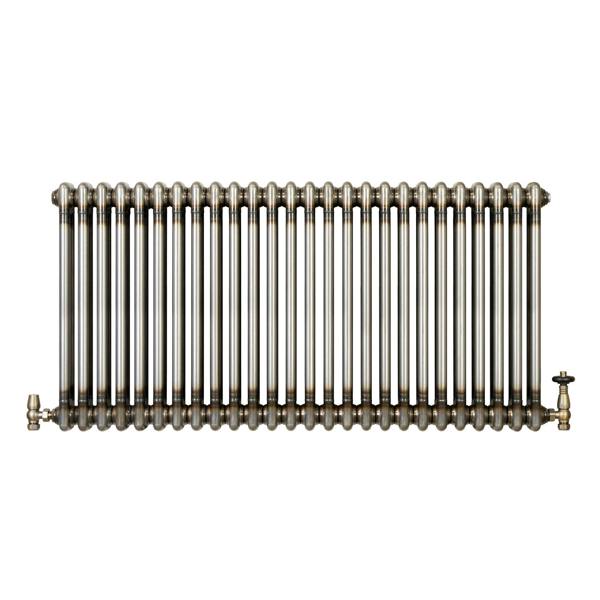

From MonsterShop, this traditional 2 column horizontal radiator and valve set brings together an industrial raw metal finish with practical everyday heating. Designed to stand out as much as it performs, it offers a distinctive look for living spaces, hallways or other interiors where character and warmth are equally important.

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 26 columns and 25mm steel tubes for dependable heat output. The angled thermostatic valve set allows temperature adjustment from 6–28C using a rotary knob, while the lockshield valve helps regulate water flow. With fixtures and fittings included, along with a flexible cleaning brush, it is a considered option for those looking to combine traditional styling with straightforward upkeep and installation.

Key features

• Raw metal finish with an industrial look
• 2 column horizontal radiator with 26 columns
• 5640 BTU heat output at 60
• Angled thermostatic valve set with rotary knob control
• Adjustable temperature range from 6–28C
• CE and UKCA certified
• BS EN 442 and ISO9001:2015 tested
• 15-year radiator guarantee

Specifications

• Material: 1.5mm carbon steel radiator
• Finish: Lacquer coating
• Individual tube size: 25mm
• BTU rating at 50: 4490
• Watt rating at 50: 1316
• Watt rating at 60: 1653
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 8.8m²
• Heating surface area: 2.54m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Compatibility: All UK and EU heating systems
• Valve material: Powder coated brass
• Valve type: Thermostatic
• Valve style: Angled
• Valve connection: 1/2" x 15mm
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• 10-year valve guarantee

Sizing

• Radiator: 1190mm W x 68mm D x 600mm H
• Depth with bracket: 92mm
• Gap between tubes: 45mm
• Distance from wall to centre of inlet: 58mm
• Valve-to-valve height: 524mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 2 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
