WINCHMAX Mobile Winch Mount 17,000lb - 20,000lb 2 inch Receiver Hitch Winch Mounting plate

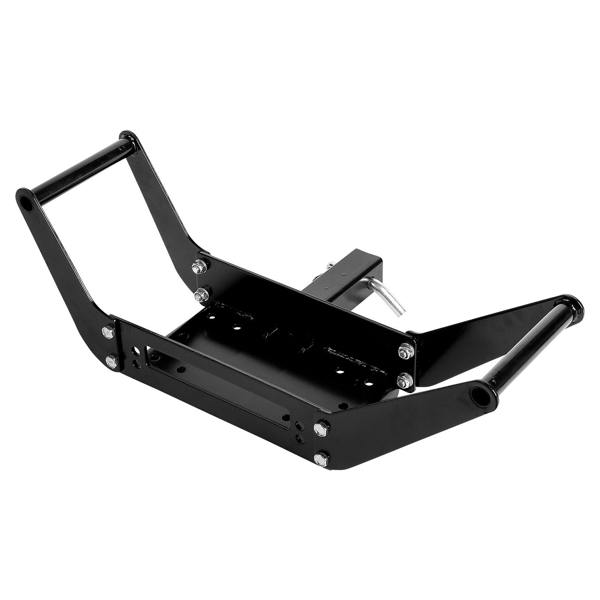

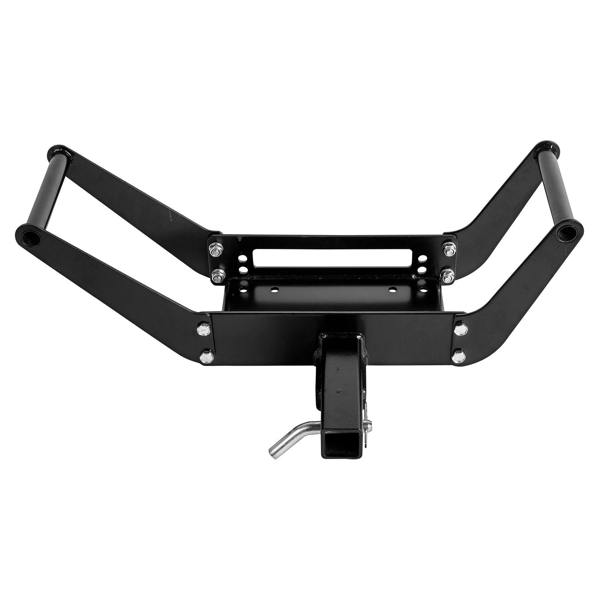

For heavy recovery winches, the WINCHMAX mobile winch mount provides a 2 inch receiver hitch mounting solution suited to winches rated 17,000lbs - 20,000lbs. Built from 1/4 inch (6mm) powder-coated steel, it uses a standard 2 inch male mounting spigot for fitting into a standard US type receiver hitch.

Pre-drilled for a standard 114.3 x 254mm mounting bolt pattern, this mount works with all WINCHMAX recovery winches and many self-recovery winches from Warn, Ramsey, Superwinch, Champion, Ironman, Gorilla and Bulldog. The front is also pre-drilled for a standard two-hole 254mm roller fairlead or hawse fairlead. Supplied flat pack for transport, it requires the carrying arms to be bolted on using the fixings provided.

Key features

• Suitable for most large recovery winches 17,000lbs - 20,000lbs
• Made from 1/4 inch (6mm) powder-coated steel
• Anti-rust black powder coat finish
• Standard 2 inch male mounting spigot for a standard US type receiver hitch

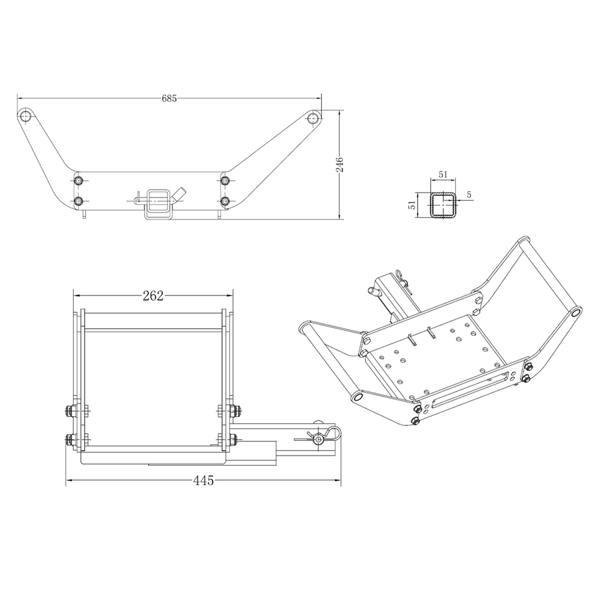

• 254mm x 114.5mm mounting bolt pattern
• 254mm on-centre fairlead bolt pattern

What's included

• Hitch pin and clip
• Fixings for the carrying arms

Vehicle compatibility

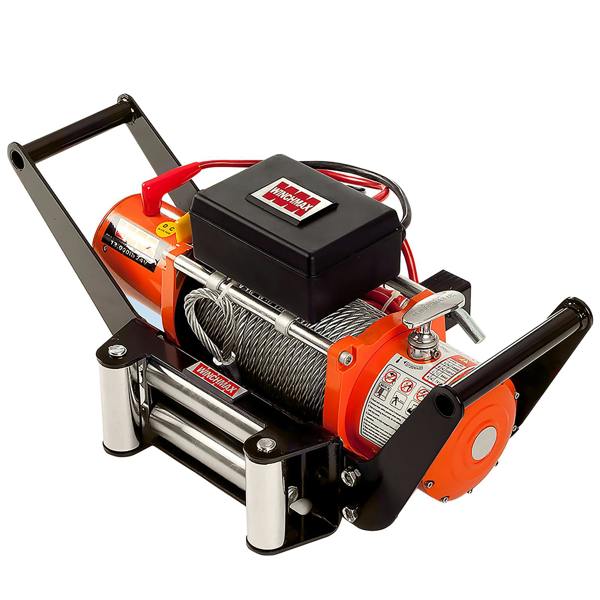

• Works with all WINCHMAX recovery winches
• Compatible with many Warn self-recovery winches with a standard 114.3 x 254mm bolt pattern
• Compatible with many Ramsey self-recovery winches with a standard 114.3 x 254mm bolt pattern
• Compatible with many Superwinch self-recovery winches with a standard 114.3 x 254mm bolt pattern
• Compatible with many Champion self-recovery winches with a standard 114.3 x 254mm bolt pattern
• Compatible with many Ironman self-recovery winches with a standard 114.3 x 254mm bolt pattern
• Compatible with many Gorilla self-recovery winches with a standard 114.3 x 254mm bolt pattern
• Compatible with many Bulldog self-recovery winches with a standard 114.3 x 254mm bolt pattern

Installation

Supplied flat pack for transport. Bolt on the carrying arms using the fixings provided.

Safety information

• Suitable for most large recovery winches 17,000lbs - 20,000lbs
• 20,000lb Z type hydraulic winch will not fit this mount

Support & warranty

• Lifetime warranty on mechanical components
• 3 years warranty on electrical
