WINCHMAX Steel Rope 26m x 9.5mm, Hole Fix. Stainless Steel Roller Fairlead. 3/8 inch Black Clevis Hook. For winches up to 13,500lb.

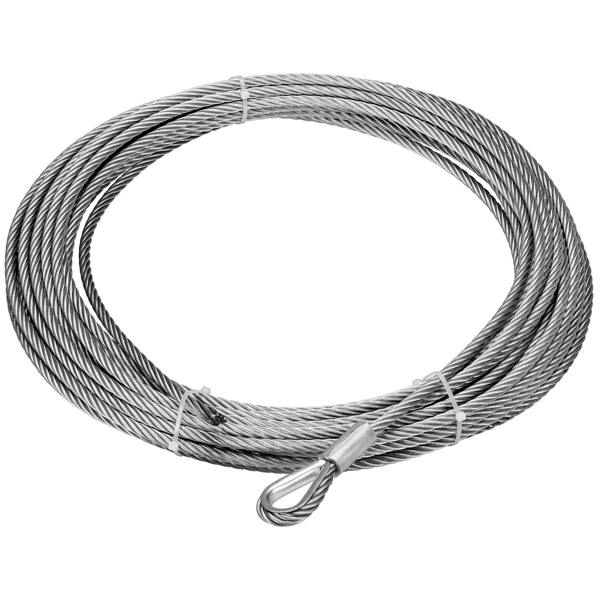

For WINCHMAX winches rated up to 13,500lb, this winch rope kit combines a 26m x 9.5mm galvanised steel wire cable with a roller fairlead and 3/8 inch clevis forged winch hook. The cable has a hole-in-drum fitting, a thimble eyelet at the hook end and a plain end at the opposite side, giving a direct replacement option for compatible winch setups.

The roller fairlead features stainless steel rollers, a matt black powder-coated frame and pre-drilled standard two-hole mounting. A large forged hook in black is included, made from drop forged Grade 70 steel with a corrosion-resistant zinc-plated finish and spring-loaded safety latch. Roller axles are secured with circlips to allow roller removal.

Key features

• Suitable for all winches up to 13,500lb
• 26m x 9.5mm galvanised steel wire cable
• Hole in the drum fitting
• Tested breaking load 18,142lb / 8,229kg
• Stainless steel rollers
• Matt black powder-coated frame finish
• Pre-drilled for standard two-hole mounting
• 3/8 inch clevis forged winch hook

Specifications

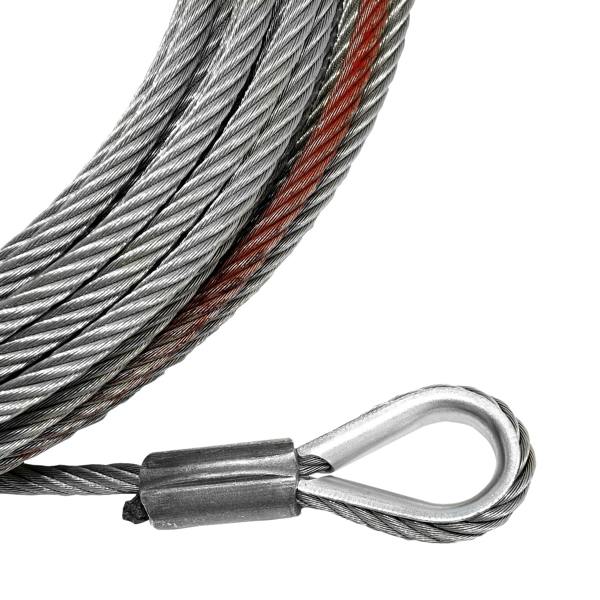

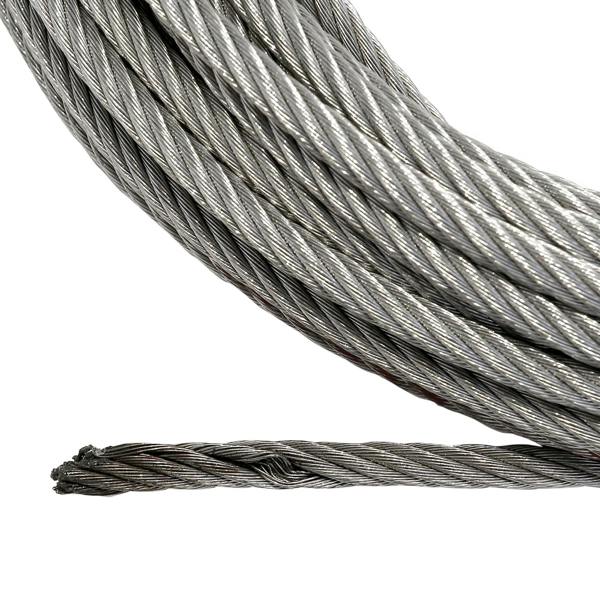

• Cable termination: thimble eyelet at the hook end and plain at the other
• Hook size: 155mm x 115mm
• Hook minimum breaking force: 28,806lb (12,740kg) MBL
• Hook material: drop forged Grade 70 steel
• Hook finish: corrosion-resistant zinc plated
• Fairlead frame size: W295mm x H115mm
• Roller axles secured with circlips to allow roller removal

What's included

• Roller fairlead
• 3/8 inch black clevis hook

Sizing

• Cable: 26m x 9.5mm
• Fairlead: W295mm x H115mm
• Hook: 155mm x 115mm

Vehicle compatibility

Suitable for all winches up to 13,500lb.

Safety information

• Suitable for winches rated up to 13,500lb
• Retain at least 6 tight wraps on the drum at all times as this is what anchors the cable to the drum

Support & warranty

• Lifetime warranty on mechanical components
• 3 years warranty on electrical

About this product

Who is it for

Suited to users replacing or fitting a steel cable setup on winches rated up to 13,500lb.

When and where to use it

Suitable for winch installations using a hole-in-drum cable fitting and standard two-hole fairlead mounting.

Rackhams Reference : JVWVT3EP53
