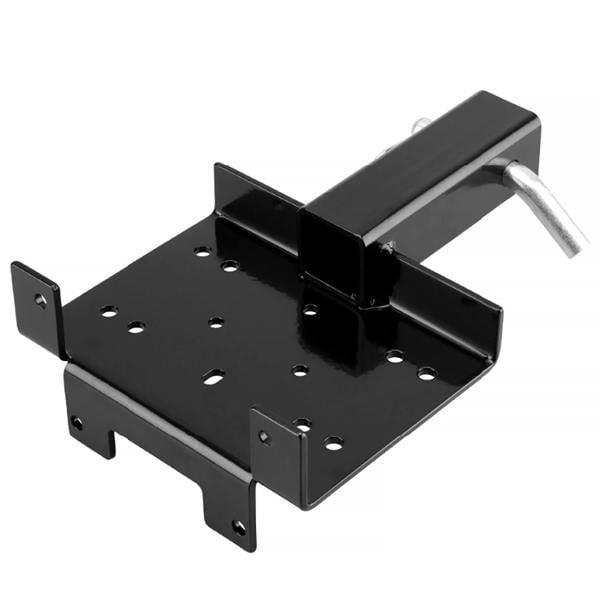

WINCHMAX Mobile Winch Mount 2 inch Receiver Hitch Winch Mounting Plate

For mobile winch mounting, the WINCHMAX Heavy-Duty Mobile Winch Mount uses a 2 inch receiver hitch system and suits most 4x4 and recovery winches up to 13,500lb. Its pre-drilled 114.3 x 254mm mounting bolt pattern matches the standard pattern used by many winch manufacturers, while the front is pre-drilled for a standard two-hole 254mm roller fairlead or hawse fairlead.

Made from 1/4 inch steel with an anti-rust black powder coat finish, this mounting plate has a standard 2 inch male mounting spigot for use with a standard US type receiver hitch. It supports temporary mounting in different positions, including switching from front to rear mounting or sharing a winch between vehicles. The plate is supplied flat pack for transport, with carrying arms and fixings provided for assembly.

Key features

• Suitable for most 4x4 and recovery winches up to 13,500lb

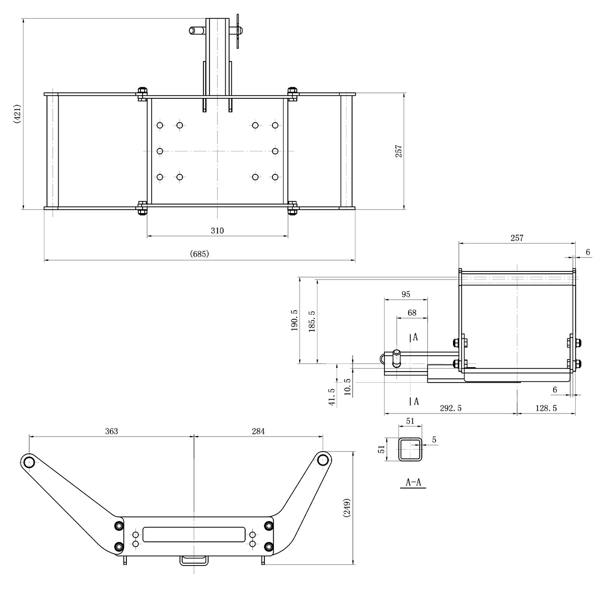

• 114.3 x 254mm mounting bolt pattern
• 245mm on centre fairlead bolt pattern
• Pre-drilled for a standard two-hole 254mm roller fairlead or hawse fairlead
• Made of 1/4 inch steel
• Anti-rust black powder coat finish

What's included

• Hitch pin and clip
• Fixings

Vehicle compatibility

• Suitable for most 4x4 and recovery winches up to 13,500lb
• Works with all WINCHMAX recovery winches
• Compatible with many Warn winches with a standard 254mm x 114.5mm bolt pattern
• Compatible with many Ramsey winches with a standard 254mm x 114.5mm bolt pattern
• Compatible with many Superwinch winches with a standard 254mm x 114.5mm bolt pattern
• Compatible with many Champion winches with a standard 254mm x 114.5mm bolt pattern
• Compatible with many Ironman winches with a standard 254mm x 114.5mm bolt pattern
• Compatible with many Gorilla winches with a standard 254mm x 114.5mm bolt pattern
• Compatible with many Bulldog winches with a standard 254mm x 114.5mm bolt pattern

Installation

Supplied flat pack for transport. Bolt on the carrying arms with the fixings provided.

Support & warranty

• Lifetime warranty on mechanical components
• 3 years warranty on electrical

About this product

Who is it for

Suited to 4x4 and recovery winch users who need a mobile mounting solution that can be shared between vehicles or moved from front to rear mounting positions.

When and where to use it

Suitable for mobile winch mounting applications using a standard US type receiver hitch.

Rackhams Reference : DZC2CPAEZ8
