WINCHMAX Steel Rope 25m X 9.1mm, Hole Fix. Orange Roller Fairlead. 3/8 Inch Clevis Hook. For winches up to 13,500lb.

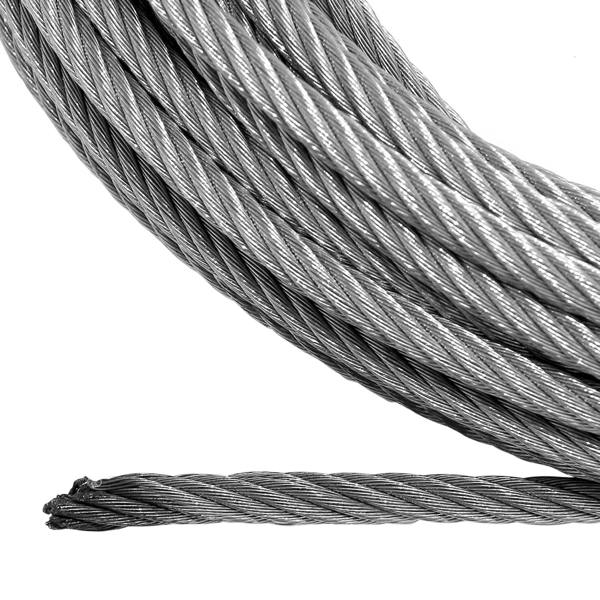

The WINCHMAX steel winch rope set combines a 25m x 9.1mm galvanised steel wire cable, an orange roller fairlead and a 3/8 inch clevis forged winch hook for winches rated up to 13,500lb. The cable has a tested breaking load of 18,142lb (8,229kg) and is terminated with a thimble eyelet at the hook end and plain at the other, with a hole in the drum fitting.

The roller fairlead features steel rollers, a powder-coated frame and pre-drilled standard two-hole mounting. Completing the set, the hook is made from drop forged Grade 70 steel with a corrosion-resistant zinc-plated finish, a spring-loaded safety latch and a 28,806lb (12,740kg) MBL. The hook fits wire rope with thimble as used on WINCHMAX 13,500lb winches.

Key features

• Suitable for winches up to 13,500lb
• 25m x 9.1mm galvanised steel wire cable
• Tested breaking load 18,142lb (8,229kg)
• Hole in the drum fitting

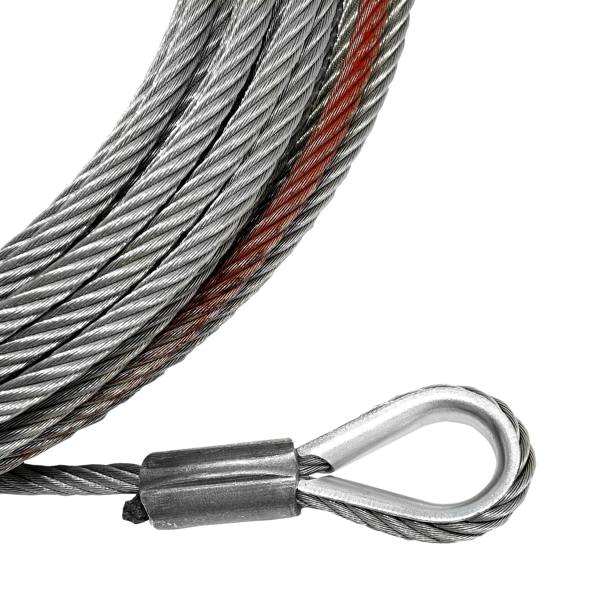

• Thimble eyelet at the hook end and plain at the other
• Steel roller fairlead with orange powder-coated frame finish
• Pre-drilled for standard two-hole mounting

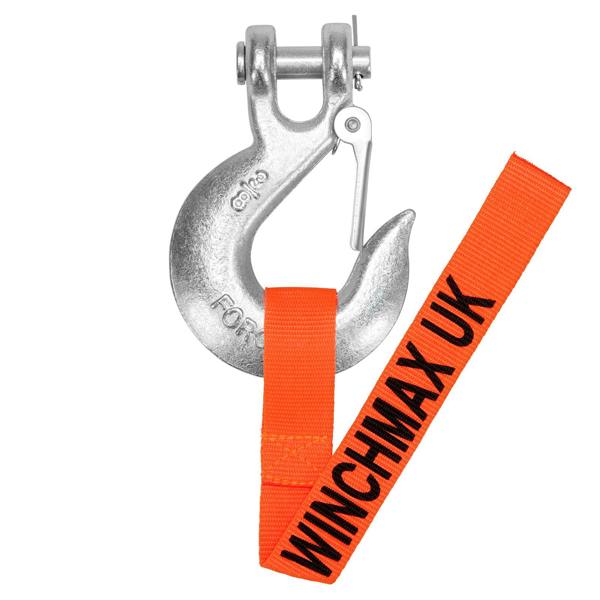

• 3/8 inch clevis forged winch hook with spring-loaded safety latch

Sizing

• Cable: 25m x 9.1mm
• Fairlead overall size: W295mm x H115mm

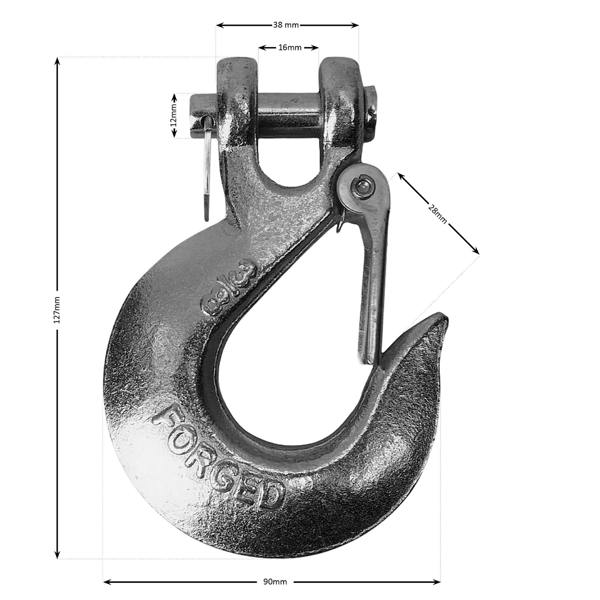

• Hook: 127mm x 90mm

Safety information

• Suitable for winches rated up to 13,500lb
• Retain at least 6 tight wraps on the drum at all times as this is what anchors the cable to the drum

Support & warranty

• Lifetime warranty on mechanical components
• 3 years warranty on electrical

Rackhams Reference : 111VEE1FYW
