Celestron Dew Heater Ring 14"

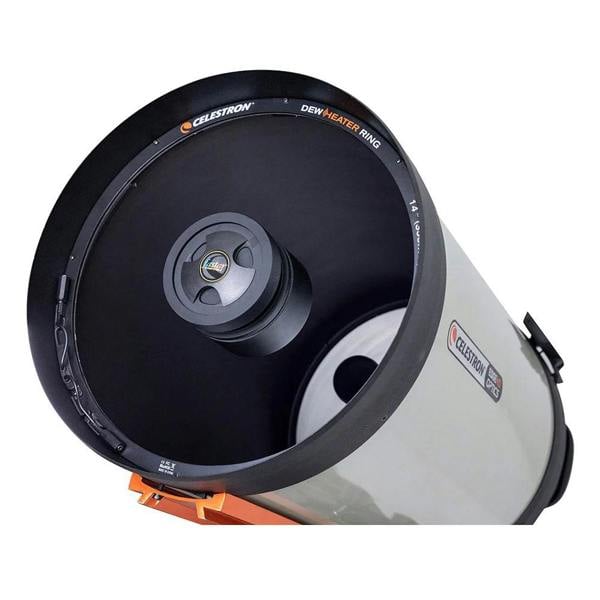

Reliable dew control is essential for consistent observing and imaging, and this Celestron 14-inch Dew Heater Ring offers a permanent, integrated solution for compatible optical tubes. Made for 14-inch Schmidt-Cassegrain, EdgeHD and 36cm RASA models, it replaces the retaining ring on the Schmidt corrector lens and applies heat directly across the corrector glass.

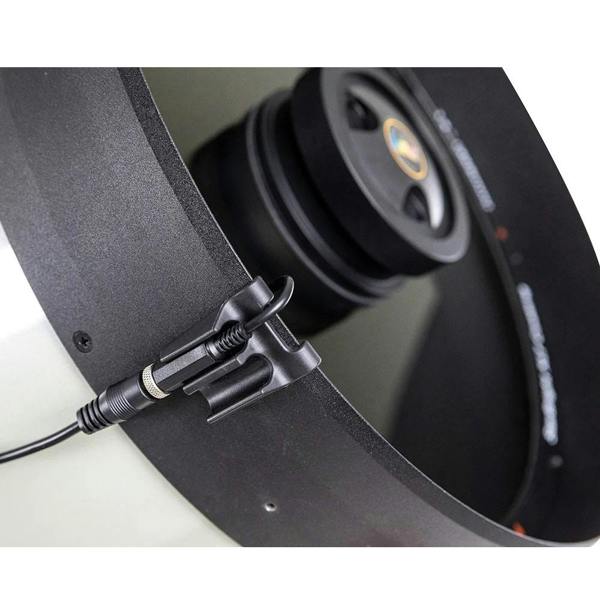

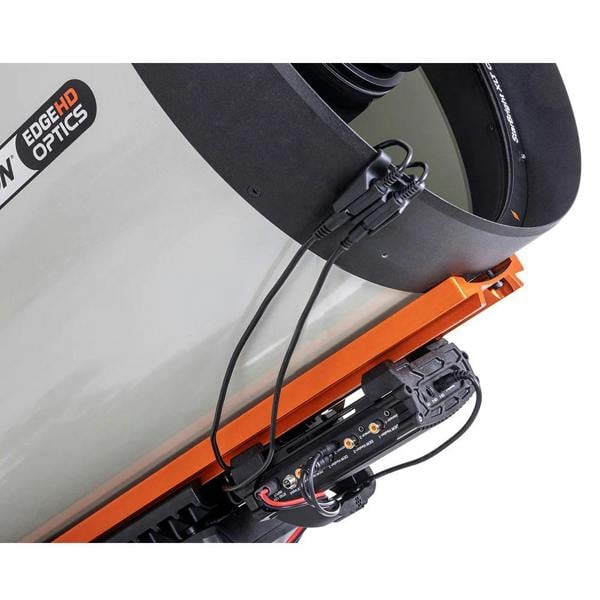

The aluminium ring combines a rigid, lightweight construction with a fixed installation that stays with the telescope tube. Power is supplied via a 12V DC barrel connector, while an integrated thermistor monitors corrector lens temperature when used with Celestron Smart DewHeater Controllers. Storage clips and a cable management clip help keep connections protected and organised, with a power jack extension cable included.

Key features

• Dew heater ring for compatible 14-inch Celestron Schmidt-Cassegrain, EdgeHD and 36cm RASA optical tubes
• Replaces the retaining ring to heat directly across the Schmidt corrector lens
• Permanently mounts to the optical tube
• Integrated thermistor compatible with Celestron SmartHeat Dew Controllers
• Aluminium ring construction
• Includes storage clips and cable management clip
• 2-year warranty
• Model number: 94054-CGL

Specifications

• Maximum power: 52 watts
• Power jack: 12V DC barrel connector, 5. 5mm/2. 1mm, tip positive
• Thermistor jack: 2. 5mm audio jack
• Compatibility: 14-inch Schmidt-Cassegrain, EdgeHD, Rowe-Ackermann Schmidt Astrograph (RASA)
• Weight: 6. 88 oz (195. 2 g)

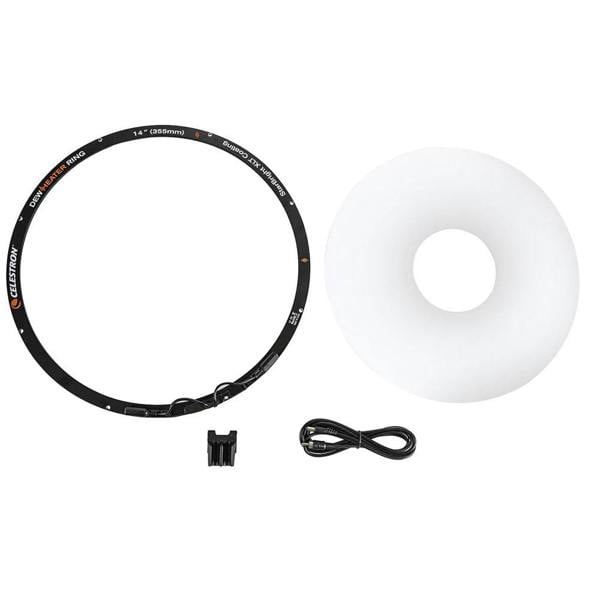

In the box

• Dew Heater Ring
• Cable management clip
• Power jack extension cable
• Paper installation shield

Support & warranty

• 2-year warranty

Rackhams Reference : 5P7VTKA4X3
