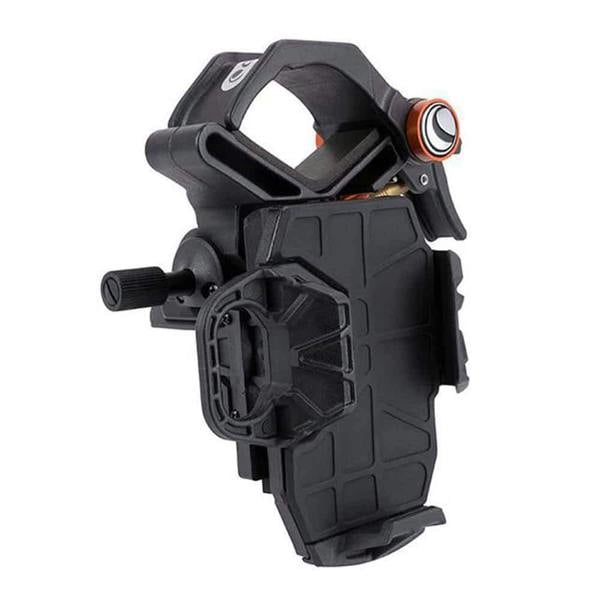

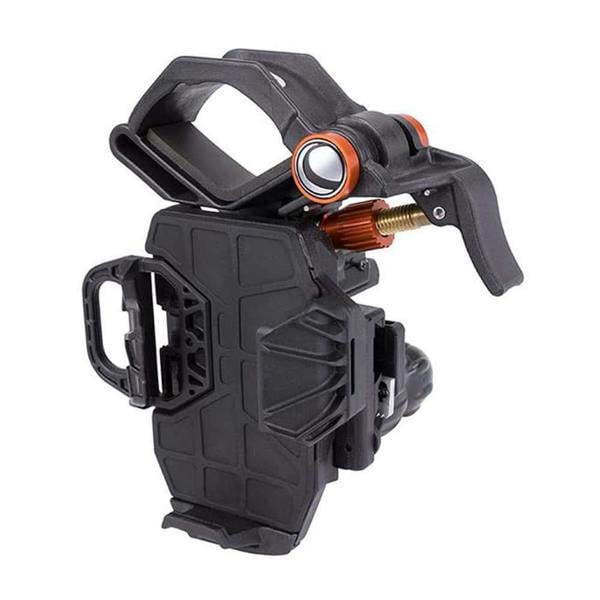

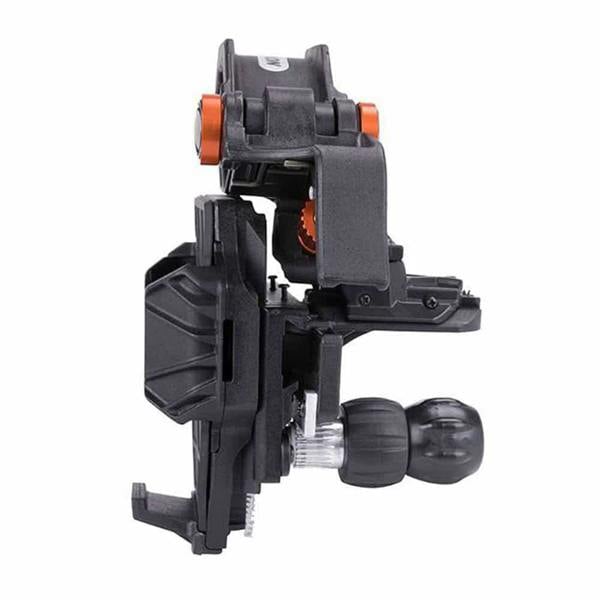

Celestron NexYZ 3 Axis Universal Smartphone Adapter

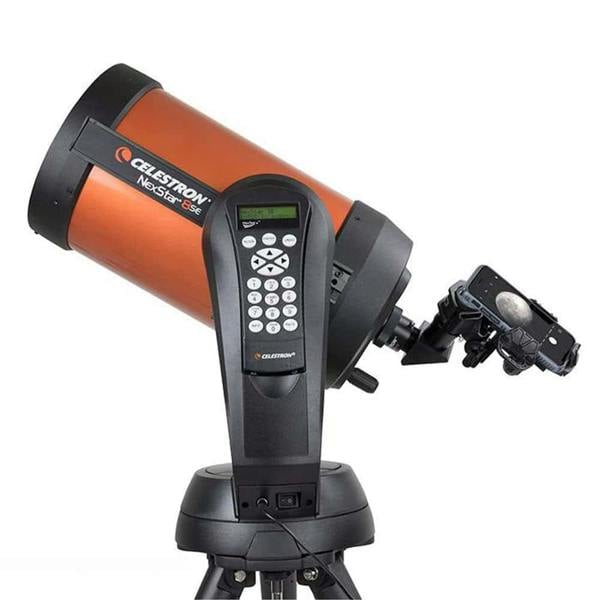

Capturing images through an eyepiece becomes far more straightforward with the Celestron NexYZ 3-Axis Universal Smartphone Adapter. Built for use with telescopes, spotting scopes, binoculars, monoculars and microscopes, it brings a wide range of optical instruments into easy reach of smartphone photography and video.

The three-axis adjustment system sets this adapter apart, using dedicated X, Y and Z knobs to align your phone’s camera precisely over the eyepiece. It fits eyepieces from 35mm to 60mm in diameter, including 1. 25-inch and 2-inch telescope eyepieces, and includes an adapter ring that reduces the usable diameter to 25mm for standard microscope eyepieces. A strong spring and threaded twist lock create a secure two-stage grip on the eyepiece, while the adjustable phone platform accommodates a broad range of smartphones, often with the case still fitted. Its metal frame and polymer body provide durable construction for regular field use.

Key features

• Universal smartphone adapter for telescopes, spotting scopes, binoculars, monoculars and microscopes
• Three-axis alignment with X, Y and Z adjustment knobs
• Fits eyepieces from 35mm to 60mm in diameter
• Compatible with 1. 25-inch and 2-inch telescope eyepieces
• Included adapter ring reduces usable diameter to 25mm for standard microscope eyepieces
• Two-stage eyepiece grip with a strong spring and threaded twist lock
• Metal frame with polymer body
• Model number: 81055-CGL

Specifications

• Eyepiece compatibility: 35mm to 60mm diameter
• Microscope eyepiece compatibility with adapter ring: 25mm diameter
• Telescope eyepiece compatibility: 1. 25-inch and 2-inch
• Weight: 0. 45kg

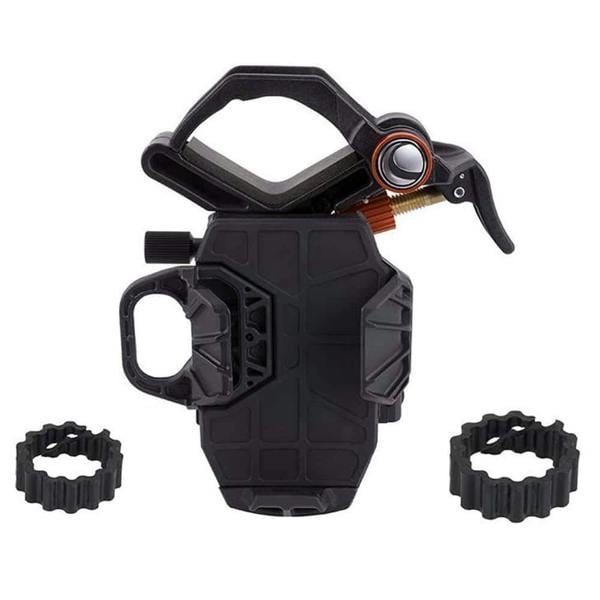

In the box

Adapter ring for microscope eyepieces

Support & warranty

• 2-year warranty
