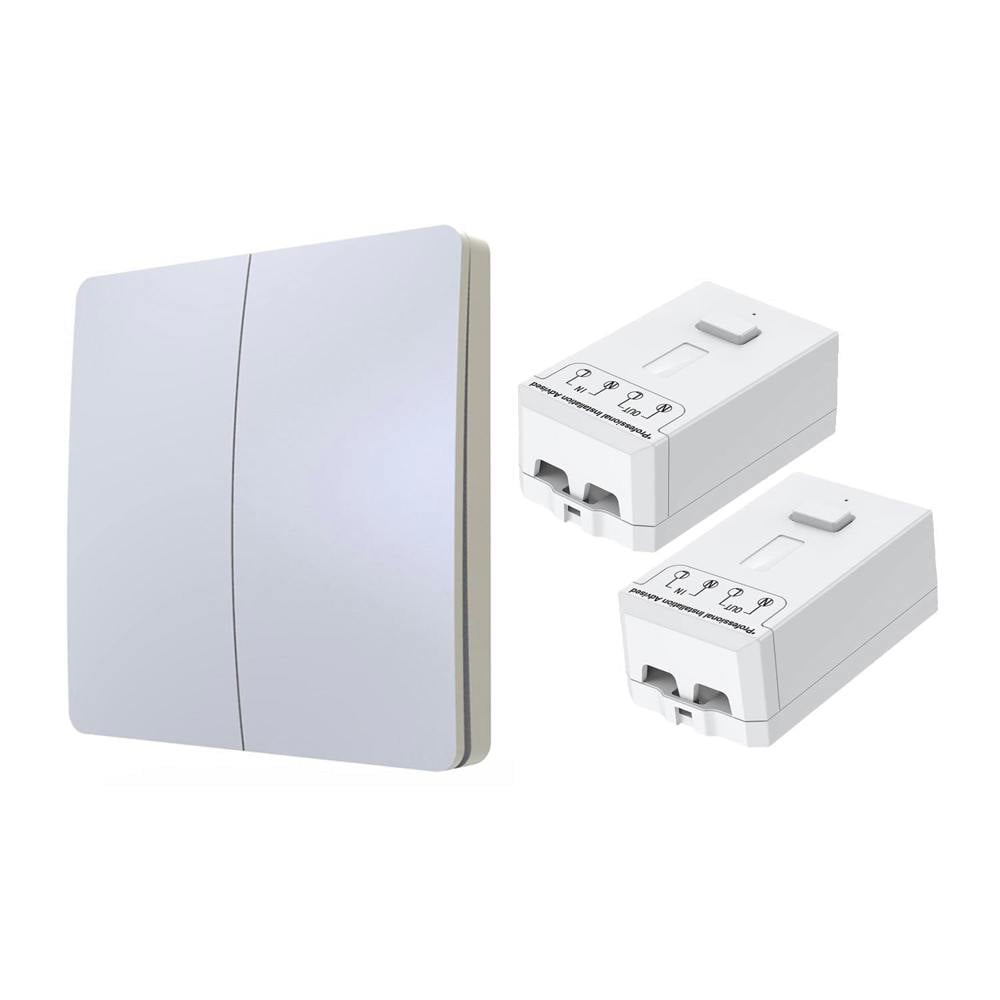

ENER-J 2 Gang Wireless Kinetic Switch Dimmable/Non Dimmable, White (Pro Range) with 2 X 500W RF Non-Dimmable Receiver Modules

Ener-J brings flexible lighting control into a cleaner, wire-free format with this 2 Gang Wireless Kinetic Switch set in white, supplied with 2 x 500W RF non-dimmable receiver modules. Using micro energy acquisition and self-generating power, the switch operates without batteries and does not require switch wiring or wall drilling, making it a practical option for retrofit projects, home updates and spaces where conventional switch installation is less convenient.

The 2-gang format allows flexible pairing across multiple lighting points, including 2-way and 3-way switching arrangements. An encrypted wireless signal supports secure communication, with a control distance of up to 30m indoors and 100m outdoors. The switch is IP56 rated and compatible with various light types including LED, halogen and CFL, while the receiver modules install between the mains supply and lighting circuit for wireless control with compatible Ener-J Pro Range kinetic switches.

Key features

• 2-gang wireless kinetic switch
• White body
• Micro energy acquisition and self-generating power
• No batteries, switch wiring or wall drilling required
• Encrypted wireless signal
• IP56 rated switch
• Compatible with LED, halogen and CFL lighting
• Supports 2-way and 3-way switching configurations

Specifications

Switch

• Operating frequency: 433MHz
• Control distance: 100m outdoor, 30m indoor
• Control method: Pairing with wireless receiver module
• Number of gangs: 2
• Body colour: White
• Waterproof rating: IP56 for switches
• Endurance test: 200,000 times

Receiver modules

• Quantity: 2 x 500W RF non-dimmable receiver modules
• LED load capacity: up to 500W
• Other lighting load capacity: up to 1100W
• Wireless range: up to 30 metres indoors through walls and up to 100 metres outdoors
• Rated current: 5A
• Standby power consumption: less than 0.5W
• Compatible with Ener-J Pro Range models including WS1024, WS1025, WS1035 and WS1021

Installation

• Receiver modules install directly between the mains supply and the lighting circuit.
• The receiver can be positioned inside ceiling roses, junction boxes or behind light fittings.

In the box

• 1 x Wireless Kinetic Switch
• 1 x User Manual
• 1 x 3M Tape
• 2 x 500W RF Non-Dimmable Receiver Modules

Safety information

• Basic wiring knowledge is required for installation and pairing.

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : AA5BBMZUV4
