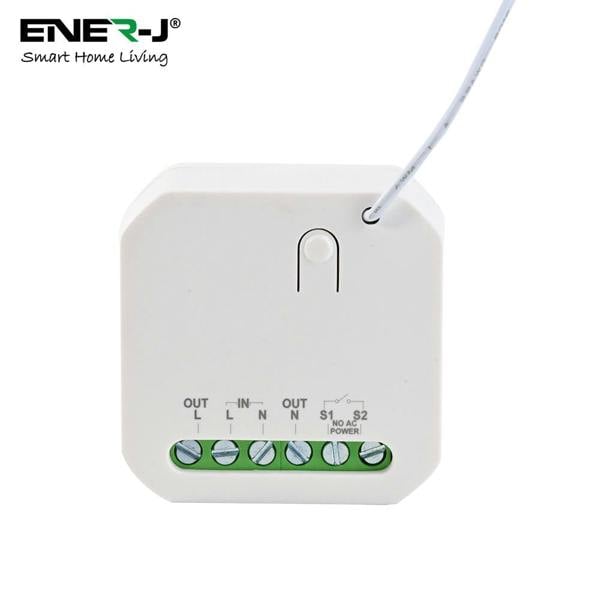

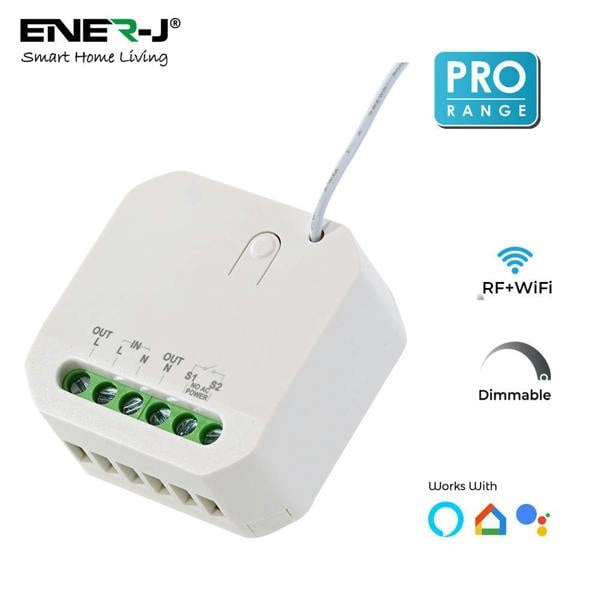

ENER-J RF Mini Dimmable & Wi-Fi single module smart receiving controller, 1A Pro

Compact and easy to integrate, the ENER-J RF Mini Dimmable & Wi-Fi Single Module Smart Receiving Controller 1A Pro offers flexible lighting control in a small-format unit. This smart receiving controller supports dimming and combines RF 433MHz communication with RF 433MHz + 2.4G Wi-Fi for app and voice control.

Suitable for compatible lighting setups, it allows up to 10 switches to be paired and operates across an effective range of 80m outdoors or 20m indoors. The white finish keeps the appearance discreet, while the low power consumption of <0.1W supports efficient standby operation. With a maximum wattage of 150W and a voltage range of AC100~250V 50/60Hz, it is built for a wide range of installations.

Key features

• White
• Dimmable
• 150W maximum wattage
• RF 433MHz / RF 433MHz + 2.4G Wi-Fi communication
• App and voice control
• Up to 10 switches can be paired
• EN61058-1; 2002+A2; 2008; GB 14536.1-2008 standards

Specifications

Power

• Maximum wattage: 150W
• Power consumption: <0.1W
• Voltage range: AC100~250V 50/60Hz

Connectivity

• Communication: RF 433MHz / RF 433MHz + 2.4G Wi-Fi
• Control: app and voice control
• Pairing capacity: up to 10 switches
• Effective range: 80m outdoor, 20m indoor

Operating conditions

• Temperature range: -20°C~50°C
• Weight: 50g

Sizing

64mm L x 32mm W x 24mm H

Rackhams Reference : PSMAKYTD1J
