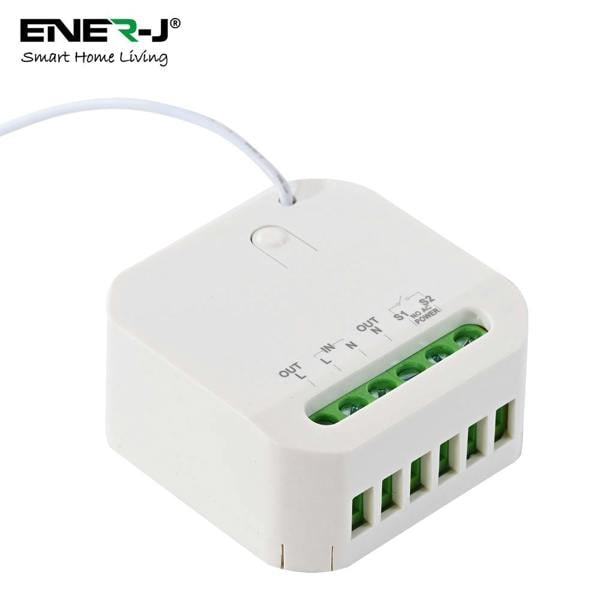

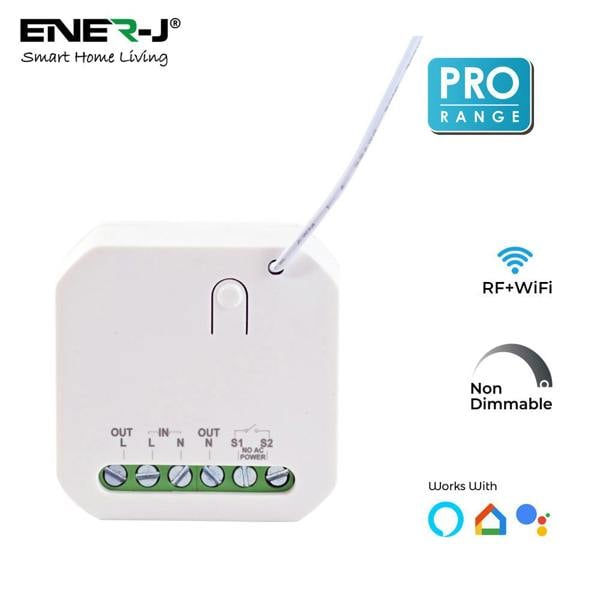

ENER-J 500W RF+WiFi Non-Dimmable Magic Receiver Module, PRO Series Wireless Switches

Bring more flexibility to existing lighting setups with the ENER-J 500W RF+WiFi Non-Dimmable Magic Receiver Module, a lighting control receiver made for use with ENER-J Pro Series Wireless Switches. It works with Pro Range Series Wireless Kinetic Switches and also supports control through the ENERJSMART app, Alexa and Google Home.

Installed between the light fitting and power supply, this compact module allows wireless operation even when the hard-wired switch is off, making it suitable for converting an existing traditional hard-wired switch to 2-way control. Its slim form is suitable for ceiling installation, while outdoor use is possible when housed in a waterproof junction box. The module also supports timer and scheduling functions through the app, with wireless control range of up to 20m indoors and 80m outdoors.

Key features

• Compatible with ENER-J Pro Series Wireless Switches
• Works with Pro Range Series Wireless Kinetic Switches including WS1024X, WS1025X, WS1035X, WS1041, WS1042, WS1043, WS1044, WS1045, WS1046 and all grid switches
• 500W non-dimmable receiver module
• App control via ENERJSMART
• Voice control with Alexa and Google Home
• Indoor range up to 20m and outdoor range up to 80m
• IP20 rated
• Software support end date: 10/08/2028

Specifications

Power

• Rated load: 5A
• Max load: LED 500W, Other 1100W
• Standby power consumption: <0.5W

Connectivity

• Communication: RF 433MHz + WiFi (2.4G only)
• App and voice control

Use

• Indoor only: IP20
• Range: indoor max 20M, outdoor max 80M (approx)

Sizing

32mm L x 24mm W x 64mm H

In the box

• 500W RF+WiFi Non-Dimmable Receiver Module
• User manual

Rackhams Reference : 3L831ZYFC3
