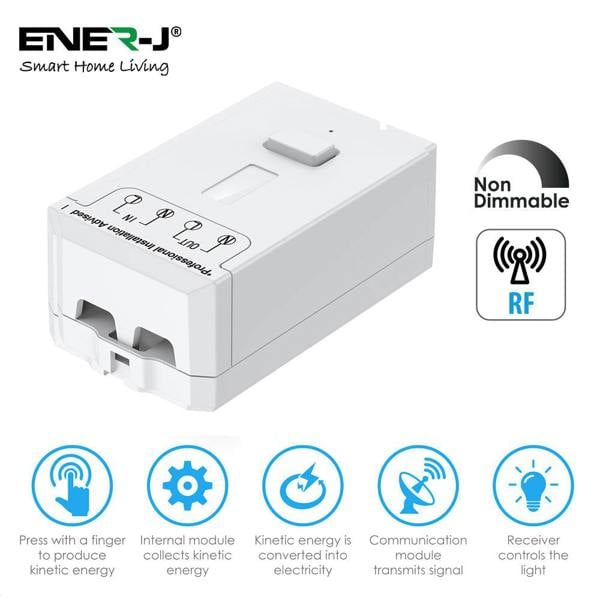

Ener-J 500W RF Non-Dimmable Receiver Module, PRO Series Wireless Kinetic Switch Compatible

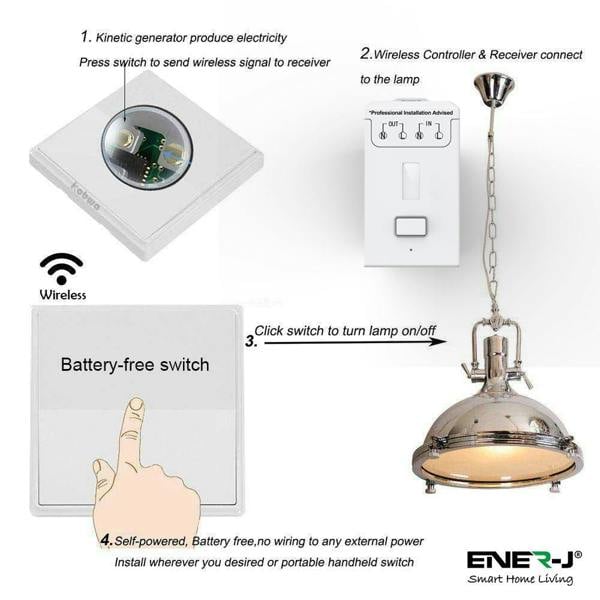

Ener-J brings flexible lighting control to retrofit and renovation projects with this 500W RF non-dimmable receiver module from the PRO Series. Installed between the mains supply and the lighting circuit, it works with compatible Ener-J PRO Range kinetic switches to provide wireless control without the need for traditional switch wiring.

Its compact, slim profile allows discreet placement inside ceiling roses, junction boxes or behind light fittings. With support for up to 500W of LED lighting or up to 1100W for other lighting types, it suits larger rooms and multi-bulb fittings as well as more straightforward installations. The module also supports flexible pairing, allowing one switch to control multiple receivers or multiple switches to operate one receiver for 2-way or 3-way switching arrangements.

Key features

• Non-dimmable RF receiver module
• Compatible with Ener-J PRO Range kinetic switches
• Up to 500W LED load capacity
• Up to 1100W load capacity for other lighting types
• Wireless range up to 30 metres indoors through walls
• Wireless range up to 100 metres in open outdoor spaces

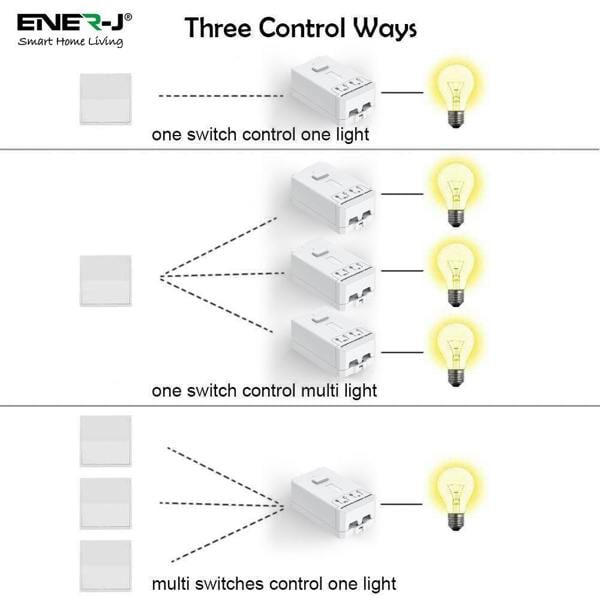

• Supports one switch to multiple receivers or multiple switches to one receiver
• Rated current: 5A

Specifications

Performance

• Maximum LED load: 500W
• Maximum load for other lighting types: 1100W
• Rated current: 5A
• Standby power consumption: less than 0.5W

Wireless

• RF wireless technology
• Indoor range: up to 30 metres through walls
• Outdoor range: up to 100 metres in open spaces
• Supports 2-way and 3-way switching setups

Compatibility

• Compatible with Ener-J PRO Range models including WS1024, WS1025, WS1035 and WS1021

Installation

• Installs between the mains supply and the lighting circuit
• Suitable for placement inside ceiling roses, junction boxes or behind light fittings

Rackhams Reference : WIIFGMFLFN
