ENER-J ENERJ Plug and Play Microwave Sensor for CCT LED Bulkhead (SKU: T561)

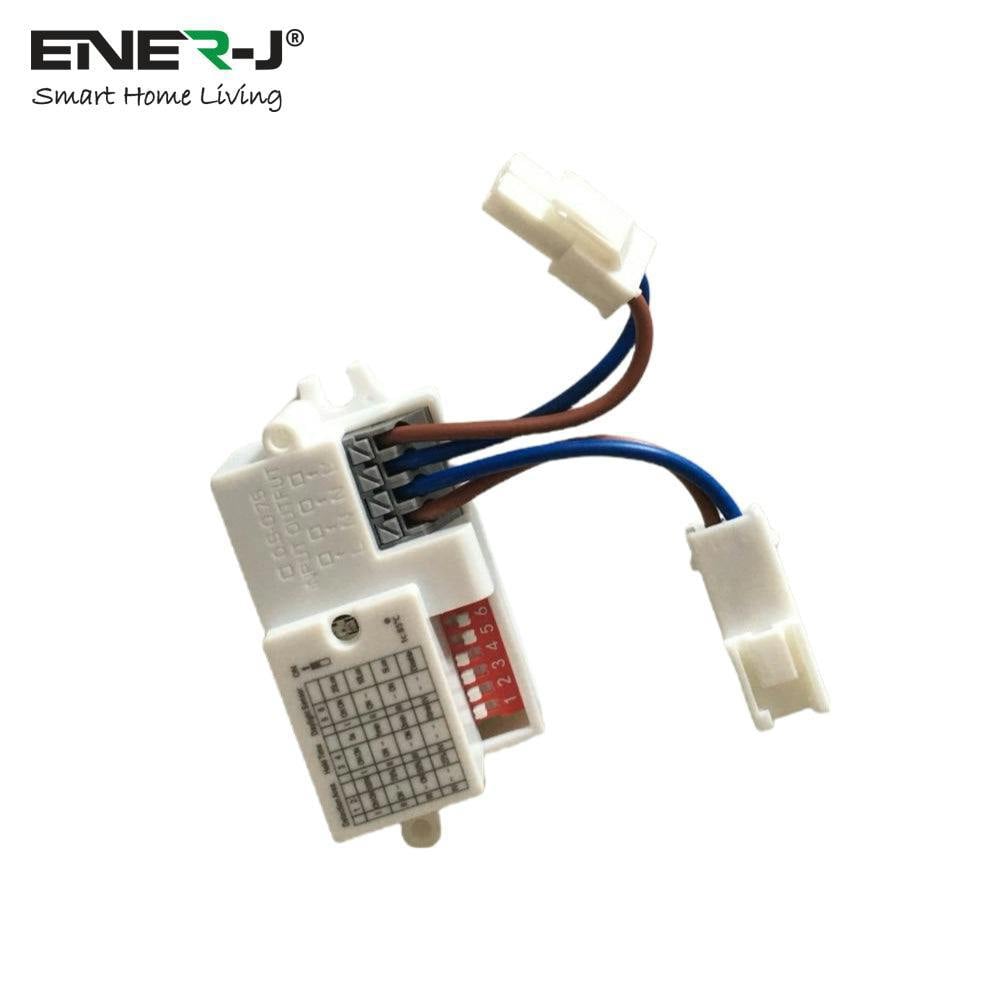

For a straightforward lighting upgrade, the ENER-J T563 microwave sensor adds automatic motion and daylight control to the ENER-J T561 LED bulkhead without rewiring. This plug-and-play sensor suits shared indoor spaces such as corridors, lobbies and utility rooms, where responsive lighting and adjustable settings are useful.

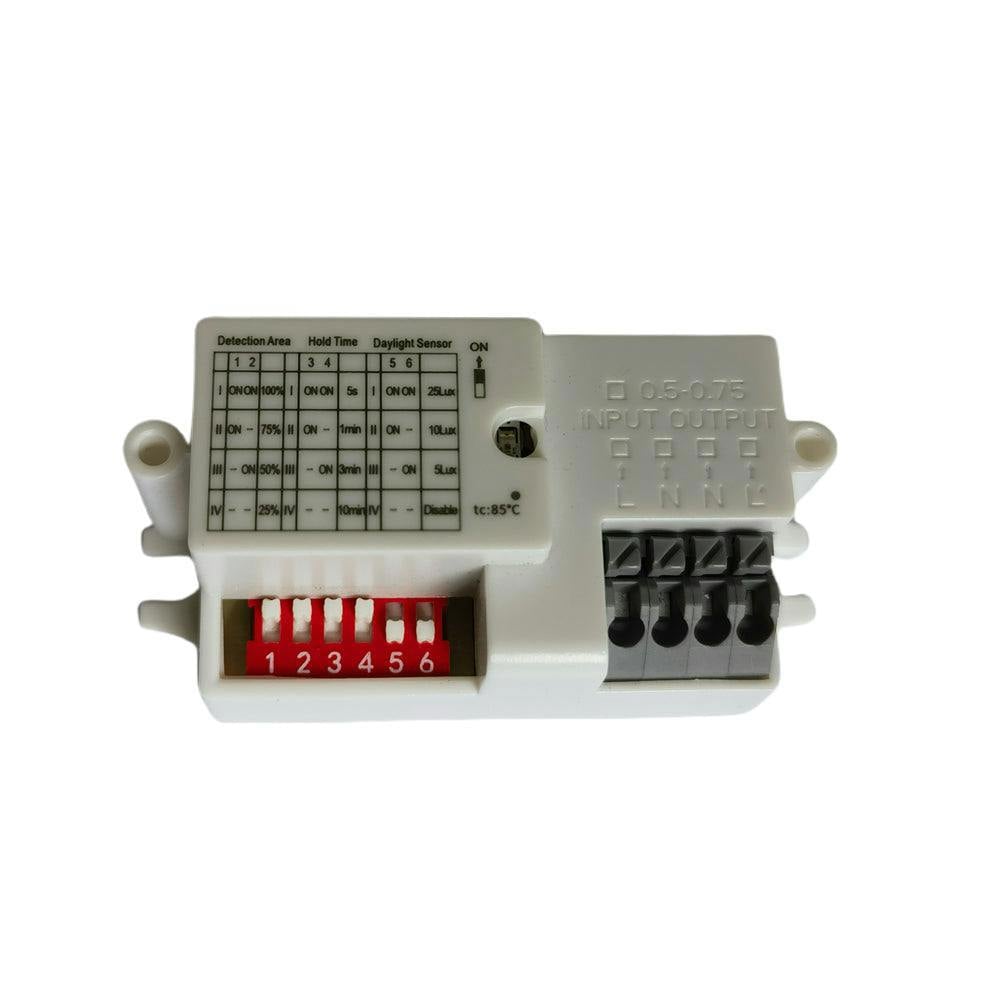

DIP switch controls allow the sensor to be tailored to the space, with selectable hold times, detection area settings and daylight thresholds. It operates on 230V AC, with compatibility across 110–240 VAC, and uses less than 0.2W in standby. Detection performance is specified with a 150° angle, a standard mounting height of 3m and a maximum mounting height of 5m.

Key features

• Plug-and-play microwave sensor for the ENER-J T561 LED bulkhead
• No rewiring required
• 230V AC input voltage
• Compatible with 110–240 VAC
• Standby power: < 0.2W
• Adjustable hold time: 5 seconds, 1 minute, 3 minutes or 10 minutes
• Detection area settings: 25%, 50%, 75% or 100%
• Built-in daylight sensor with 5 Lux, 10 Lux, 25 Lux or disabled threshold settings

Specifications

Power

• Model: T563 Microwave Sensor
• Input voltage: 230V AC
• Voltage range: 110–240 VAC
• Standby power: < 0.2W

Sensor settings

• Hold time settings: 5s / 1min / 3min / 10min
• Detection area: 25% / 50% / 75% / 100%
• Daylight threshold: 5 Lux / 10 Lux / 25 Lux / Disabled

Detection

• Detection radius: ≤ 3.5m at 0.3m/s; ≤ 2.5m at 1m/s (at 3m height)
• Detection angle: 150°
• Standard mounting height: 3m
• Maximum mounting height: 5m

Environmental

• Operating temperature range: –25°C to +60°C
• Storage temperature range: –40°C to +80°C
• Humidity: < 85% RH
