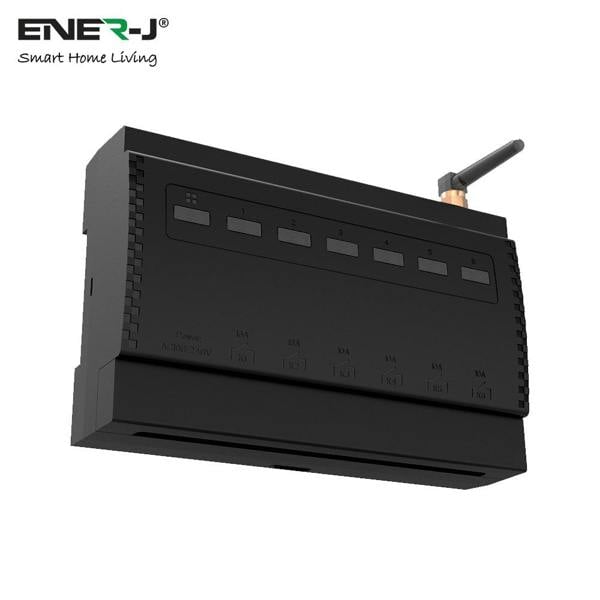

ENER-J PRO Series 6-Circuit WiFi & RF Smart Relay Module | Non-Dimmable

Bring multiple lighting or power zones together with the ENER-J PRO Series 6-Circuit WiFi & RF Smart Relay Module, a compact smart relay receiver for centralised circuit control. Suitable for more complex home or workspace setups, it allows six separate electrical circuits to be managed from a single unit, making it a practical option for areas such as gardens, kitchens and offices.

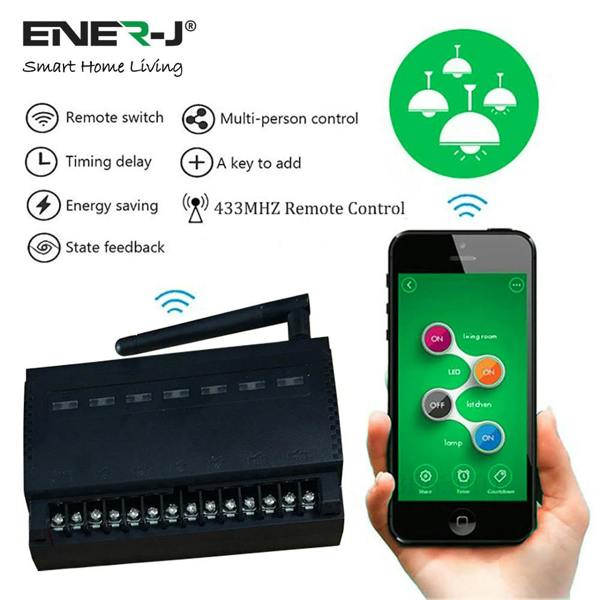

Alongside 2.4GHz WiFi connectivity for app-based control through the ENERJSMART App, the module also supports 433MHz RF operation with ENER-J wireless kinetic switches. Voice control is available through Amazon Alexa and Google Home, while scheduling, timers and scenes can be set within the app. Its non-dimmable format and mixed-load capacity include two 16A high-power channels and four 10A standard channels for a range of circuit requirements.

Key features

• Controls 6 circuits independently from one unit
• Non-dimmable
• 2 x 16A high-power channels
• 4 x 10A standard channels
• 2 x 1600W and 4 x 1000W circuit capacity
• 2.4GHz WiFi and 433MHz RF support
• Compatible with Amazon Alexa and Google Home
• Scheduling, timers and scenes via the ENERJSMART App

Specifications

Connectivity

• WiFi: 2.4GHz
• RF: 433MHz
• App control: ENERJSMART App
• Voice control: Amazon Alexa and Google Home

Performance

• Channels: 6
• High-power channels: 2 x 16A
• Standard channels: 4 x 10A
• Circuit load: 2 x 1600W + 4 x 1000W
• Operating temperature: -20°C to 55°C

Installation

• Fits into ceiling voids or distribution boxes

Rackhams Reference : 8EGSIDMALT
