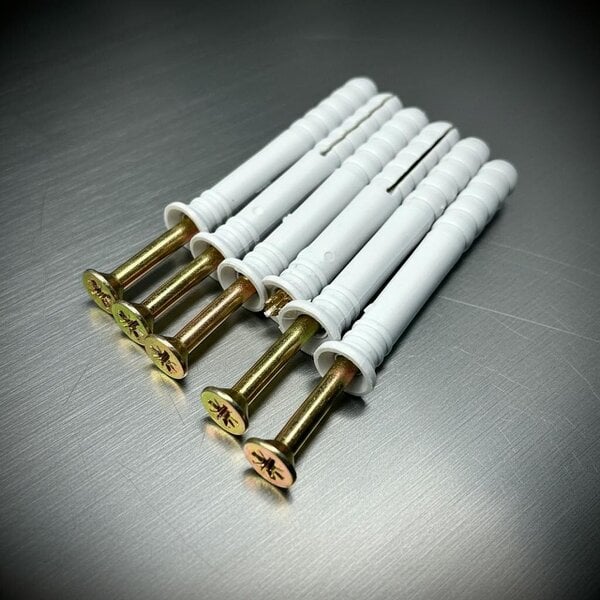

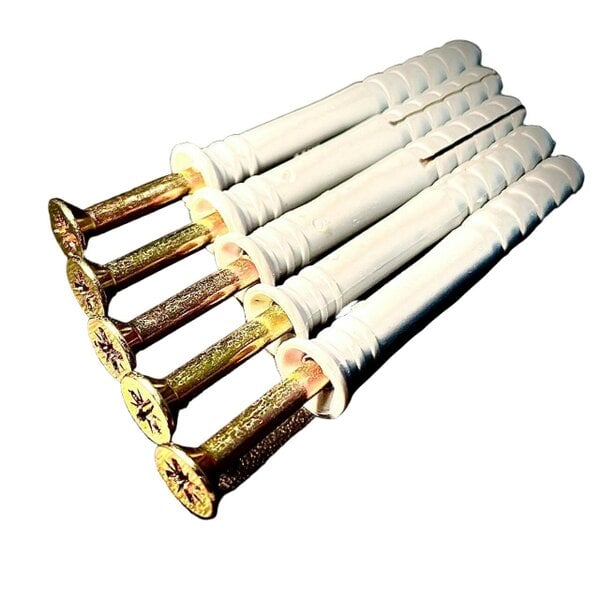

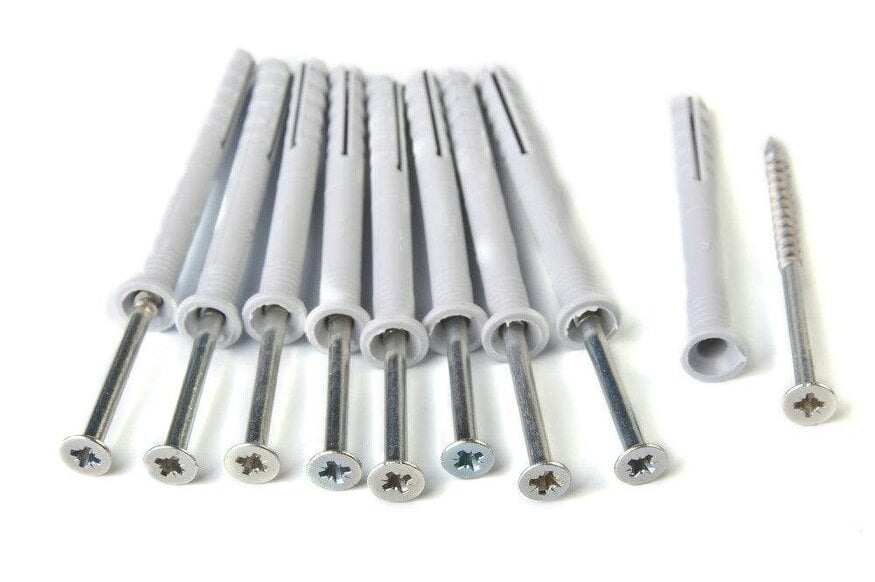

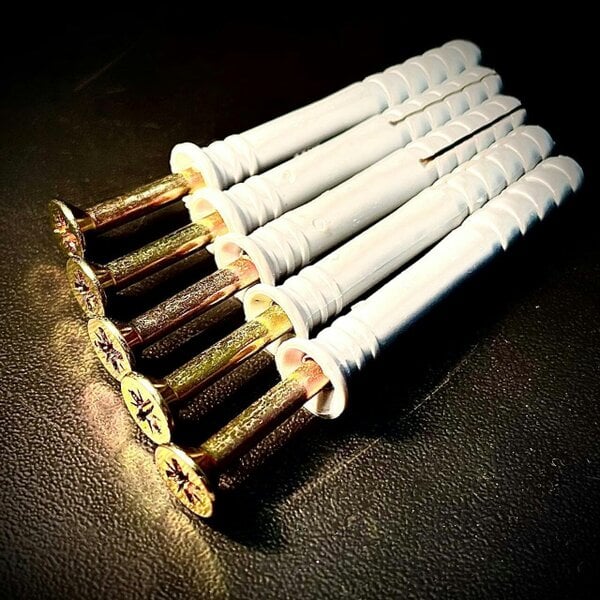

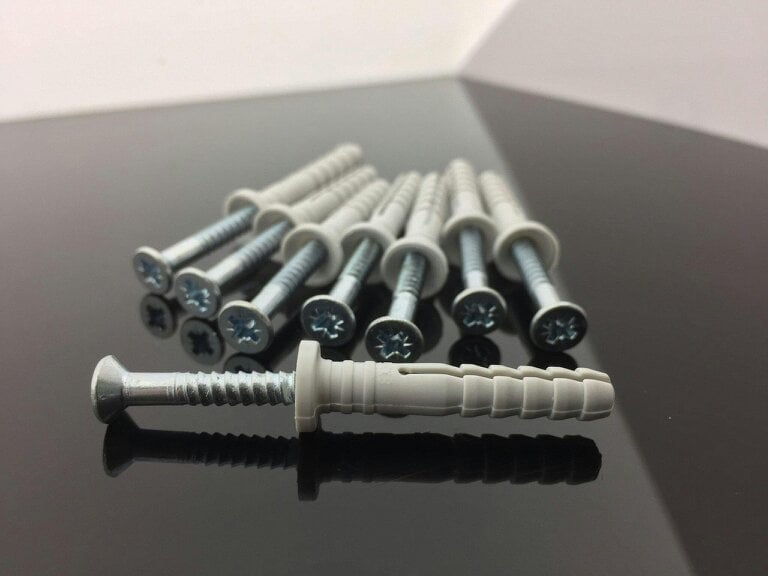

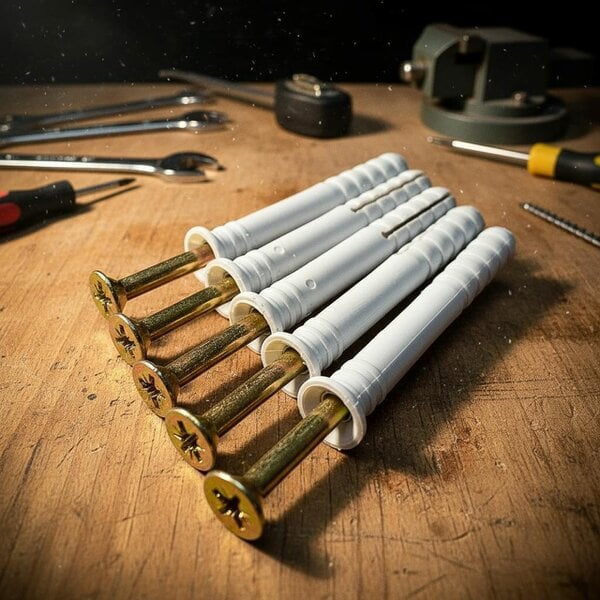

Fixaball Hammer Frame Fixings ZYP Pozi Countersunk Screw Plug

For masonry and frame fixing applications, Fixaball hammer frame fixings combine a ribbed nylon plug with a Pozidrive countersunk screw in a zinc yellow passivated finish. Available in 6mm, 8mm and 10mm diameters, these hammer-in fixings are suited to installation into concrete and solid masonry.

They are fitted into a pre-drilled hole by striking the head into place, with the option to tighten or loosen further using a Pozidrive driver. Suitable for use with timber, brick, block, concrete and UPVC.

Key features

• Available in 6mm, 8mm and 10mm diameters
• Ribbed nylon plug
• Pozidrive countersunk screw
• Zinc yellow passivated finish
• Hammer-in installation
• Suitable for timber, brick, block, concrete and UPVC

Specifications

• Installation method: strike into a pre-drilled hole, then tighten or loosen with a Pozidrive driver if required
• Base materials: concrete and solid masonry
• Available screw sizes: 5 x 30, 5 x 40, 5 x 50, 6 x 40, 6 x 50, 6 x 60, 6 x 70, 8 x 60, 8 x 80, 8 x 100, 8 x 120, 8 x 140, 10 x 100, 10 x 160

Available options

• 5mm x 30mm
• 5mm x 40mm
• 5mm x 50mm
• 6mm x 40mm
• 6mm x 50mm
• 6mm x 60mm
• 6mm x 70mm
• 8mm x 60mm
• 8mm x 80mm
• 8mm x 100mm
• 8mm x 120mm
• 8mm x 140mm
• 10mm x 100mm
• 10mm x 160mm

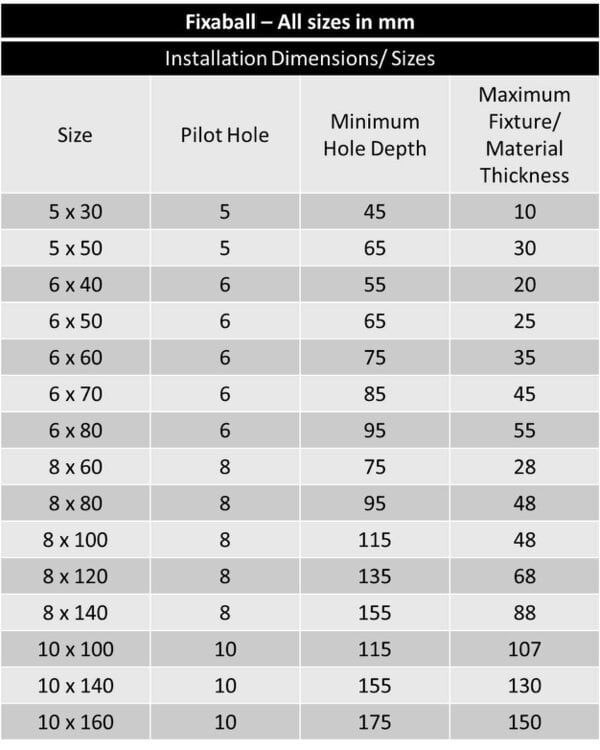

Sizing

• 5 x 30: Pilot hole 5mm, minimum hole depth 45mm, maximum fixture/material thickness 10mm
• 5 x 50: Pilot hole 5mm, minimum hole depth 65mm, maximum fixture/material thickness 30mm
• 6 x 40: Pilot hole 6mm, minimum hole depth 55mm, maximum fixture/material thickness 20mm
• 6 x 50: Pilot hole 6mm, minimum hole depth 65mm, maximum fixture/material thickness 25mm
• 6 x 60: Pilot hole 6mm, minimum hole depth 75mm, maximum fixture/material thickness 35mm
• 6 x 70: Pilot hole 6mm, minimum hole depth 85mm, maximum fixture/material thickness 45mm
• 6 x 80: Pilot hole 6mm, minimum hole depth 95mm, maximum fixture/material thickness 55mm
• 8 x 60: Pilot hole 8mm, minimum hole depth 75mm, maximum fixture/material thickness 28mm
• 8 x 80: Pilot hole 8mm, minimum hole depth 95mm, maximum fixture/material thickness 48mm
• 8 x 100: Pilot hole 8mm, minimum hole depth 115mm, maximum fixture/material thickness 48mm
• 8 x 120: Pilot hole 8mm, minimum hole depth 135mm, maximum fixture/material thickness 68mm
• 8 x 140: Pilot hole 8mm, minimum hole depth 155mm, maximum fixture/material thickness 88mm
• 10 x 100: Pilot hole 10mm, minimum hole depth 115mm, maximum fixture/material thickness 107mm
• 10 x 140: Pilot hole 10mm, minimum hole depth 155mm, maximum fixture/material thickness 130mm
• 10 x 160: Pilot hole 10mm, minimum hole depth 175mm, maximum fixture/material thickness 150mm

Rackhams Reference : 4H5YF4FRCU
