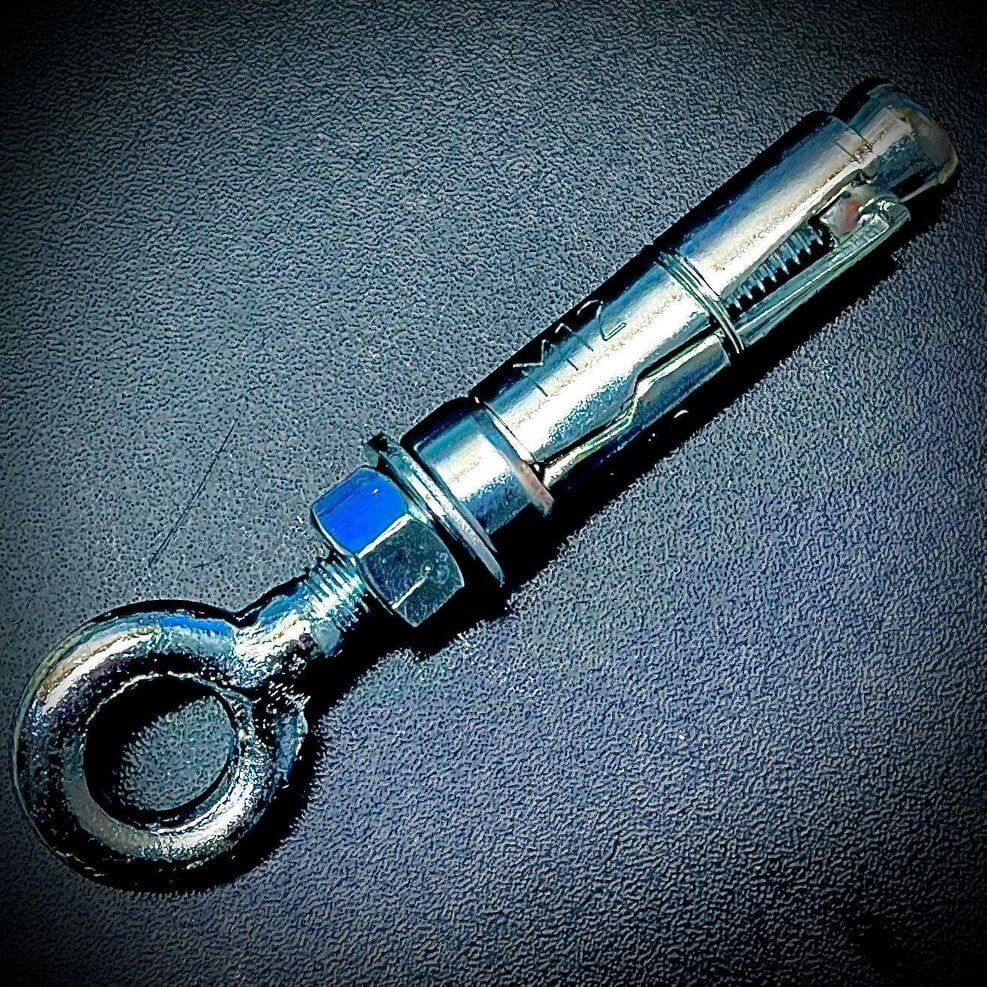

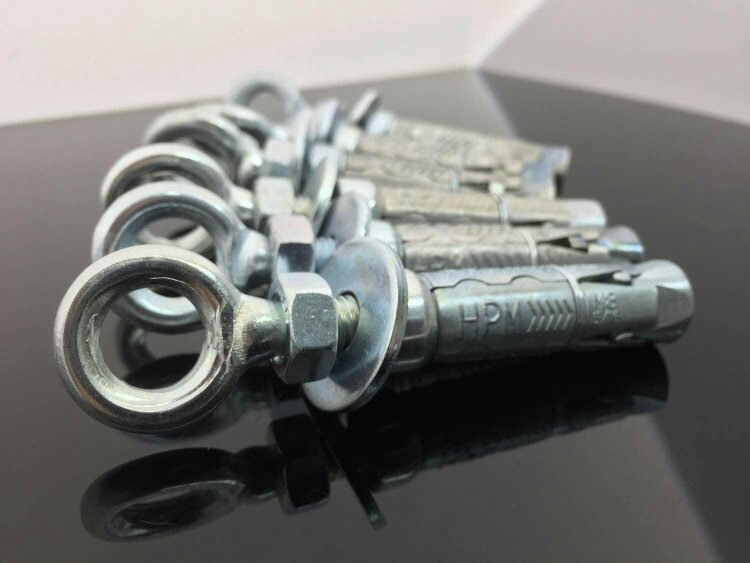

Fixaball M10 Eye Bolt High Tensile Masonry Shield Anchor Zinc

For masonry fixings in brick, block and non-porous stone, this Fixaball M10 eye bolt shield anchor provides a heavy duty expansion fixing. It features an M10 thread and a 17mm eye diameter, with zinc finish and high tensile construction stated in the source.

Installation is straightforward: drill the correct size hole, clean the hole, insert the anchor, then tighten the nut to set the expansion anchor. Suitable performance figures and measurements are based on correct installation.

Key features

• M10 thread diameter
• 17mm eye diameter
• Zinc finish
• High tensile construction
• Suitable for masonry, brick, block and non-porous stone

Specifications

• Hole diameter: 16
• Hole depth: 65
• Fixture/material clearance hole: 11 – 12
• Center spacing between holes: 180
• Minimum distance from edge of material: 120
• Tensile/pull load: 6. 2 k/N (tonnes)
• Shear load: 6. 1 k/N (tonnes)
• Torque to tighten: 27 Nm

Safety information

All specifications are true with correct installation.
