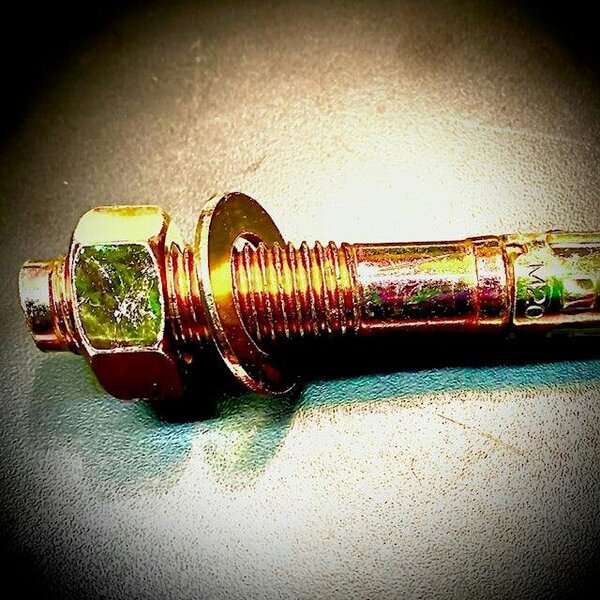

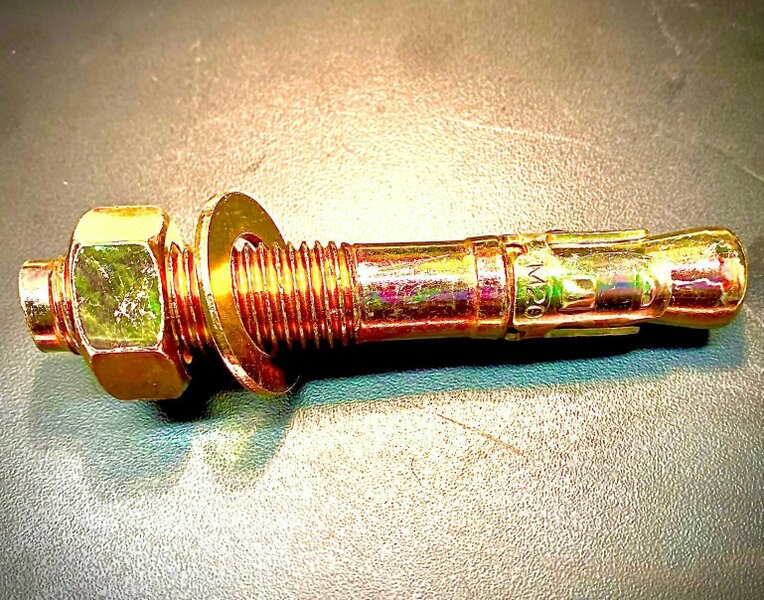

Fixaball M10 Throughbolt Anchor Heavy Duty Masonry Concrete ZYP

For secure fixing into non-cracked concrete, masonry and non-porous stone, this Fixaball M10 throughbolt anchor is supplied in a zinc yellow passivated finish. Also known as a rag bolt, it is suited to applications where the fixing passes through the fixture once positioned, with the hole matching the fixing diameter.

The cold formed body provides consistent dimensional accuracy and material stability. It is suitable for reduced embedment where contact with rebars or reinforcement cages needs to be avoided.

Available options

• 65mm
• 75mm
• 90mm
• 100mm
• 120mm
• 150mm
• 175mm

Key features

• Diameter: M10
• Zinc yellow passivated finish
• Suitable for non-cracked concrete, masonry, brick, blocks and non-porous stone
• Cold formed body for consistent dimensional accuracy and material stability
• Suitable for reduced embedment

Specifications

• Installation temperature range for base material: -5 / + 40 ºC
• 80 ºC for a short period of time
• Drilling must be carried out to the specified minimum depth and diameter, perpendicular to the base material surface

Sizing

• Anchor hole size: 10mm
• Anchor length: 65mm
• Anchor length: 75mm
• Anchor length: 90mm
• Anchor length: 100mm
• Anchor length: 120mm
• Anchor length: 150mm
• Anchor length: 175mm

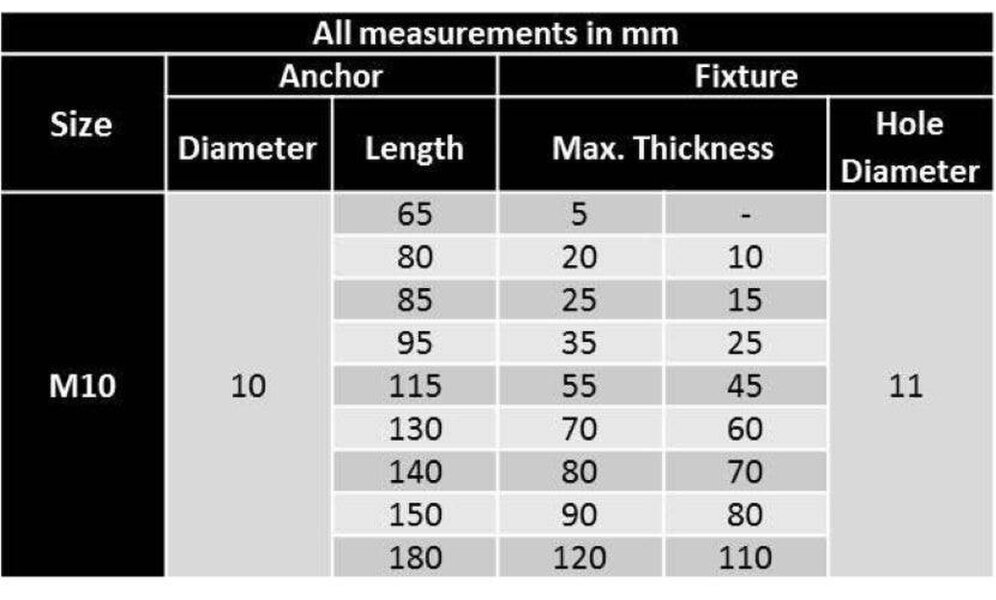

• M10: diameter 10, length 65, max. thickness 5, hole diameter 11
• M10: length 80, max. thickness 20, hole diameter 10
• M10: length 85, max. thickness 25, hole diameter 15
• M10: length 95, max. thickness 35, hole diameter 25
• M10: length 115, max. thickness 55, hole diameter 45
• M10: length 130, max. thickness 70, hole diameter 60
• M10: length 140, max. thickness 80, hole diameter 70
• M10: length 150, max. thickness 90, hole diameter 80
• M10: length 180, max. thickness 120, hole diameter 110

Safety information

• Check the concrete strength before installation to ensure its class or standard is suitable.
• The concrete base must be compact and porosity insignificant.
• Minimum installation depth values must always be respected for anchor depth, anchor-to-anchor distances and anchor-to-edge distances.
• Take special care when drilling near reinforcement areas to avoid damage.
• When temperature is below 0ºC, ensure water does not seep into the hole, as this could cause subsequent cracks in the concrete due to ice pressure.
• Do not apply any intermediate layer between the material to be fixed and the washer, including sealing products.
• Apply the specified torque with a torque wrench.
