Fixaball M12 Socket Cap Allen Screw Bolt 12.9 Self Colour

For high-tensile fastening applications, the Fixaball M12 socket cap screw bolt is manufactured from Grade 12.9 steel with a self colour black finish. This cylindrical head fastener features an Allen hexagon socket and a metric fine M12 x 1.75mm pitch thread.

Made to DIN 912 and ISO 4762, it is offered in a range of lengths, with shorter sizes listed as fully threaded and longer sizes as partially threaded. Head dimensions are 18mm diameter and 12mm height, and it requires a 10mm Allen key. Bolt lengths do not include the head.

Key features

• M12 socket cap screw bolt
• High tensile steel, Grade 12.9
• Self colour / black finish
• Metric fine thread: M12 x 1.75mm pitch
• Standard: DIN 912, ISO 4762

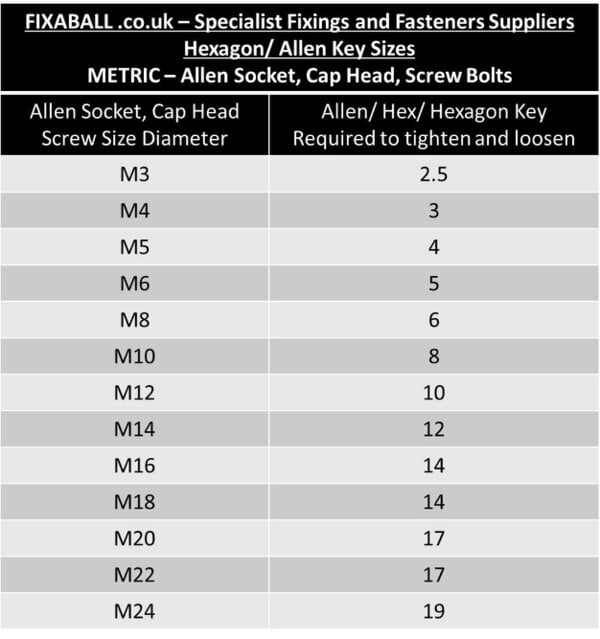

• Allen key size: 10mm

Specifications

• Head diameter: 18mm
• Head height: 12mm
• Fully threaded lengths: 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
• Partially threaded lengths: 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm, 110mm, 120mm, 140mm, 150mm, 160mm, 170mm, 180mm, 190mm, 200mm, 220mm, 230mm, 240mm, 250mm
• Corrosion resistance: low, without further surface treatment
• Typical application: no exposure to moisture
• Often greased / oiled

Available options

• 14mm length, fully threaded
• 15mm length, fully threaded
• 16mm length, fully threaded
• 18mm length, fully threaded
• 20mm length, fully threaded
• 22mm length, fully threaded
• 25mm length, fully threaded
• 30mm length, fully threaded
• 35mm length, fully threaded
• 40mm length, fully threaded
• 45mm length, fully threaded
• 50mm length, fully threaded
• 55mm length, partially threaded
• 60mm length, partially threaded
• 65mm length, partially threaded
• 70mm length, partially threaded
• 75mm length, partially threaded
• 80mm length, partially threaded
• 85mm length, partially threaded
• 90mm length, partially threaded
• 95mm length, partially threaded
• 100mm length, partially threaded
• 110mm length, partially threaded
• 120mm length, partially threaded
• 140mm length, partially threaded
• 150mm length, partially threaded
• 160mm length, partially threaded
• 170mm length, partially threaded
• 180mm length, partially threaded
• 190mm length, partially threaded
• 200mm length, partially threaded
• 220mm length, partially threaded
• 230mm length, partially threaded
• 240mm length, partially threaded
• 250mm length, partially threaded

Sizing

• 14mm
• 15mm
• 16mm
• 18mm
• 20mm
• 22mm
• 25mm
• 30mm
• 35mm
• 40mm
• 45mm
• 50mm
• 55mm
• 60mm
• 65mm
• 70mm
• 75mm
• 80mm
• 85mm
• 90mm
• 95mm
• 100mm
• 110mm
• 120mm
• 140mm
• 150mm
• 160mm
• 170mm
• 180mm
• 190mm
• 200mm
• 220mm
• 230mm
• 240mm
• 250mm

Rackhams Reference : G2W9I1SX34
