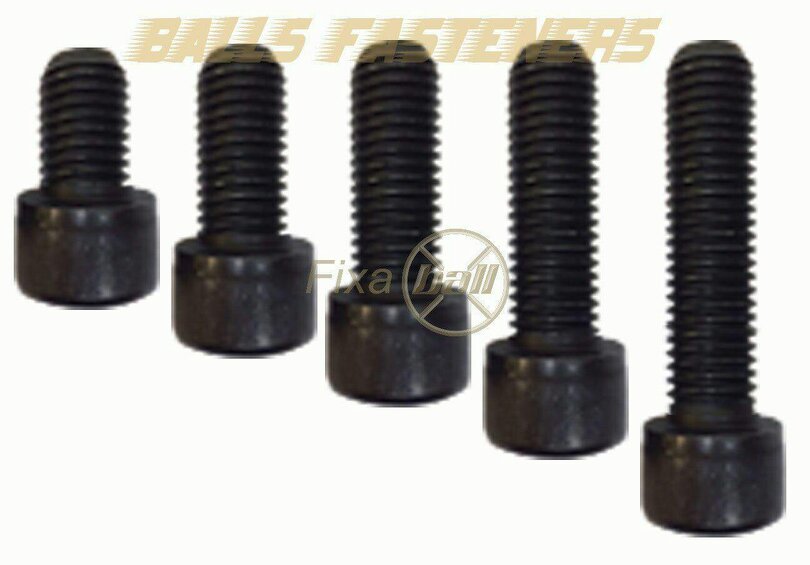

Fixaball M4 Socket Cap Allen Screw Bolt 12.9 Self Colour

For fastening applications that require an M4 socket cap fixing, this Fixaball cap head screw/bolt is made from high tensile steel Grade 12.9 with a self colour black finish. It features a cylindrical head with an Allen/hexagon socket and a metric coarse M4 x 0.7mm pitch thread.

Head diameter is 7.2mm, head height is 3.8mm, and it takes a 3mm Allen key. Manufactured to DIN 912 and ISO 4762, this fixing is available in a wide range of lengths, with bolt length measured excluding the head.

Key features

• High tensile steel Grade 12.9
• Self colour/black finish
• Metric coarse thread: M4 x 0.7mm pitch
• Cylindrical cap head with Allen/hexagon socket
• Standard: DIN 912
• ISO 4762

Available options

• 5mm, fully threaded
• 6mm, fully threaded
• 8mm, fully threaded
• 10mm, fully threaded
• 12mm, fully threaded
• 14mm, fully threaded
• 15mm, fully threaded
• 16mm, fully threaded
• 18mm, fully threaded
• 20mm, fully threaded
• 22mm, fully threaded
• 25mm, fully threaded
• 30mm, partially threaded
• 35mm, partially threaded
• 40mm, partially threaded
• 45mm, partially threaded
• 50mm, partially threaded
• 55mm, partially threaded
• 60mm, partially threaded
• 65mm, partially threaded
• 70mm, partially threaded
• 75mm, partially threaded
• 80mm, partially threaded
• 85mm, partially threaded
• 90mm, partially threaded
• 100mm, partially threaded
• 110mm, partially threaded
• 120mm, partially threaded

Specifications

• Thread type: metric coarse
• Thread size: M4 x 0.7mm pitch
• Head diameter: 7.2mm
• Head height: 3.8mm
• Allen key size: 3mm
• Standard: DIN 912
• ISO 4762

Sizing

Bolt lengths do not include the head.

Safety information

• Self colour Grade 12.9 steel has low corrosion resistance without further surface treatment.
• Suitable where there is no exposure to moisture.

Rackhams Reference : Q72LNG3K4J
